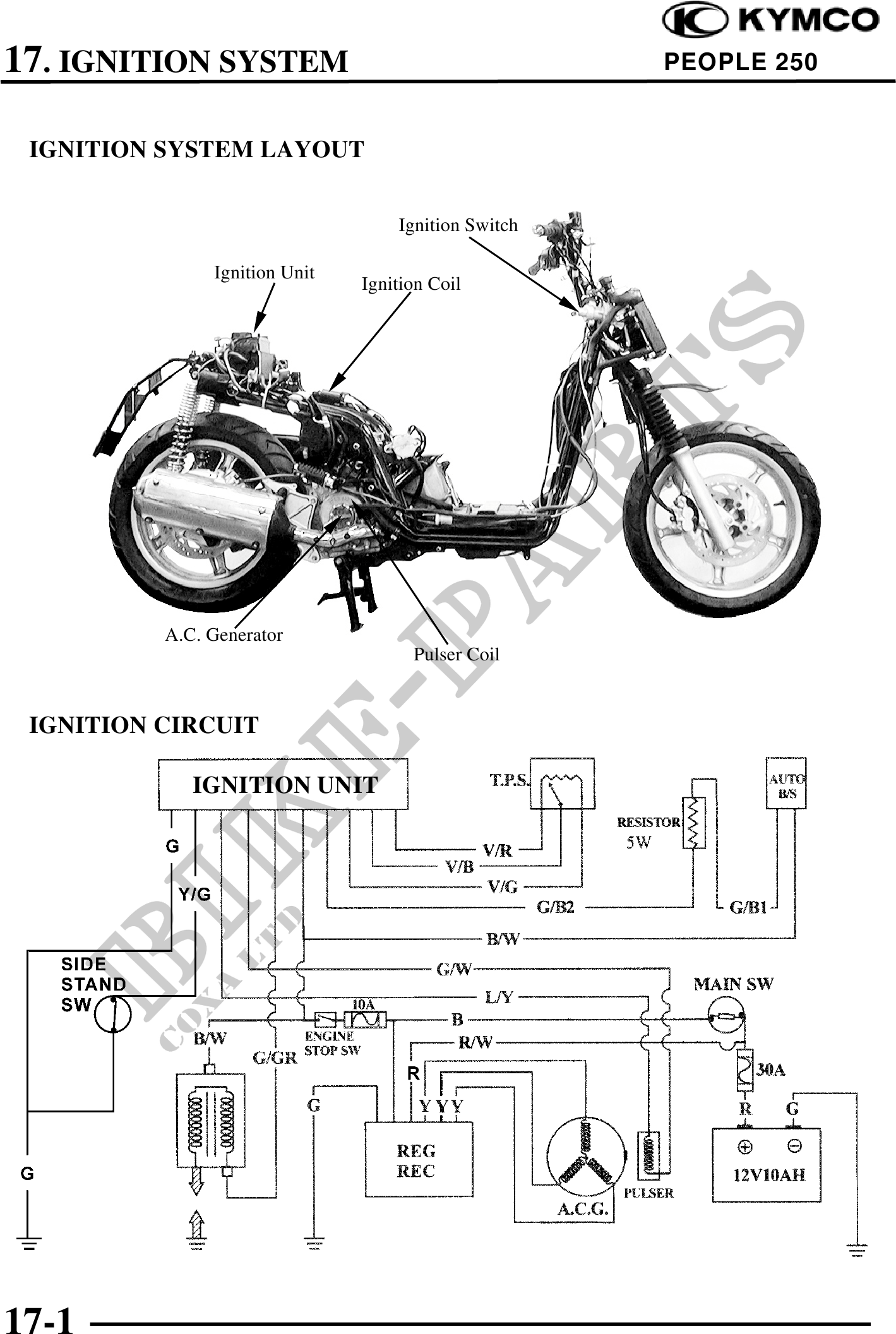

          17. IGNITION SYSTEM                                  PEOPLE 250


 IGNITION SYSTEM LAYOUT


                                   Ignition Switch

               Ignition Unit
                               Ignition Coil




          A.C. Generator
                                     Pulser Coil


 IGNITION CIRCUIT

             IGNITION UNIT
