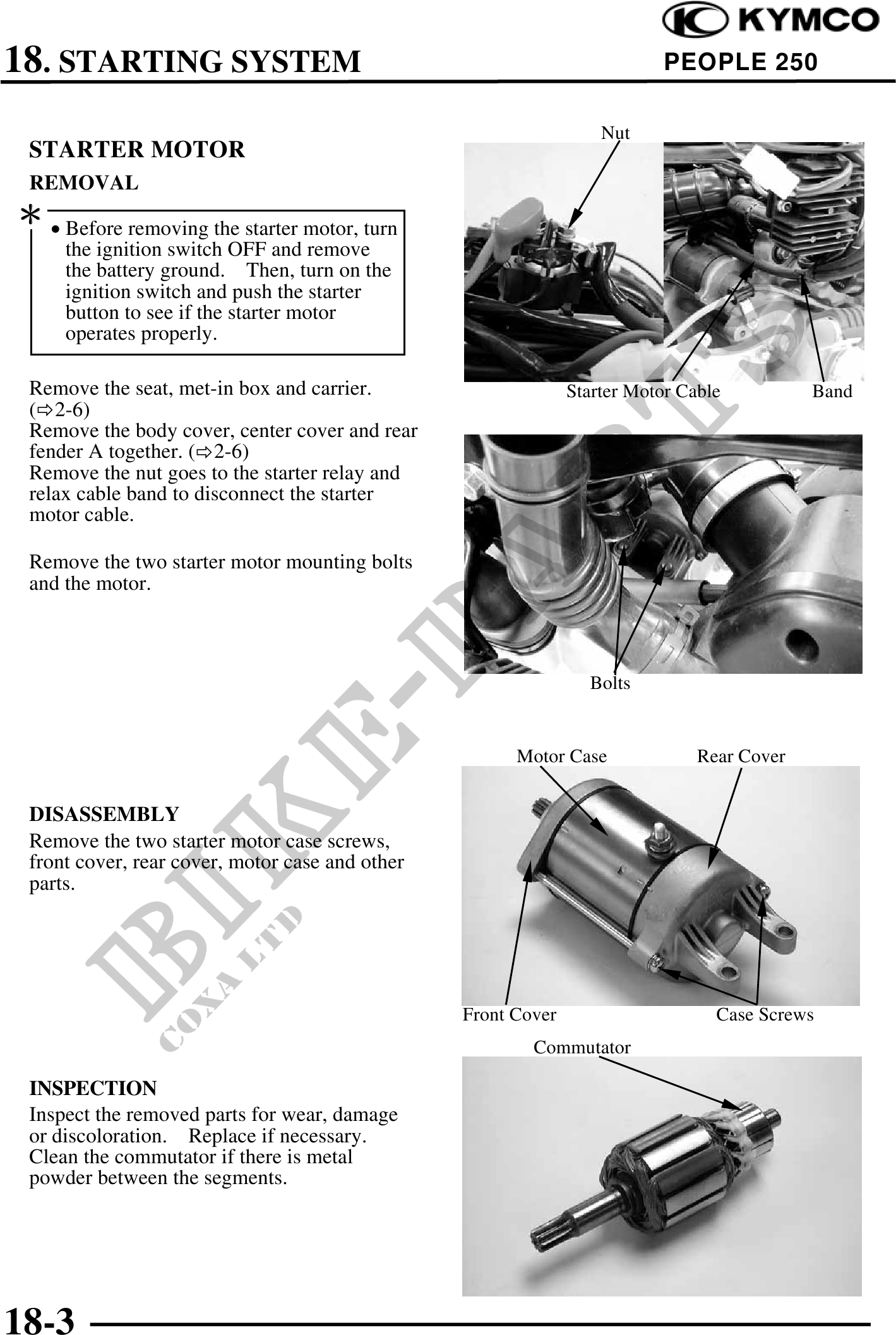

          18. STARTING SYSTEM                                                       PEOPLE 250

                                                                   Nut
 STARTER MOTOR
 REMOVAL
 · Before removing the starter motor, turn
     the ignition switch OFF and remove
     the battery ground. Then, turn on the
     ignition switch and push the starter
     button to see if the starter motor
     operates properly.

 Remove the seat, met-in box and carrier.                      Starter Motor Cable          Band
 ( 2-6)
 Remove the body cover, center cover and rear
 fender A together. ( 2-6)
 Remove the nut goes to the starter relay and
 relax cable band to disconnect the starter
 motor cable.

 Remove the two starter motor mounting bolts
 and the motor.



                                                                 Bolts


                                                       Motor Case              Rear Cover


 DISASSEMBLY
 Remove the two starter motor case screws,
 front cover, rear cover, motor case and other
 parts.




                                                 Front Cover                     Case Screws
                                                         Commutator

 INSPECTION
 Inspect the removed parts for wear, damage
 or discoloration. Replace if necessary.
 Clean the commutator if there is metal
 powder between the segments.




18-3
