          1. GENERAL INFORMATION                                            PEOPLE/PEOPLE S 250

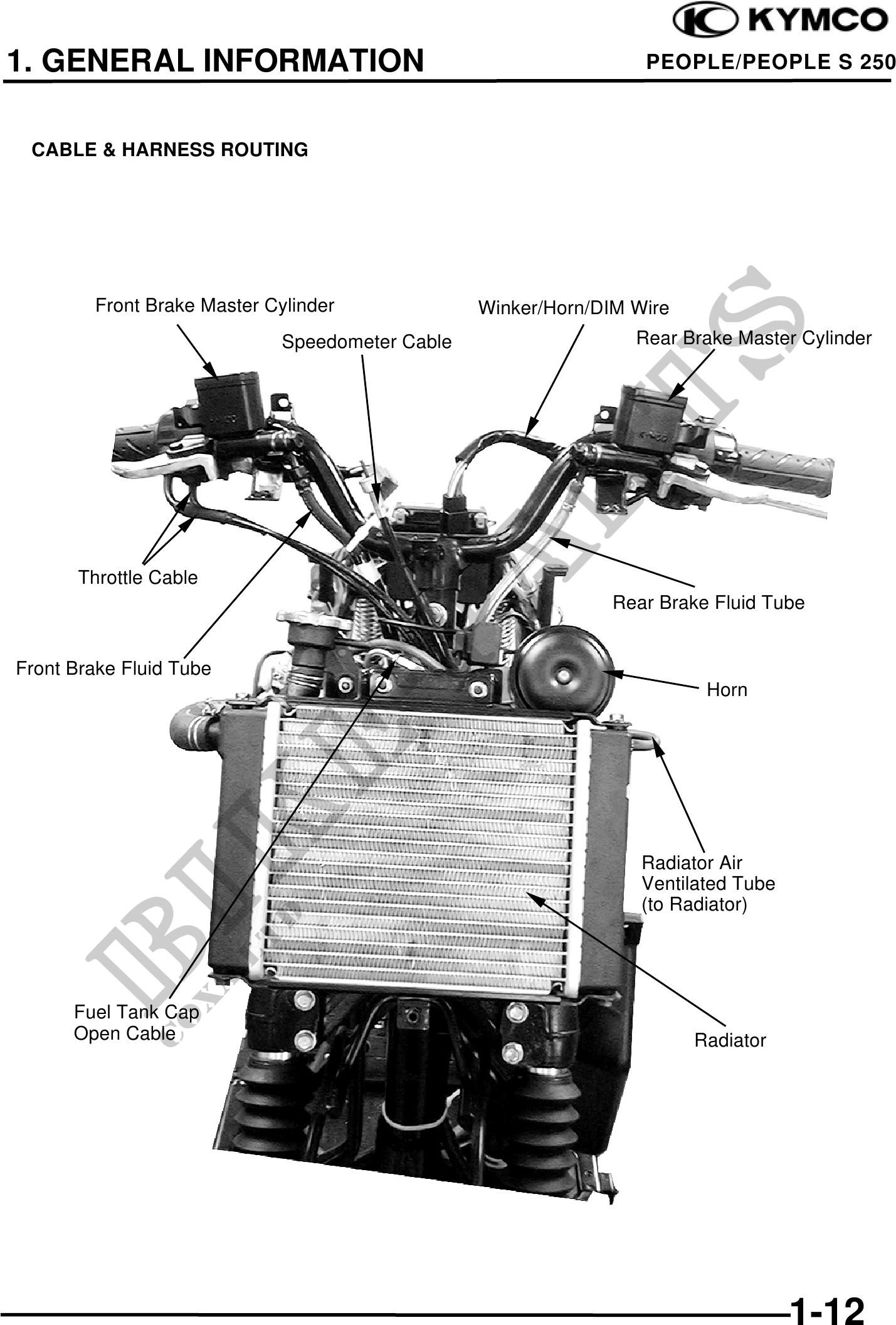

 CABLE & HARNESS ROUTING




        Front Brake Master Cylinder              Winker/Horn/DIM Wire
                             Speedometer Cable                   Rear Brake Master Cylinder




       Throttle Cable
                                                               Rear Brake Fluid Tube


Front Brake Fluid Tube
                                                                         Horn




                                                                  Radiator Air
                                                                  Ventilated Tube
                                                                  (to Radiator)




      Fuel Tank Cap
      Open Cable                                                        Radiator




                                                                                    1-12
