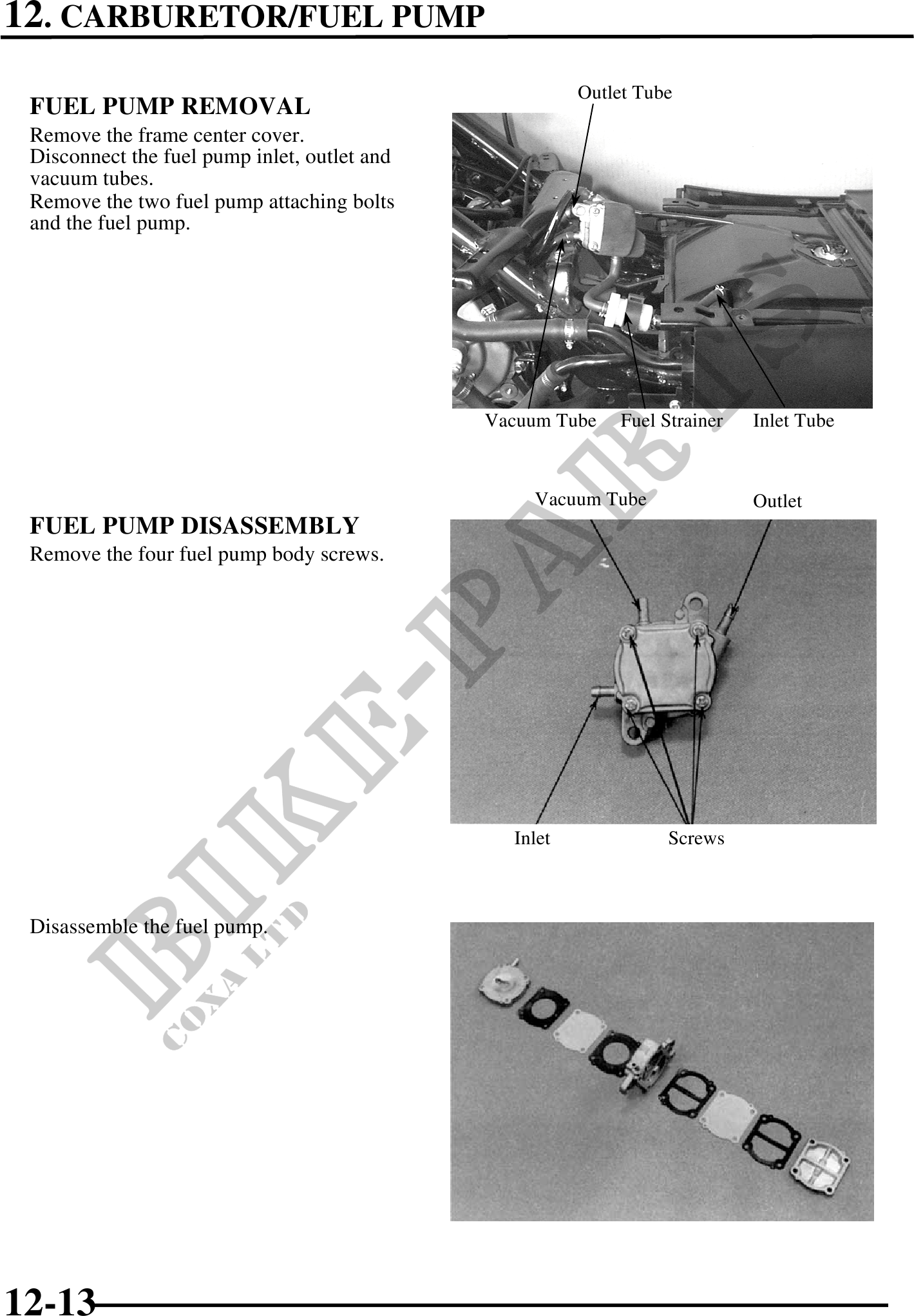

12. CARBURETOR/FUEL PUMP
Outlet Tube
FUEL PUMP REMOVAL
Remove the frame center cover.
Disconnect the fuel pump inlet, outlet and
vacuum tubes.
Remove the two fuel pump attaching bolts
and the fuel pump.
Vacuum Tube Fuel Strainer Inlet Tube
Vacuum Tube Outlet
FUEL PUMP DISASSEMBLY
Remove the four fuel pump body screws.
Inlet Screws
Disassemble the fuel pump.
12-13
