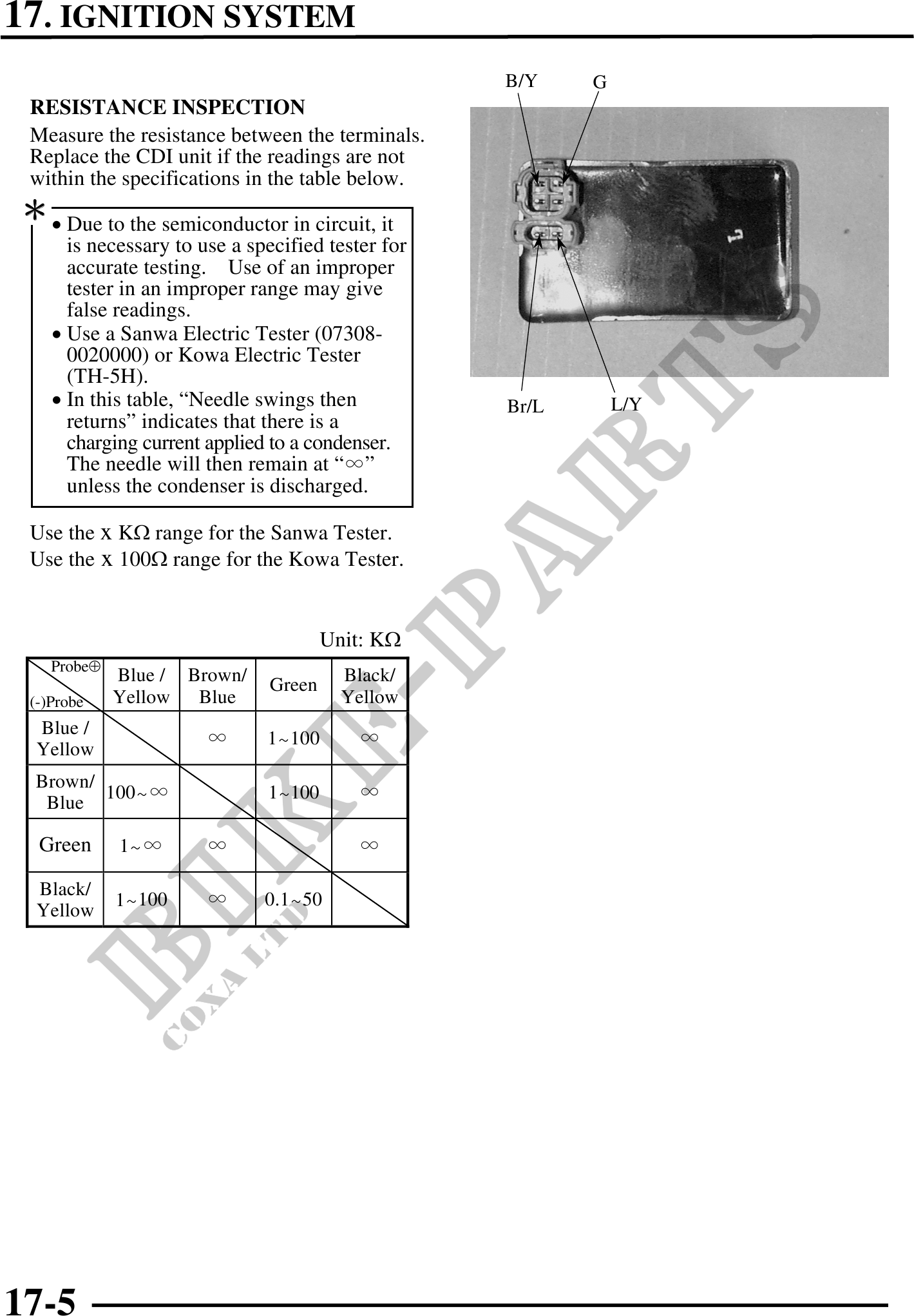

17. IGNITION SYSTEM
B/Y G
RESISTANCE INSPECTION
Measure the resistance between the terminals.
Replace the CDI unit if the readings are not
within the specifications in the table below.
· Due to the semiconductor in circuit, it
is necessary to use a specified tester for
accurate testing. Use of an improper
tester in an improper range may give
false readings.
· Use a Sanwa Electric Tester (07308-
0020000) or Kowa Electric Tester
(TH-5H).
· In this table, "Needle swings then Br/L L/Y
returns" indicates that there is a
charging current applied to a condenser.
The needle will then remain at ""
unless the condenser is discharged.
Use the x K range for the Sanwa Tester.
Use the x 100 range for the Kowa Tester.
Unit: K
Probe
Blue / Brown/ Green Black/
(-)Probe Yellow Blue Yellow
Blue /
1~100
Yellow
Brown/
100~ 1~100
Blue
Green 1~
Black/
1~100 0.1~50
Yellow
17-5
