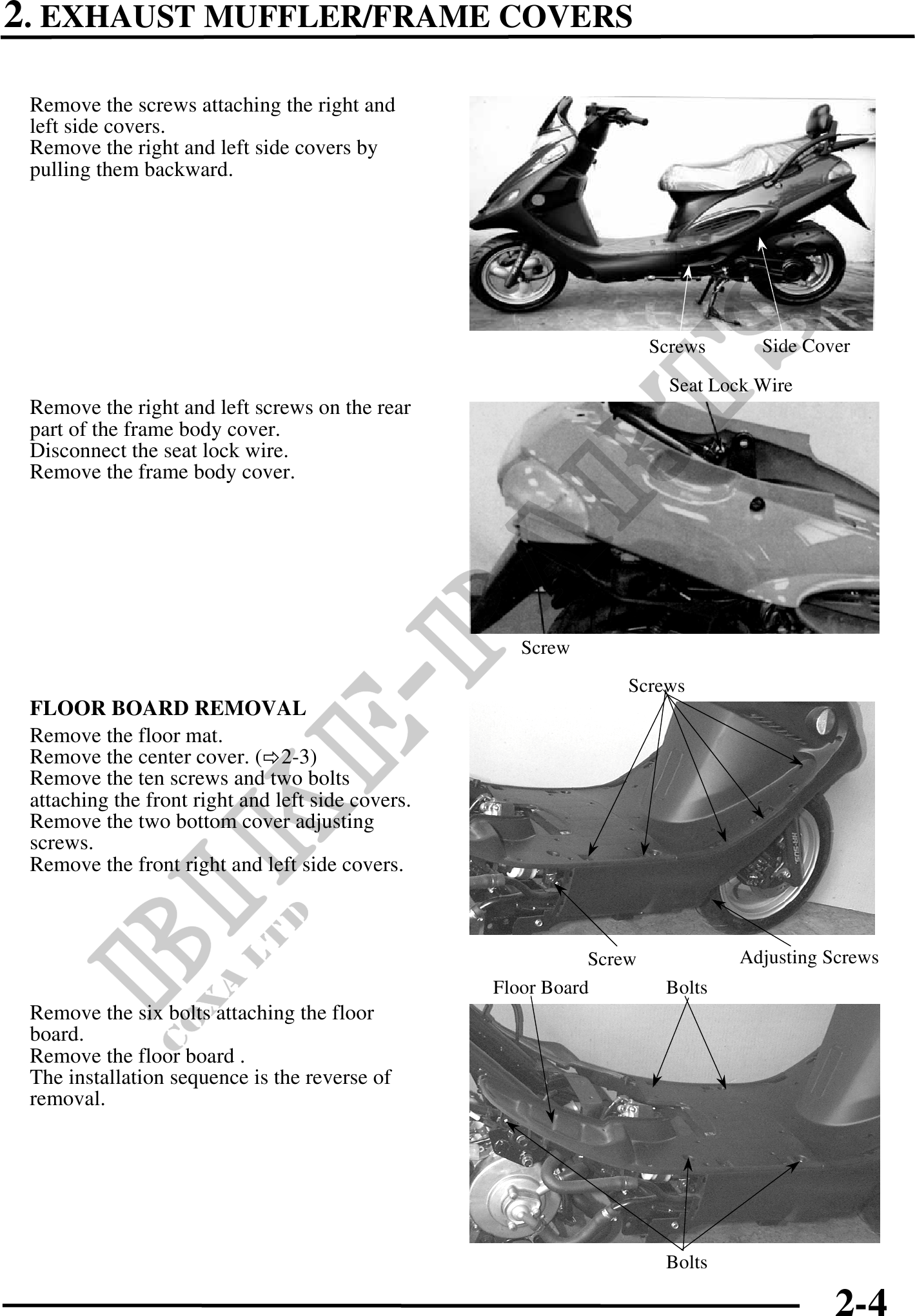

2. EXHAUST MUFFLER/FRAME COVERS
Remove the screws attaching the right and
left side covers.
Remove the right and left side covers by
pulling them backward.
Screws Side Cover
Seat Lock Wire
Remove the right and left screws on the rear
part of the frame body cover.
Disconnect the seat lock wire.
Remove the frame body cover.
Screw
Screws
FLOOR BOARD REMOVAL
Remove the floor mat.
Remove the center cover. ( 2-3)
Remove the ten screws and two bolts
attaching the front right and left side covers.
Remove the two bottom cover adjusting
screws.
Remove the front right and left side covers.
Screw Adjusting Screws
Floor Board Bolts
Remove the six bolts attaching the floor
board.
Remove the floor board .
The installation sequence is the reverse of
removal.
Bolts
2-4
