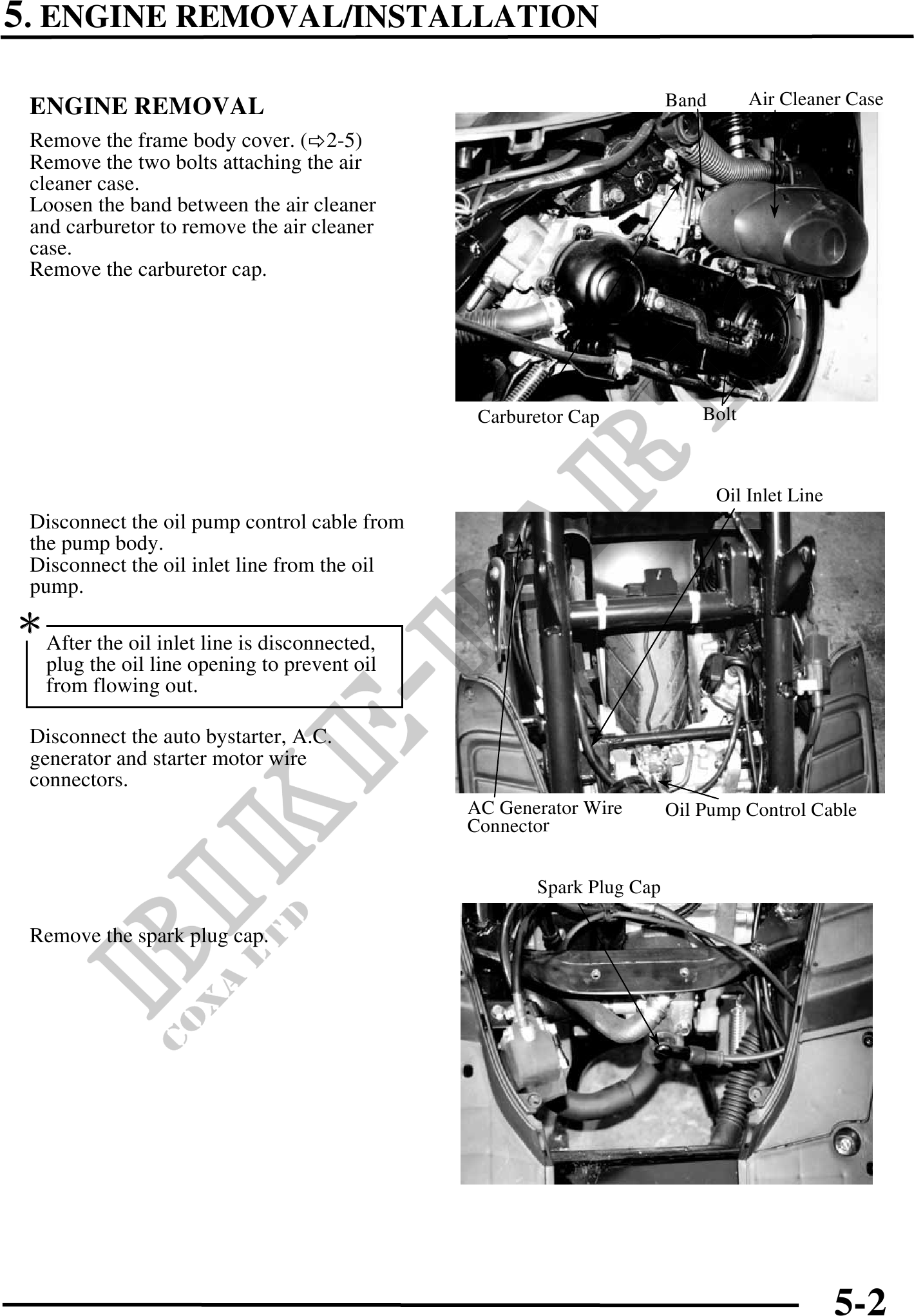

5. ENGINE REMOVAL/INSTALLATION
ENGINE REMOVAL Band Air Cleaner Case
Remove the frame body cover. ( 2-5)
Remove the two bolts attaching the air
cleaner case.
Loosen the band between the air cleaner
and carburetor to remove the air cleaner
case.
Remove the carburetor cap.
Carburetor Cap Bolt
Oil Inlet Line
Disconnect the oil pump control cable from
the pump body.
Disconnect the oil inlet line from the oil
pump.
After the oil inlet line is disconnected,
plug the oil line opening to prevent oil
from flowing out.
Disconnect the auto bystarter, A.C.
generator and starter motor wire
connectors.
AC Generator Wire Oil Pump Control Cable
Connector
Spark Plug Cap
Remove the spark plug cap.
5-2
