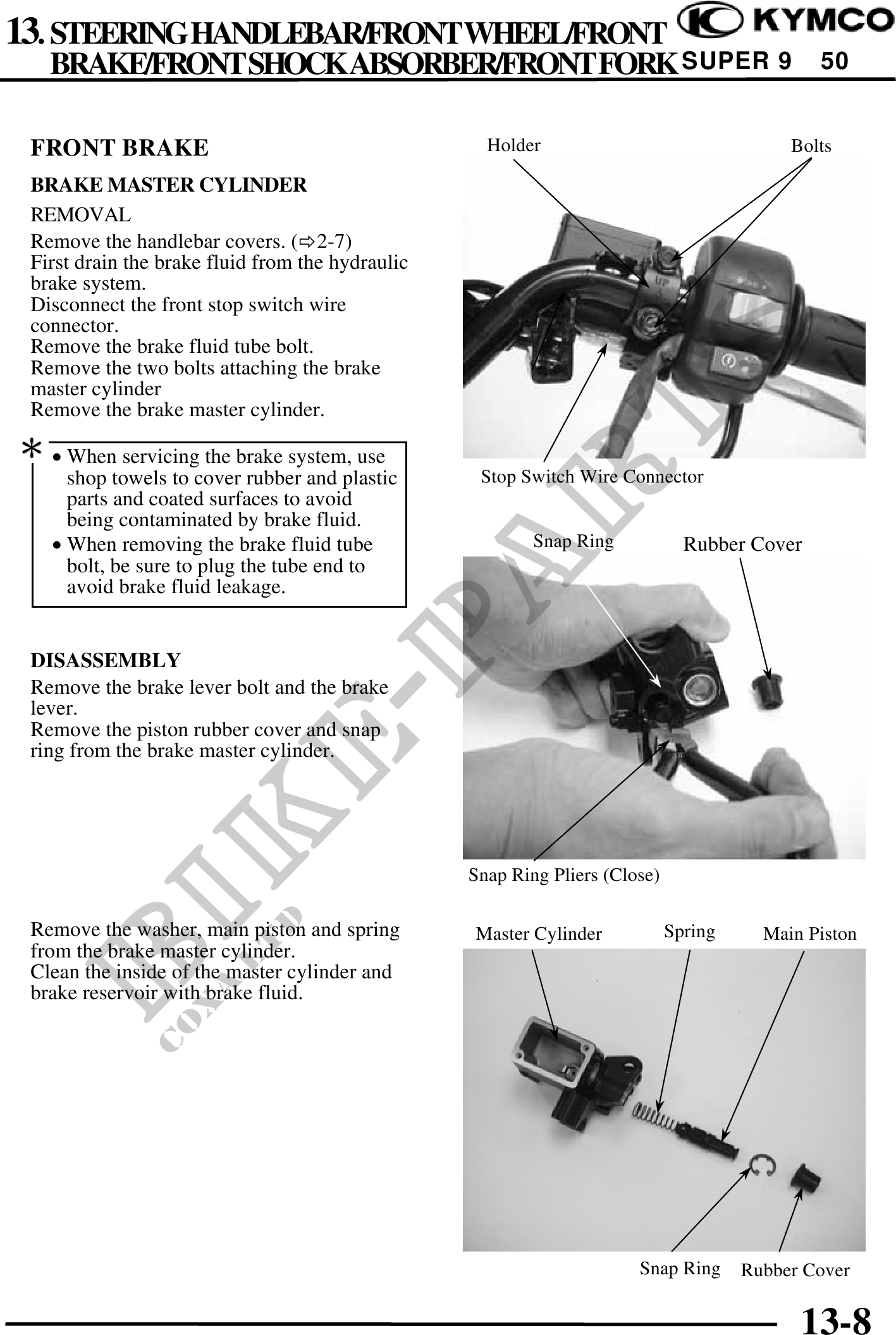

13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT
BRAKE/FRONTSHOCKABSORBER/FRONTFORK SUPER 9 50
FRONT BRAKE Holder Bolts
BRAKE MASTER CYLINDER
REMOVAL
Remove the handlebar covers. ( 2-7)
First drain the brake fluid from the hydraulic
brake system.
Disconnect the front stop switch wire
connector.
Remove the brake fluid tube bolt.
Remove the two bolts attaching the brake
master cylinder
Remove the brake master cylinder.
· When servicing the brake system, use
shop towels to cover rubber and plastic Stop Switch Wire Connector
parts and coated surfaces to avoid
being contaminated by brake fluid.
· When removing the brake fluid tube Snap Ring Rubber Cover
bolt, be sure to plug the tube end to
avoid brake fluid leakage.
DISASSEMBLY
Remove the brake lever bolt and the brake
lever.
Remove the piston rubber cover and snap
ring from the brake master cylinder.
Snap Ring Pliers (Close)
Remove the washer, main piston and spring Master Cylinder Spring Main Piston
from the brake master cylinder.
Clean the inside of the master cylinder and
brake reservoir with brake fluid.
Snap Ring Rubber Cover
13-8
