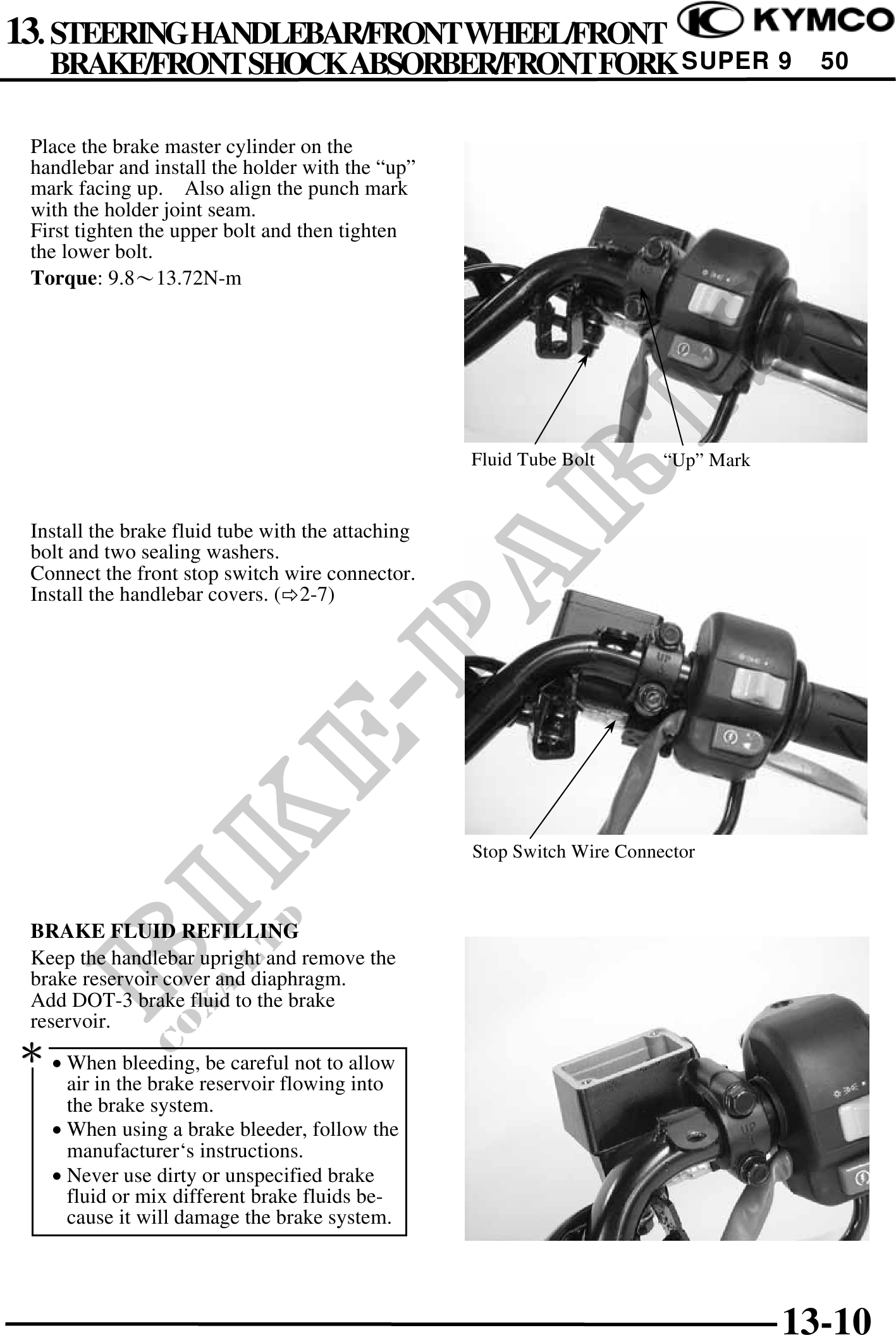

13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT
BRAKE/FRONTSHOCKABSORBER/FRONTFORK SUPER 9 50
Place the brake master cylinder on the
handlebar and install the holder with the "up"
mark facing up. Also align the punch mark
with the holder joint seam.
First tighten the upper bolt and then tighten
the lower bolt.
Torque: 9.813.72N-m
Fluid Tube Bolt "Up" Mark
Install the brake fluid tube with the attaching
bolt and two sealing washers.
Connect the front stop switch wire connector.
Install the handlebar covers. ( 2-7)
Stop Switch Wire Connector
BRAKE FLUID REFILLING
Keep the handlebar upright and remove the
brake reservoir cover and diaphragm.
Add DOT-3 brake fluid to the brake
reservoir.
· When bleeding, be careful not to allow
air in the brake reservoir flowing into
the brake system.
· When using a brake bleeder, follow the
manufacturer`s instructions.
· Never use dirty or unspecified brake
fluid or mix different brake fluids be-
cause it will damage the brake system.
13-10
