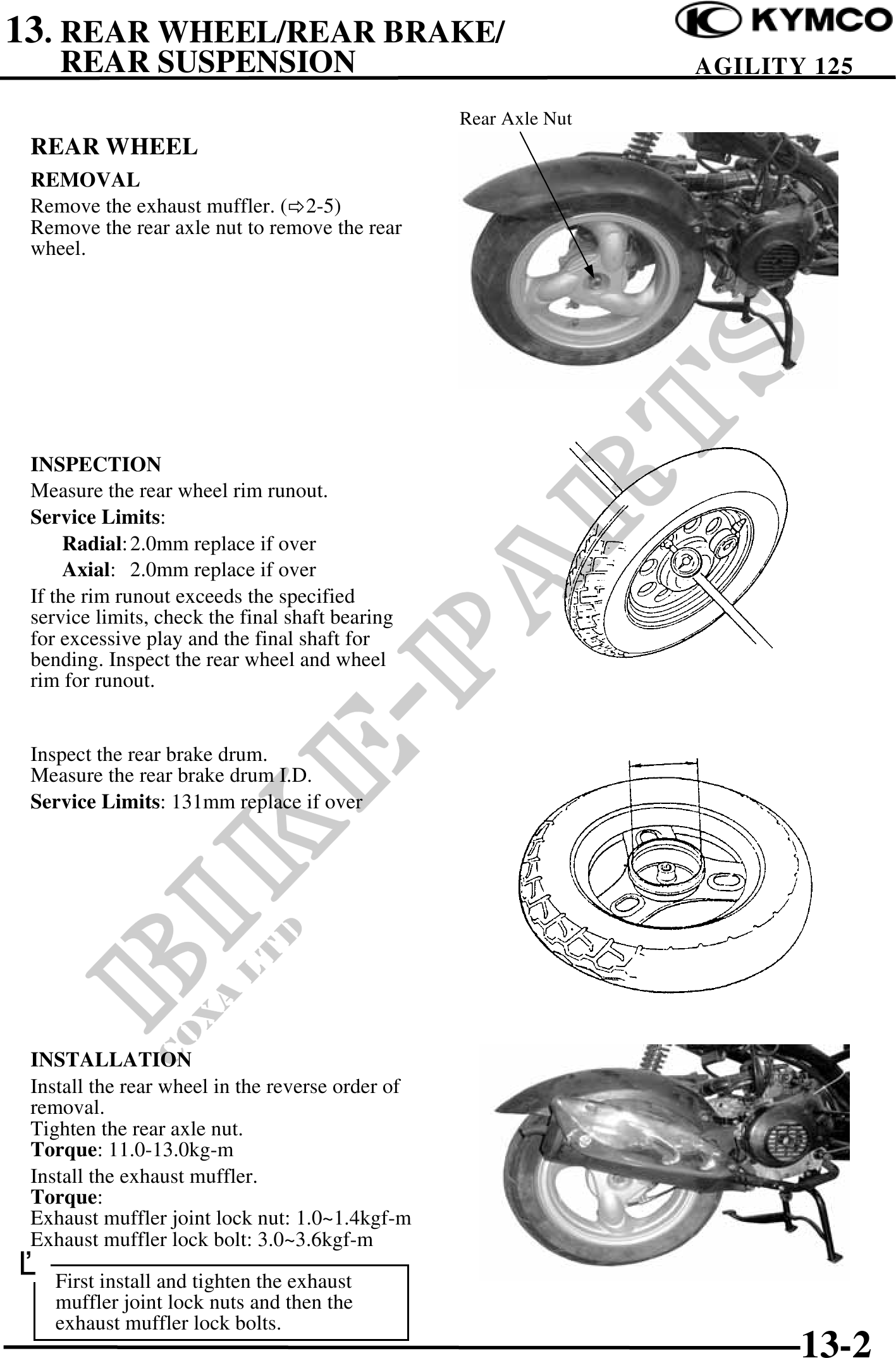

13. REAR WHEEL/REAR BRAKE/ REAR SUSPENSION AGILITY 125 Rear Axle Nut REAR WHEEL REMOVAL Remove the exhaust muffler. ( 2-5) Remove the rear axle nut to remove the rear wheel. INSPECTION Measure the rear wheel rim runout. Service Limits: Radial: 2.0mm replace if over Axial: 2.0mm replace if over If the rim runout exceeds the specified service limits, check the final shaft bearing for excessive play and the final shaft for bending. Inspect the rear wheel and wheel rim for runout. Inspect the rear brake drum. Measure the rear brake drum I.D. Service Limits: 131mm replace if over INSTALLATION Install the rear wheel in the reverse order of removal. Tighten the rear axle nut. Torque: 11.0-13.0kg-m Install the exhaust muffler. Torque: Exhaust muffler joint lock nut: 1.0~1.4kgf-m Exhaust muffler lock bolt: 3.0~3.6kgf-m First install and tighten the exhaust muffler joint lock nuts and then the exhaust muffler lock bolts. 13-2
