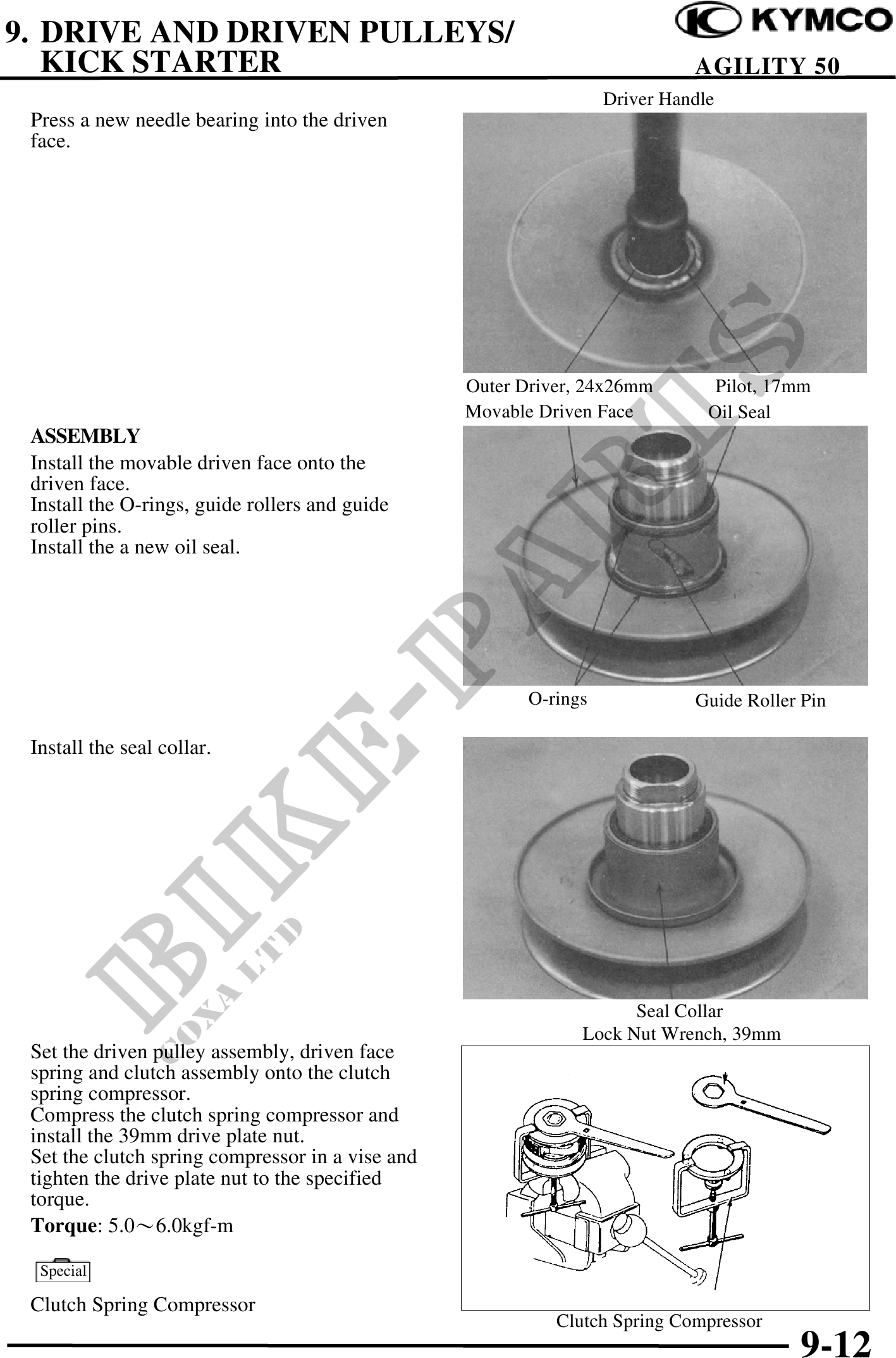

          9. DRIVE AND DRIVEN PULLEYS/
   KICK STARTER                                                              AGILITY 50
                                                                   Driver Handle
 Press a new needle bearing into the driven
 face.




                                                  Outer Driver, 24x26mm         Pilot, 17mm
                                                  Movable Driven Face          Oil Seal
 ASSEMBLY
 Install the movable driven face onto the
 driven face.
 Install the O-rings, guide rollers and guide
 roller pins.
 Install the a new oil seal.




                                                         O-rings             Guide Roller Pin

 Install the seal collar.




                                                                     Seal Collar
                                                               Lock Nut Wrench, 39mm
 Set the driven pulley assembly, driven face
 spring and clutch assembly onto the clutch
 spring compressor.
 Compress the clutch spring compressor and
 install the 39mm drive plate nut.
 Set the clutch spring compressor in a vise and
 tighten the drive plate nut to the specified
 torque.
 Torque: 5.06.0kgf-m

  Special

 Clutch Spring Compressor
                                                            Clutch Spring Compressor
                                                                                         9-12
