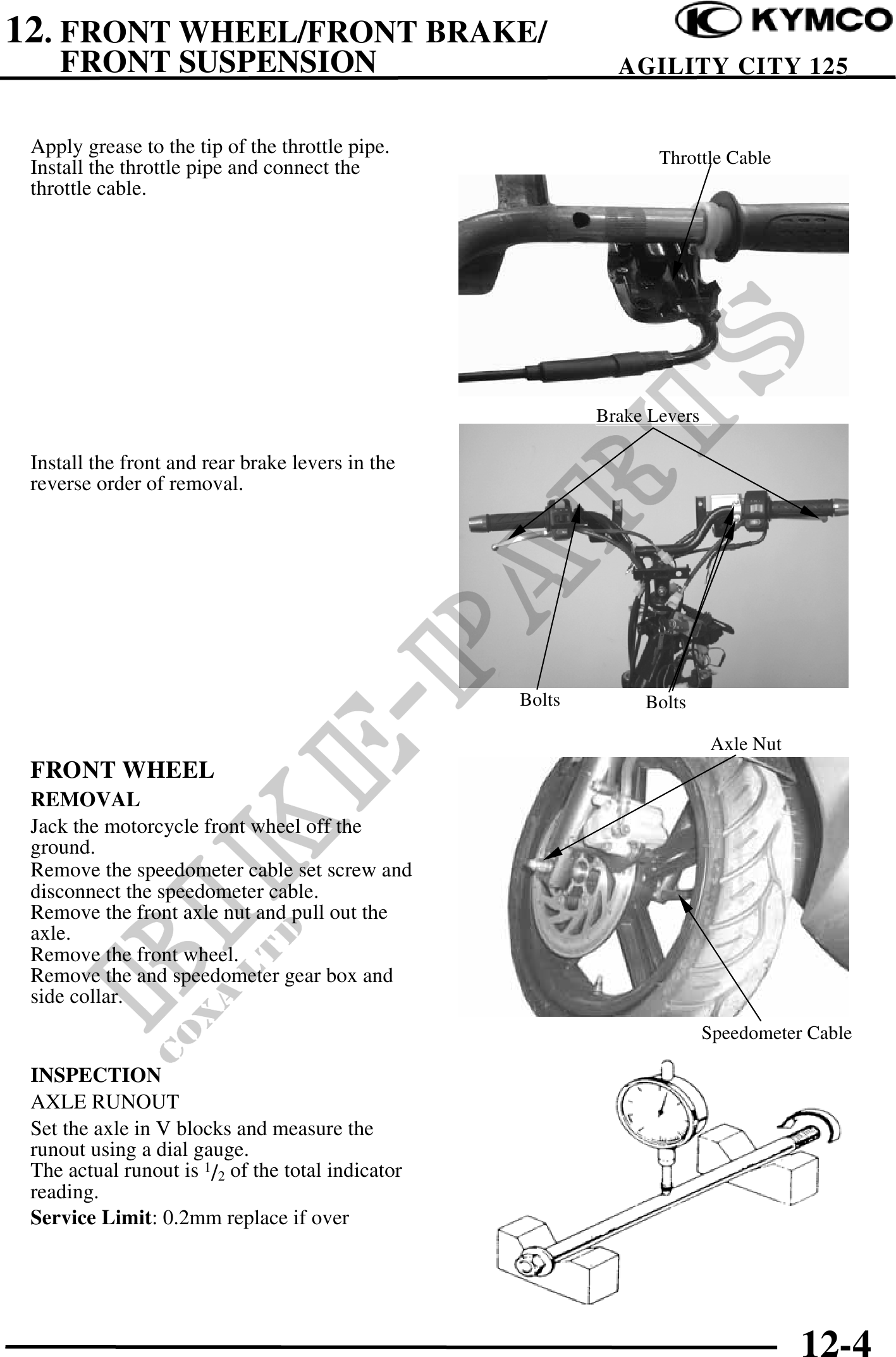

          12. FRONT WHEEL/FRONT BRAKE/
    FRONT SUSPENSION                                         AGILITY CITY 125


 Apply grease to the tip of the throttle pipe.
                                                                  Throttle Cable
 Install the throttle pipe and connect the
 throttle cable.




                                                           Brake Levers

 Install the front and rear brake levers in the
 reverse order of removal.




                                                   Bolts        Bolts

                                                                          Axle Nut
 FRONT WHEEL
 REMOVAL
 Jack the motorcycle front wheel off the
 ground.
 Remove the speedometer cable set screw and
 disconnect the speedometer cable.
 Remove the front axle nut and pull out the
 axle.
 Remove the front wheel.
 Remove the and speedometer gear box and
 side collar.
                                                                          Speedometer Cable

 INSPECTION
 AXLE RUNOUT
 Set the axle in V blocks and measure the
 runout using a dial gauge.
 The actual runout is 1/2 of the total indicator
 reading.
 Service Limit: 0.2mm replace if over




                                                                                     12-4
