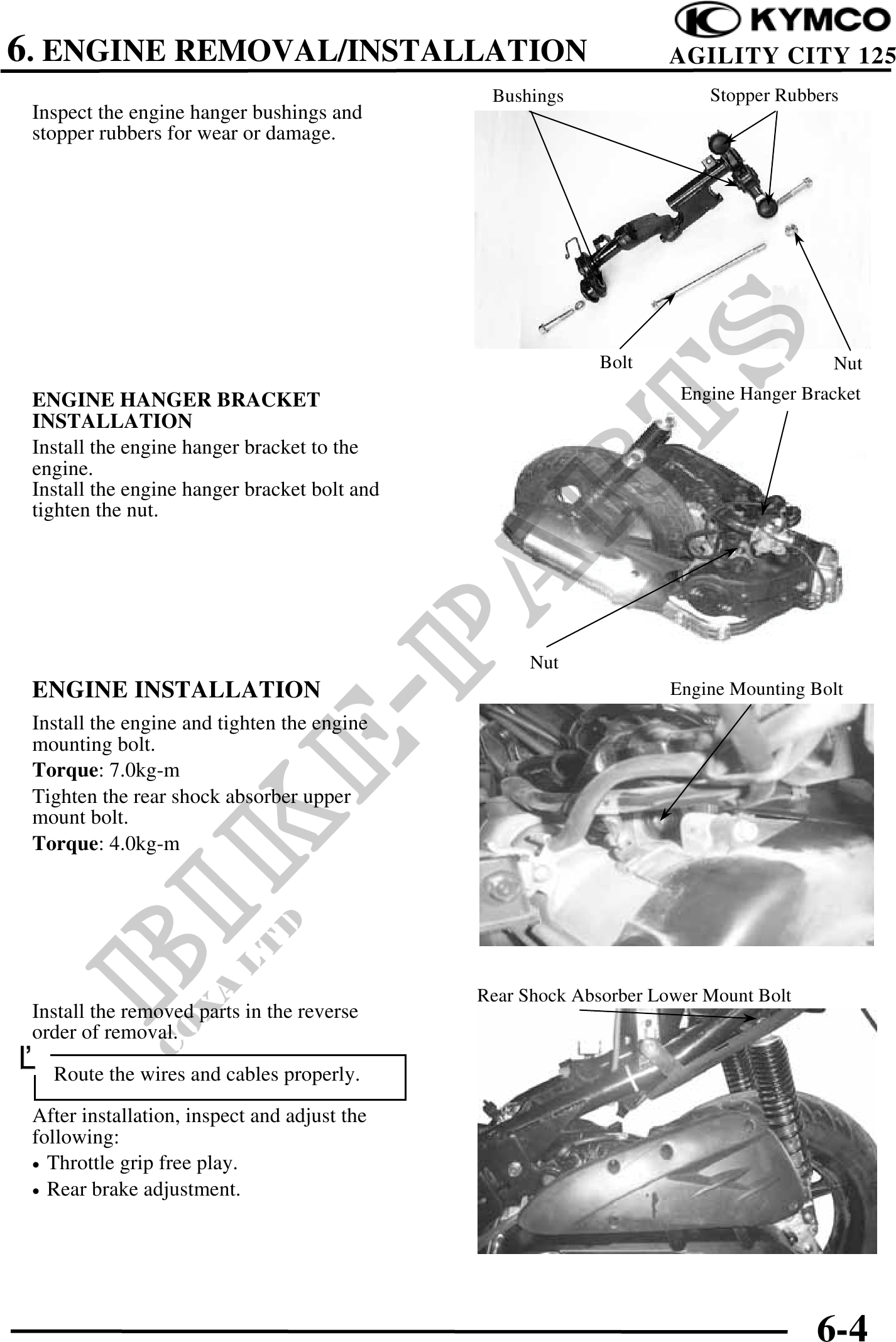

6. ENGINE REMOVAL/INSTALLATION AGILITY CITY 125
Bushings Stopper Rubbers
Inspect the engine hanger bushings and
stopper rubbers for wear or damage.
Bolt Nut
ENGINE HANGER BRACKET Engine Hanger Bracket
INSTALLATION
Install the engine hanger bracket to the
engine.
Install the engine hanger bracket bolt and
tighten the nut.
Nut
ENGINE INSTALLATION Engine Mounting Bolt
Install the engine and tighten the engine
mounting bolt.
Torque: 7.0kg-m
Tighten the rear shock absorber upper
mount bolt.
Torque: 4.0kg-m
Rear Shock Absorber Lower Mount Bolt
Install the removed parts in the reverse
order of removal.
Route the wires and cables properly.
After installation, inspect and adjust the
following:
· Throttle grip free play.
· Rear brake adjustment.
6-4
