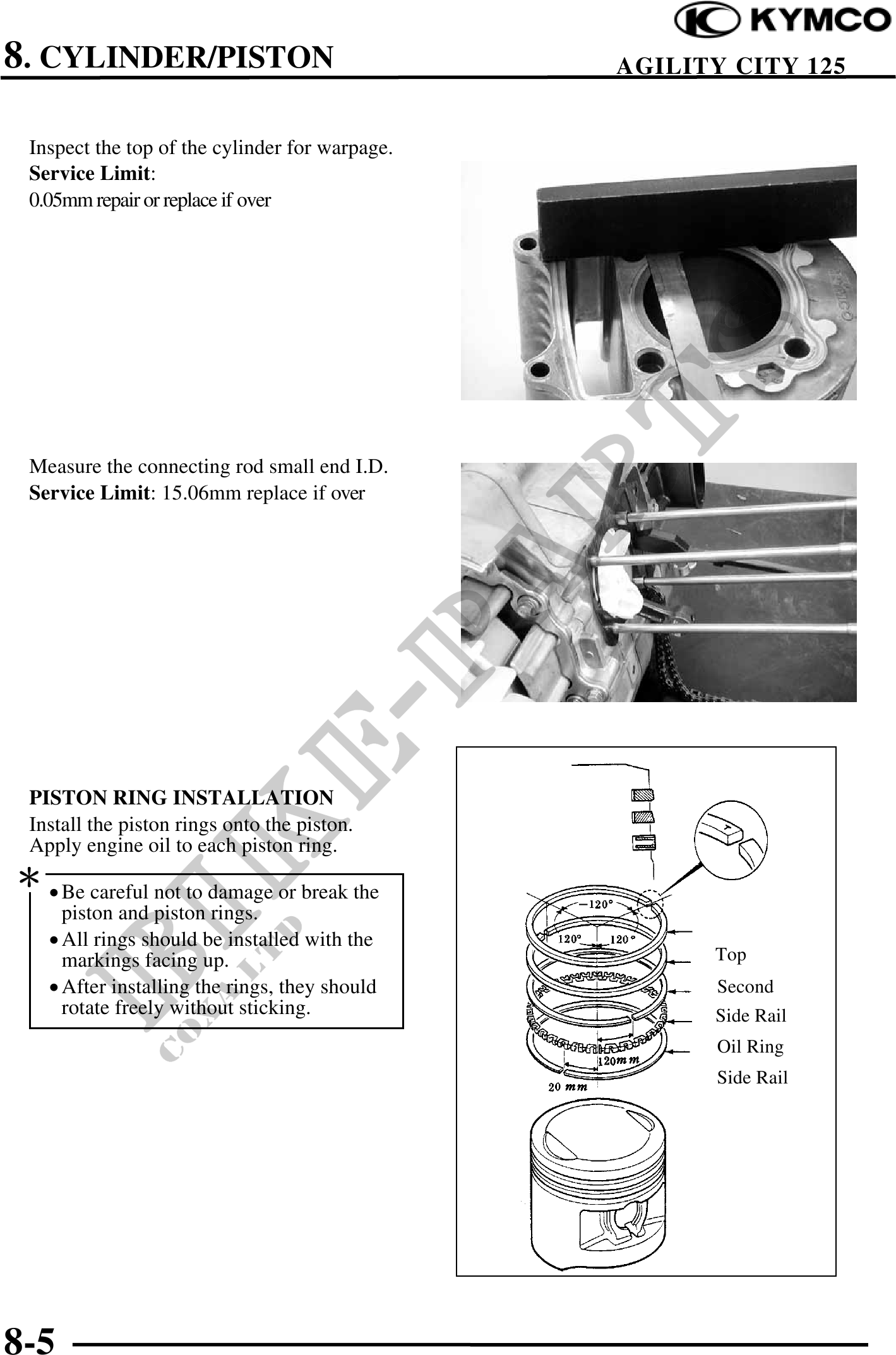

          8. CYLINDER/PISTON                              AGILITY CITY 125


 Inspect the top of the cylinder for warpage.
 Service Limit:
 0.05mm repair or replace if over




 Measure the connecting rod small end I.D.
 Service Limit: 15.06mm replace if over




 PISTON RING INSTALLATION
 Install the piston rings onto the piston.
 Apply engine oil to each piston ring.
 · Be careful not to damage or break the
     piston and piston rings.
   · All rings should be installed with the
     markings facing up.                              Top
   · After installing the rings, they should          Second
     rotate freely without sticking.                  Side Rail
                                                       Oil Ring
                                                       Side Rail




8-5
