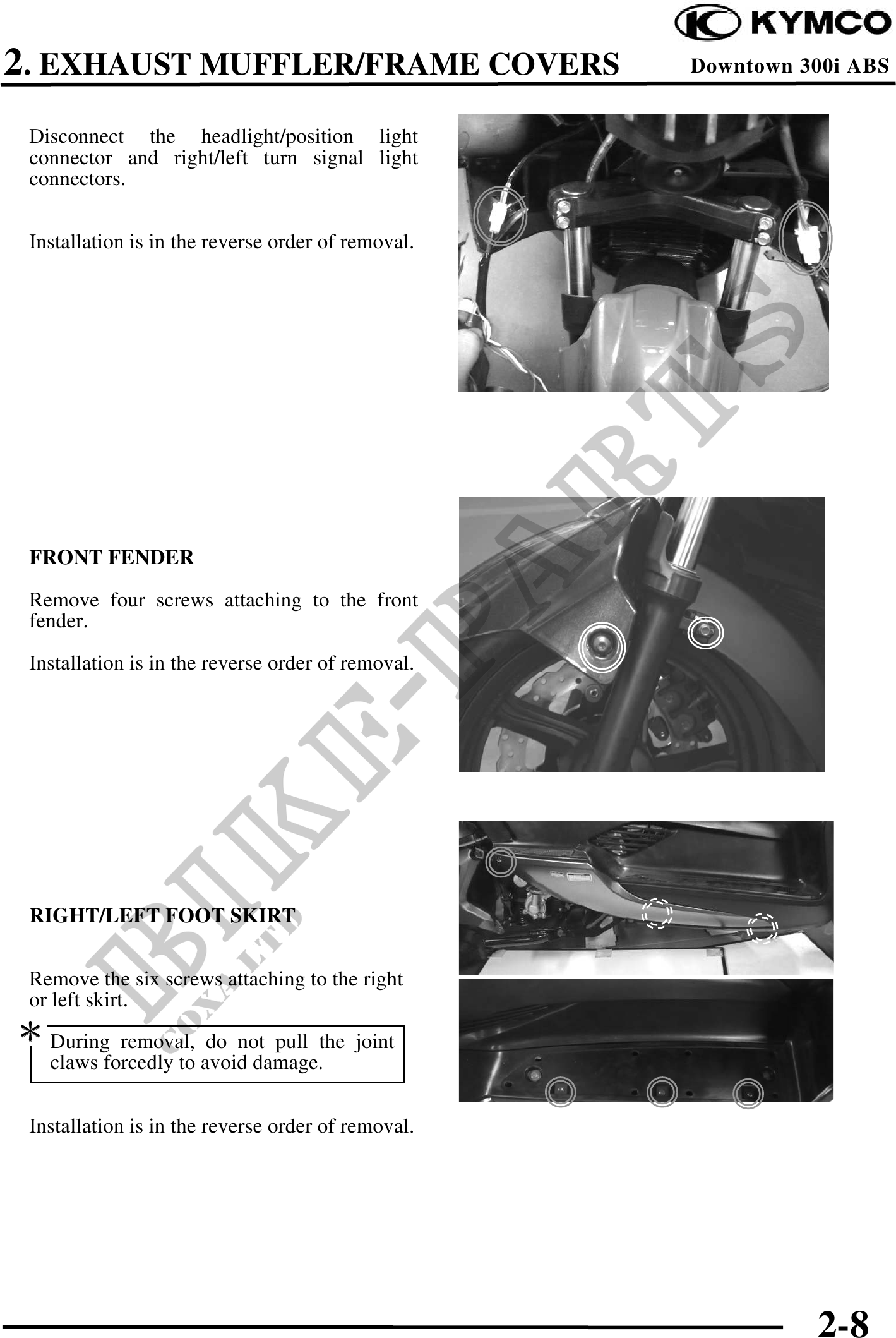

          2. EXHAUST MUFFLER/FRAME COVERS                     Downtown 300i ABS


 Disconnect the headlight/position light
 connector and right/left turn signal light
 connectors.


 Installation is in the reverse order of removal.




 FRONT FENDER

 Remove four screws attaching to the front
 fender.

 Installation is in the reverse order of removal.




 RIGHT/LEFT FOOT SKIRT


 Remove the six screws attaching to the right
 or left skirt.
 During    removal, do not pull the joint
   claws forcedly to avoid damage.


 Installation is in the reverse order of removal.
