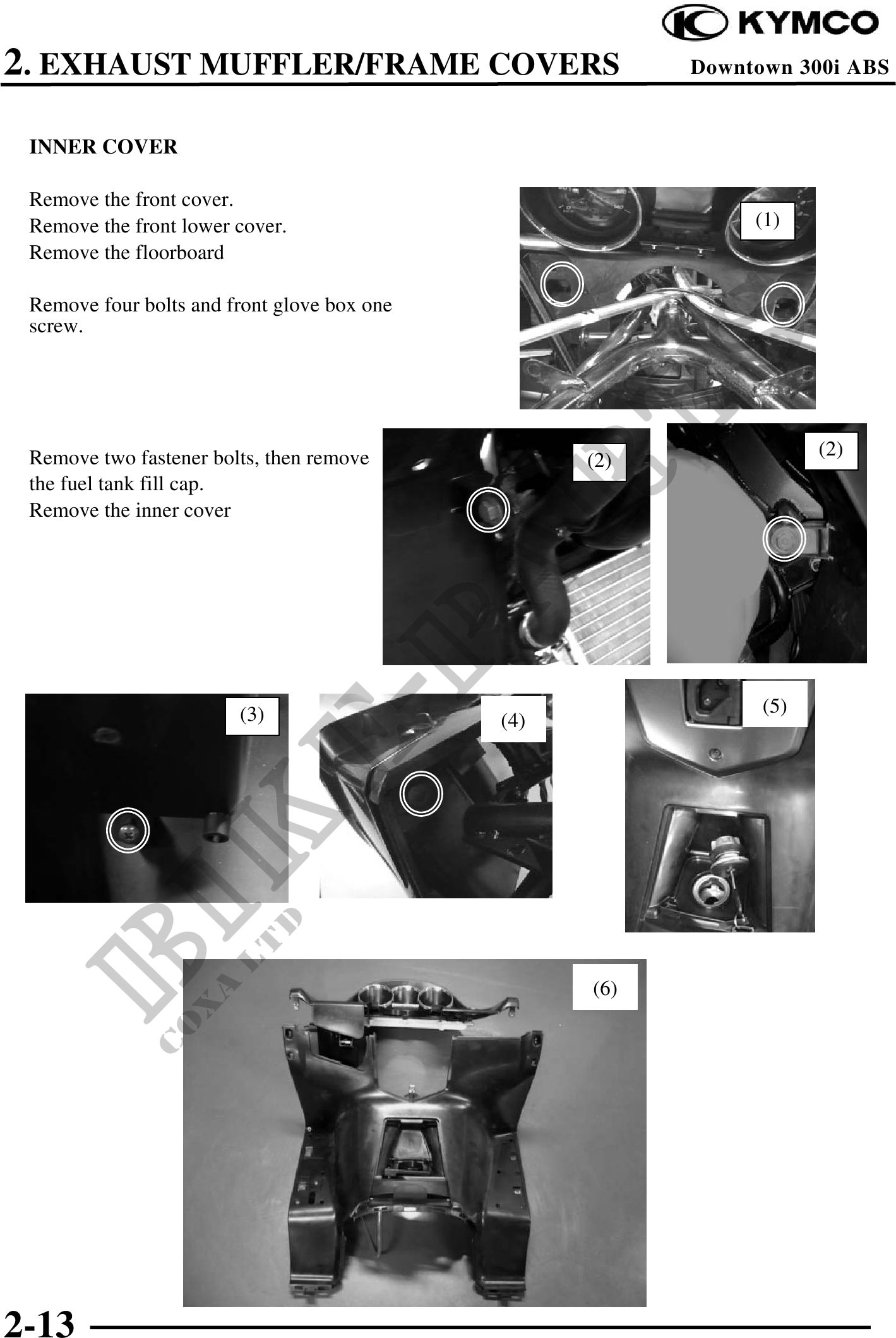

          2. EXHAUST MUFFLER/FRAME COVERS                          Downtown 300i ABS


 INNER COVER

 Remove the front cover.
 Remove the front lower cover.                                (1)
 Remove the floorboard

 Remove four bolts and front glove box one
 screw.




 Remove two fastener bolts, then remove                              (2)
                                                   (2)
 the fuel tank fill cap.
 Remove the inner cover




                        (3)                                    (5)
                                             (4)




                                                   (6)




2-13
