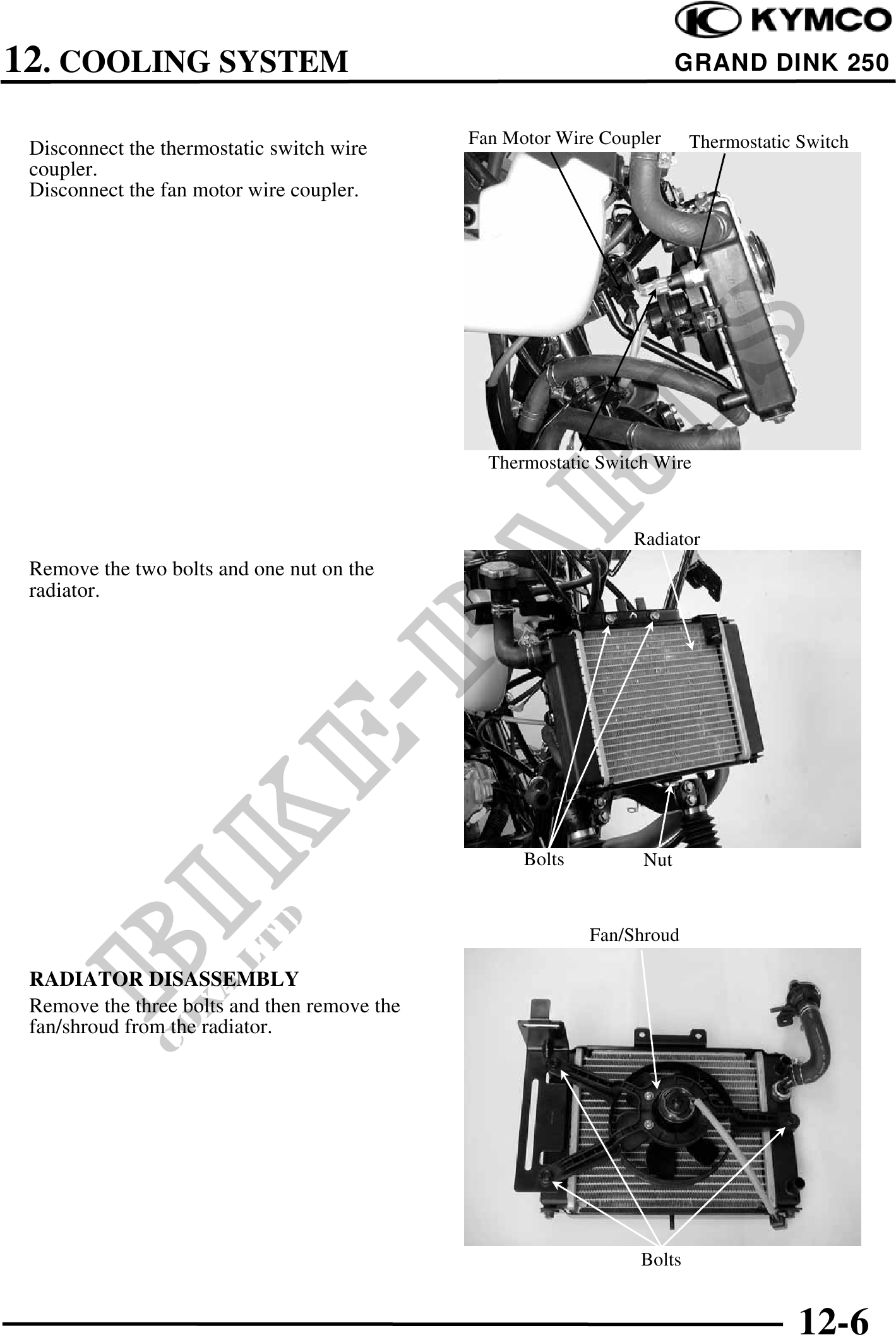

12. COOLING SYSTEM GRAND DINK 250
Fan Motor Wire Coupler Thermostatic Switch
Disconnect the thermostatic switch wire
coupler.
Disconnect the fan motor wire coupler.
Thermostatic Switch Wire
Radiator
Remove the two bolts and one nut on the
radiator.
Bolts Nut
Fan/Shroud
RADIATOR DISASSEMBLY
Remove the three bolts and then remove the
fan/shroud from the radiator.
Bolts
12-6
