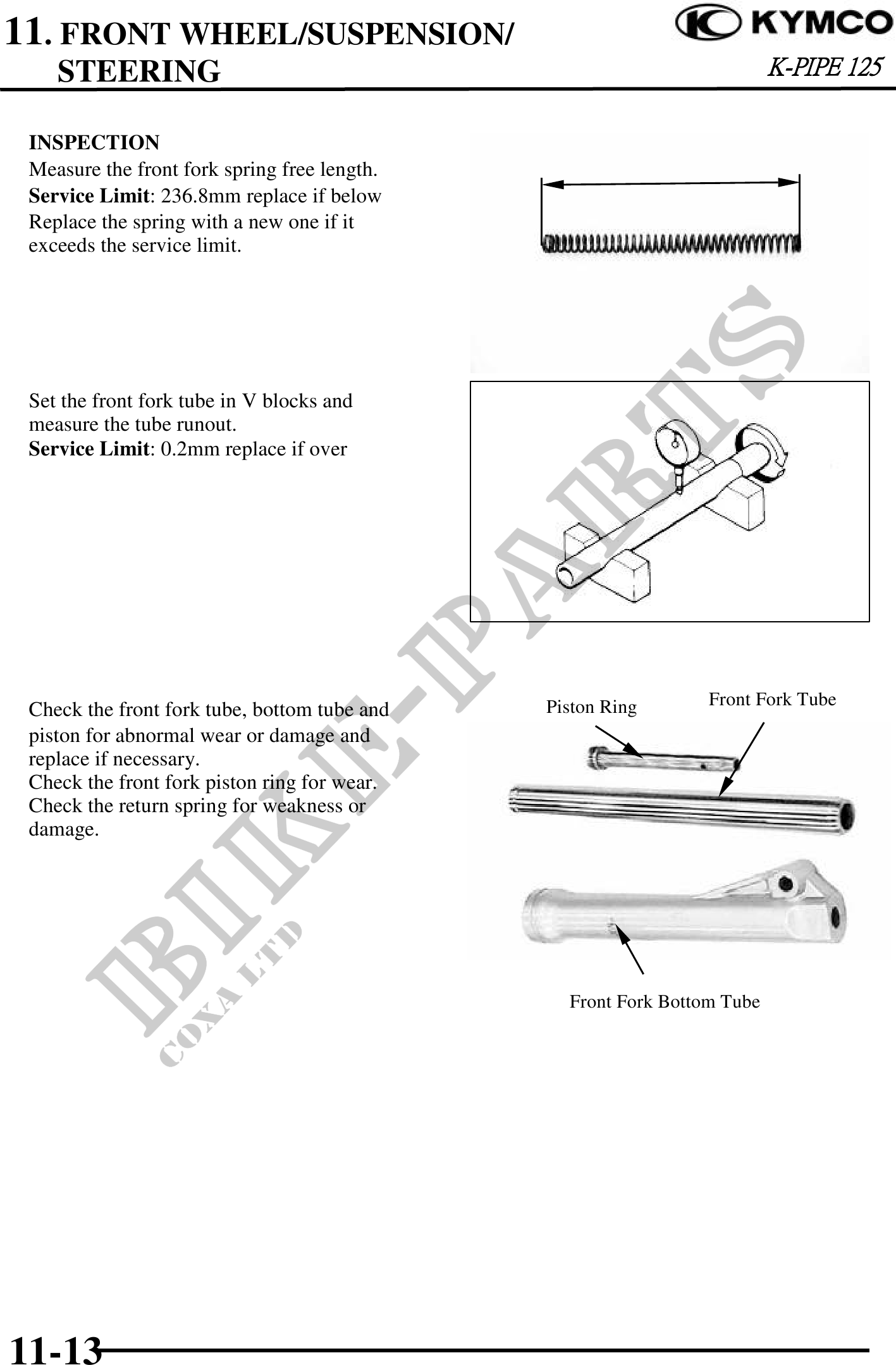

11. FRONT WHEEL/SUSPENSION/
STEERING K-PIPE 125
INSPECTION
Measure the front fork spring free length.
Service Limit: 236.8mm replace if below
Replace the spring with a new one if it
exceeds the service limit.
Set the front fork tube in V blocks and
measure the tube runout.
Service Limit: 0.2mm replace if over
Piston Ring Front Fork Tube
Check the front fork tube, bottom tube and
piston for abnormal wear or damage and
replace if necessary.
Check the front fork piston ring for wear.
Check the return spring for weakness or
damage.
Front Fork Bottom Tube
11-13
