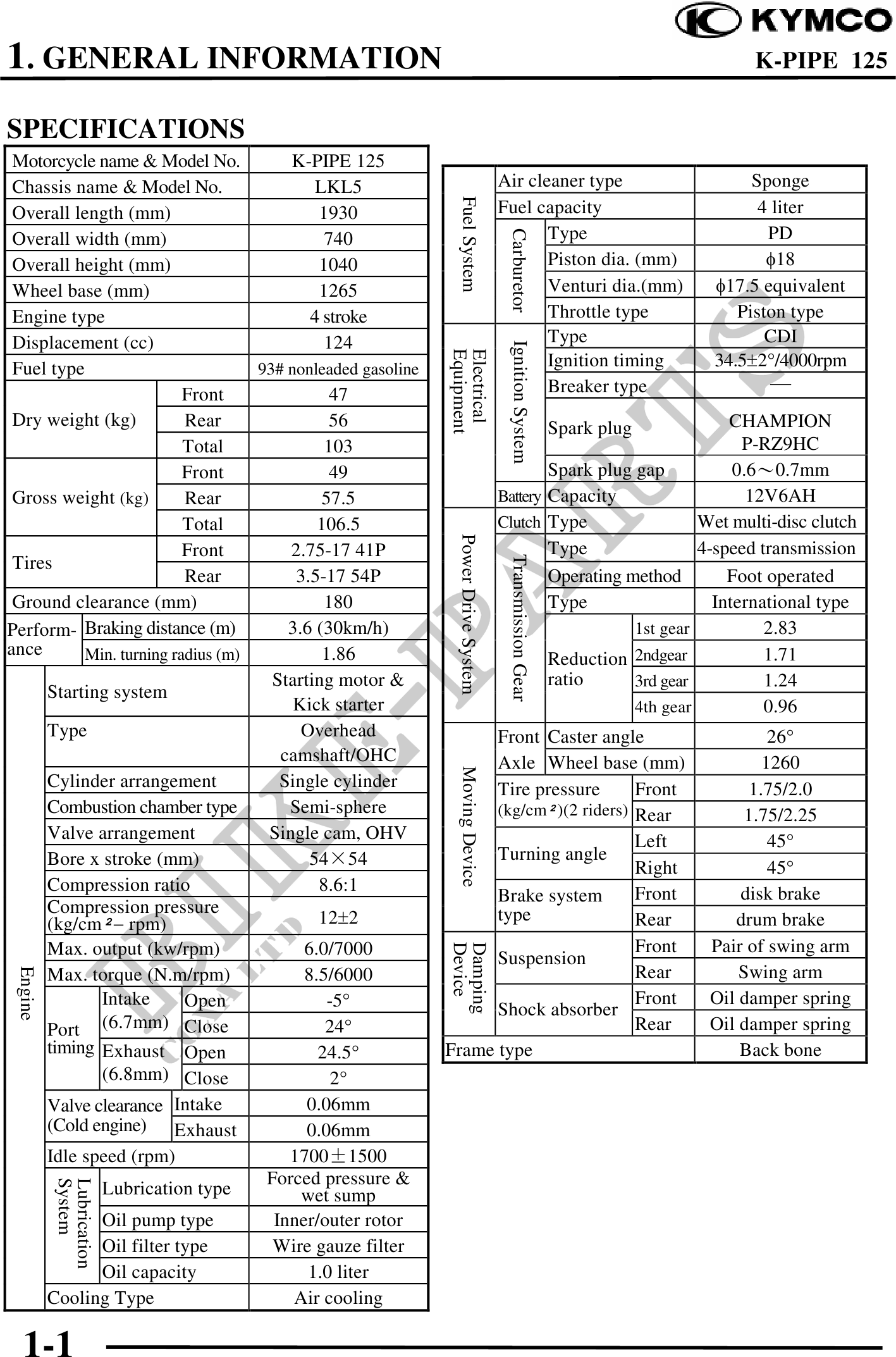

1. GENERAL INFORMATION K-PIPE 125
SPECIFICATIONS
Motorcycle name & Model No. K-PIPE 125
Chassis name & Model No. LKL5 Air cleaner type Sponge
Fuel System
Overall length (mm) 1930 Fuel capacity 4 liter
Type PD
Carburetor
Overall width (mm) 740
Overall height (mm) 1040 Piston dia. (mm) 18
Wheel base (mm) 1265 Venturi dia.(mm) 17.5 equivalent
Engine type 4 stroke Throttle type Piston type
Displacement (cc) 124 Type CDI
Ignition System
Equipment
Electrical
Fuel type 93# nonleaded gasoline Ignition timing 34.52°/4000rpm
Breaker type
Front 47
Dry weight (kg) Rear 56 Spark plug CHAMPION
Total 103 P-RZ9HC
Front 49 Spark plug gap 0.60.7mm
Gross weight (kg) Rear 57.5 Battery Capacity 12V6AH
Total 106.5 Clutch Type Wet multi-disc clutch
Power Drive System
Front 2.75-17 41P Type
Transmission Gear 4-speed transmission
Tires
Rear 3.5-17 54P Operating method Foot operated
Ground clearance (mm) 180 Type International type
Perform- Braking distance (m) 3.6 (30km/h) 1st gear 2.83
ance Min. turning radius (m) 1.86 1.71
Reduction 2ndgear
Starting motor & ratio 3rd gear 1.24
Starting system
Kick starter 4th gear 0.96
Type Overhead Front Caster angle 26°
camshaft/OHC Axle Wheel base (mm) 1260
Moving Device
Cylinder arrangement Single cylinder Tire pressure Front 1.75/2.0
Combustion chamber type Semi-sphere (kg/cm)(2 riders) Rear 1.75/2.25
Valve arrangement Single cam, OHV Left 45°
Bore x stroke (mm) 54×54 Turning angle
Right 45°
Compression ratio 8.6:1 Front disk brake
Brake system
Compression pressure type
(kg/cm- rpm) 122 Rear drum brake
Max. output (kw/rpm) 6.0/7000 Front Pair of swing arm
Device
Damping
Suspension
Rear Swing arm
Engine
Max. torque (N.m/rpm) 8.5/6000
Intake Open -5° Front Oil damper spring
Shock absorber
Port (6.7mm) Close 24° Rear Oil damper spring
timing Exhaust Open 24.5° Frame type Back bone
(6.8mm) Close 2°
Valve clearance Intake 0.06mm
(Cold engine) Exhaust 0.06mm
Idle speed (rpm) 17001500
Forced pressure &
System
Lubrication
Lubrication type wet sump
Oil pump type Inner/outer rotor
Oil filter type Wire gauze filter
Oil capacity 1.0 liter
Cooling Type Air cooling
1-1
