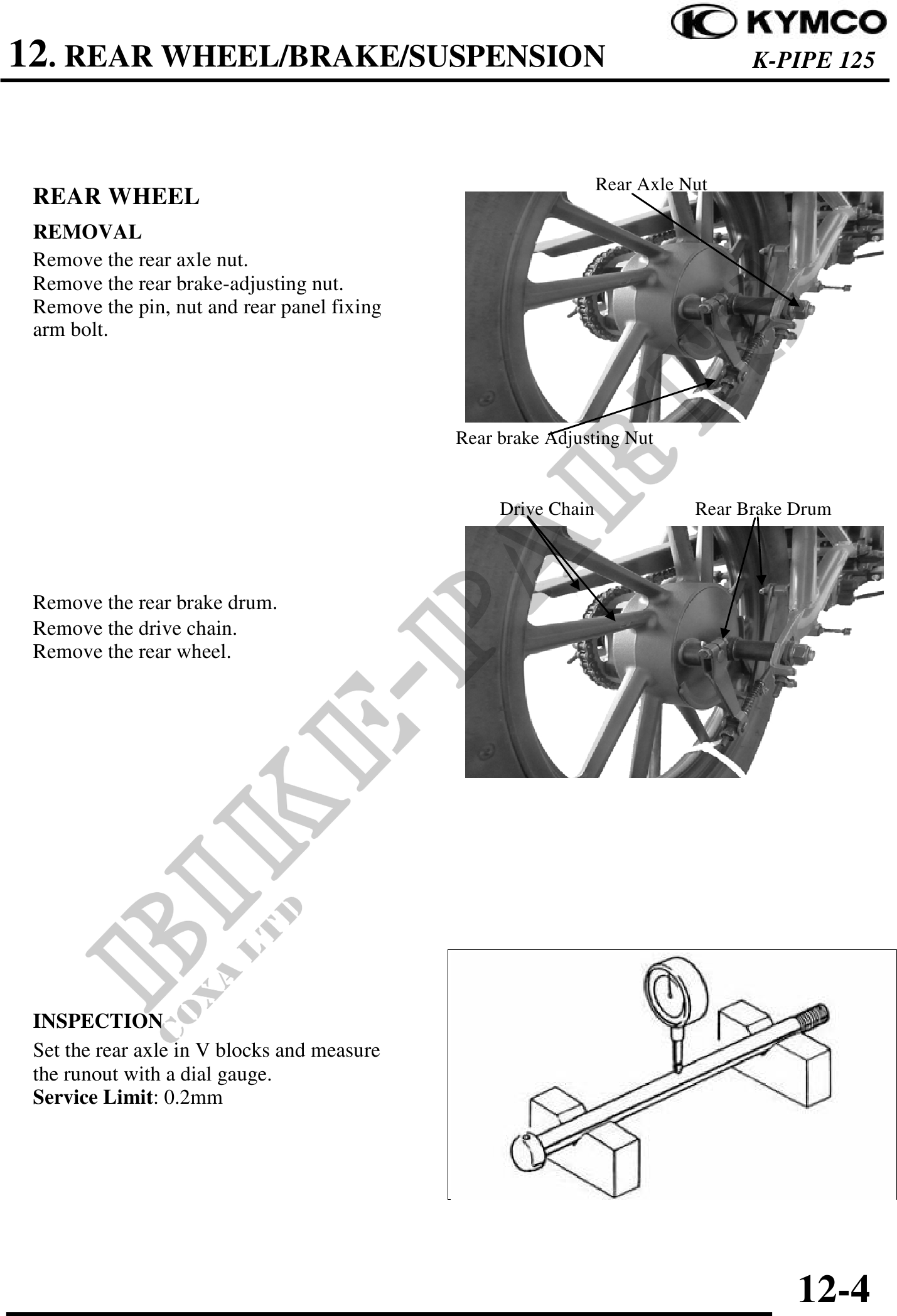

12. REAR WHEEL/BRAKE/SUSPENSION K-PIPE 125
Rear Axle Nut
REAR WHEEL
REMOVAL
Remove the rear axle nut.
Remove the rear brake-adjusting nut.
Remove the pin, nut and rear panel fixing
arm bolt.
Rear brake Adjusting Nut
Drive Chain Rear Brake Drum
Remove the rear brake drum.
Remove the drive chain.
Remove the rear wheel.
INSPECTION
Set the rear axle in V blocks and measure
the runout with a dial gauge.
Service Limit: 0.2mm
12-4
