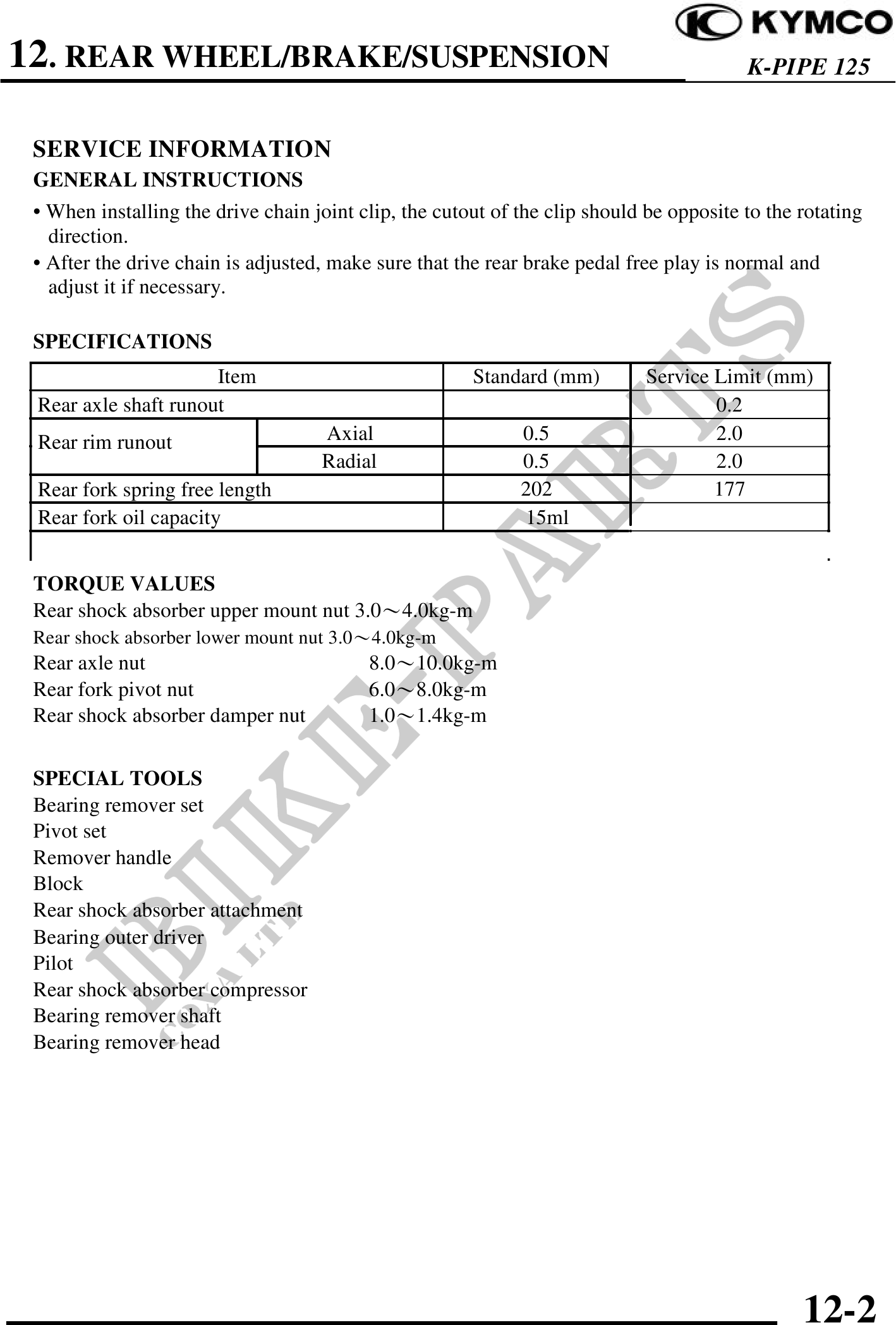

12. REAR WHEEL/BRAKE/SUSPENSION K-PIPE 125
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· When installing the drive chain joint clip, the cutout of the clip should be opposite to the rotating
direction.
· After the drive chain is adjusted, make sure that the rear brake pedal free play is normal and
adjust it if necessary.
SPECIFICATIONS
Item Standard (mm) Service Limit (mm)
Rear axle shaft runout 0.2
Rear rim runout Axial 0.5 2.0
Radial 0.5 2.0
Rear fork spring free length 202 177
Rear fork oil capacity 15ml
TORQUE VALUES
Rear shock absorber upper mount nut 3.04.0kg-m
Rear shock absorber lower mount nut 3.04.0kg-m
Rear axle nut 8.010.0kg-m
Rear fork pivot nut 6.08.0kg-m
Rear shock absorber damper nut 1.01.4kg-m
SPECIAL TOOLS
Bearing remover set
Pivot set
Remover handle
Block
Rear shock absorber attachment
Bearing outer driver
Pilot
Rear shock absorber compressor
Bearing remover shaft
Bearing remover head
12-2
