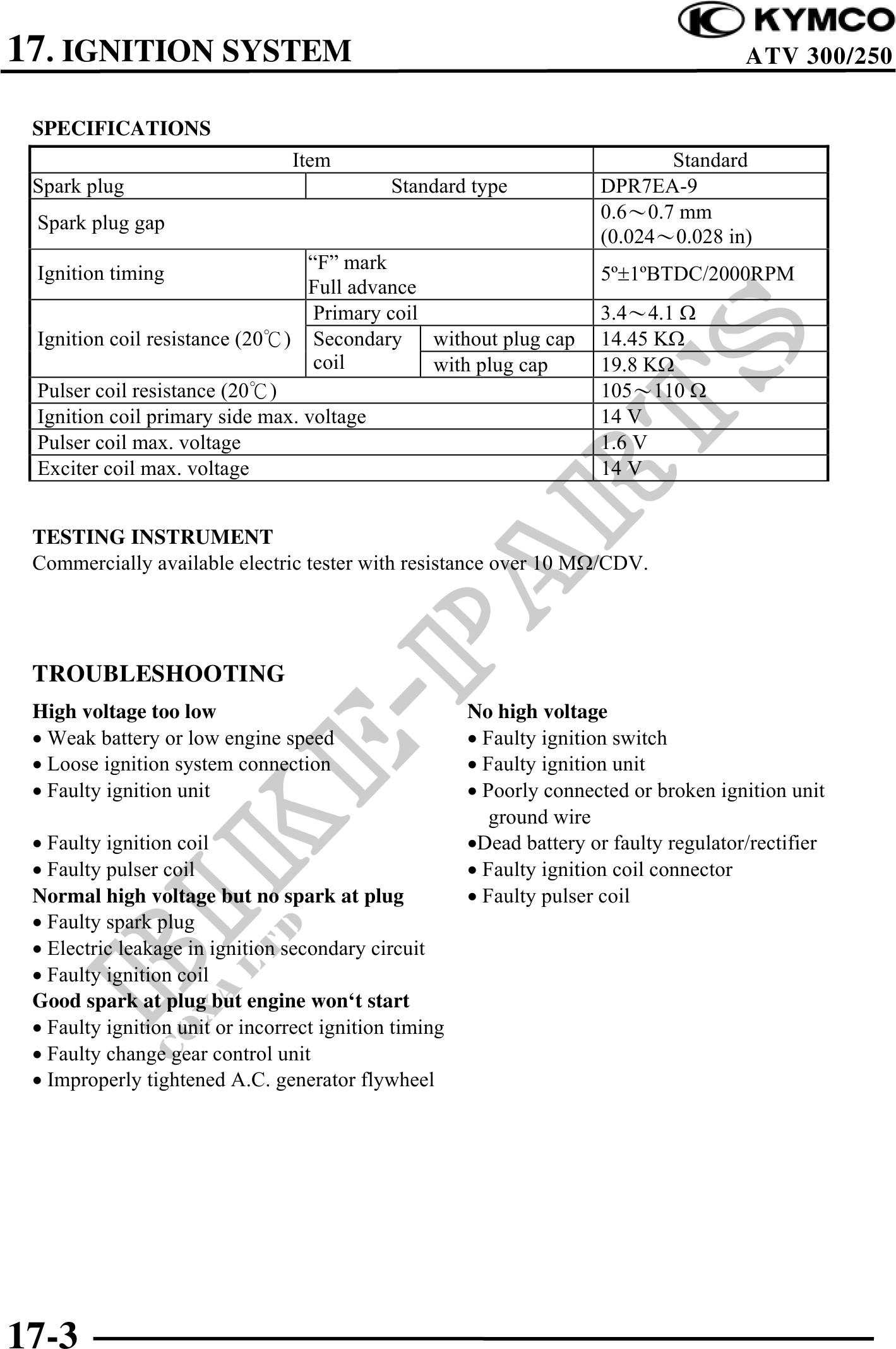

17. IGNITION SYSTEM ATV 300/250
SPECIFICATIONS
Item Standard
Spark plug Standard type DPR7EA-9
0.60.7 mm
Spark plug gap
(0.0240.028 in)
"F" mark
Ignition timing 51BTDC/2000RPM
Full advance
Primary coil 3.44.1
Ignition coil resistance (20) Secondary without plug cap 14.45 K
coil with plug cap 19.8 K
Pulser coil resistance (20) 105110
Ignition coil primary side max. voltage 14 V
Pulser coil max. voltage 1.6 V
Exciter coil max. voltage 14 V
TESTING INSTRUMENT
Commercially available electric tester with resistance over 10 M/CDV.
TROUBLESHOOTING
High voltage too low No high voltage
· Weak battery or low engine speed · Faulty ignition switch
· Loose ignition system connection · Faulty ignition unit
· Faulty ignition unit · Poorly connected or broken ignition unit
ground wire
· Faulty ignition coil ·Dead battery or faulty regulator/rectifier
· Faulty pulser coil · Faulty ignition coil connector
Normal high voltage but no spark at plug · Faulty pulser coil
· Faulty spark plug
· Electric leakage in ignition secondary circuit
· Faulty ignition coil
Good spark at plug but engine won`t start
· Faulty ignition unit or incorrect ignition timing
· Faulty change gear control unit
· Improperly tightened A.C. generator flywheel
17-3
