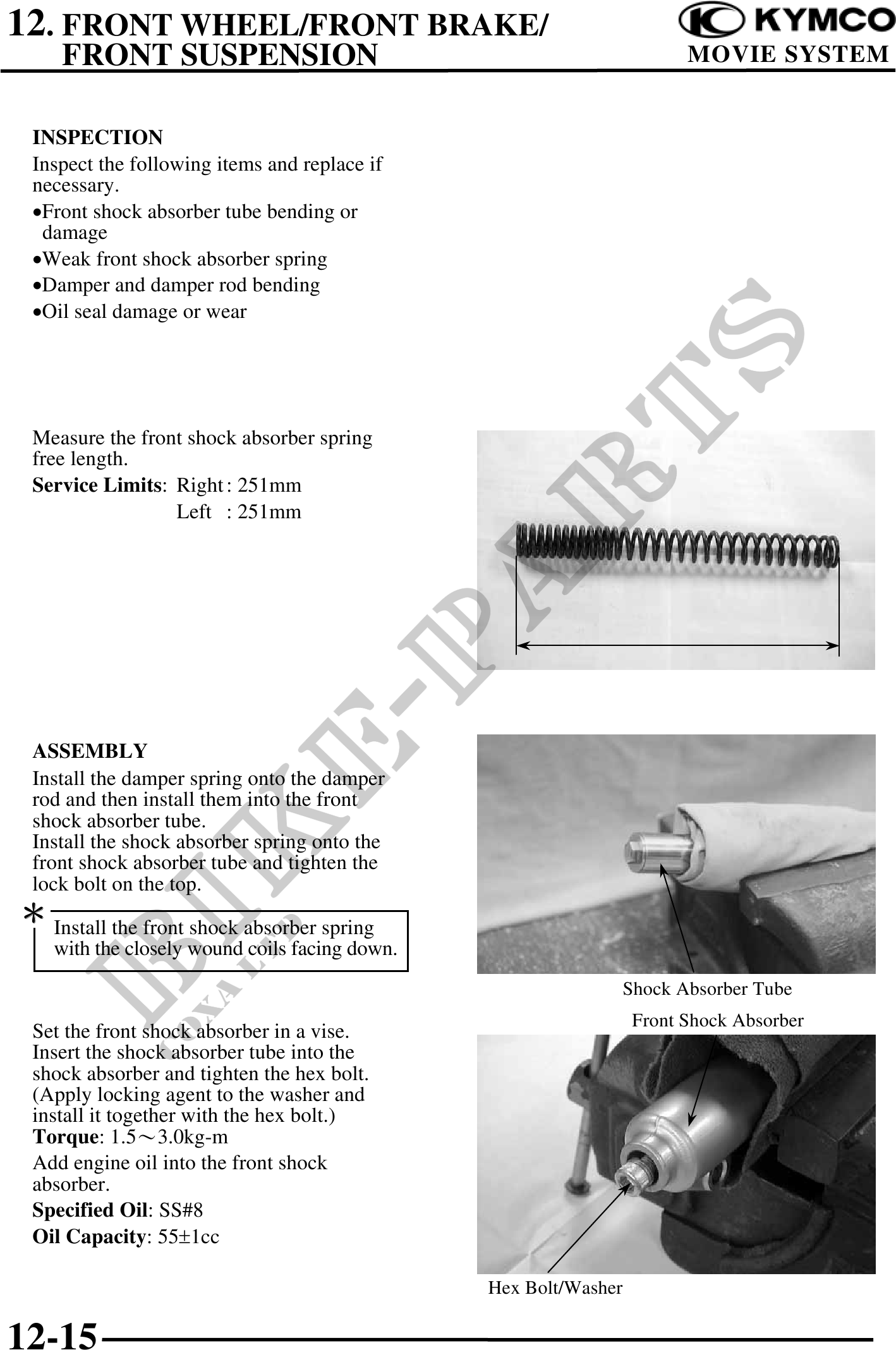

          12. FRONT WHEEL/FRONT BRAKE/
    FRONT SUSPENSION                                                     MOVIE SYSTEM


 INSPECTION
 Inspect the following items and replace if
 necessary.
 ·Front shock absorber tube bending or
  damage
 ·Weak front shock absorber spring
 ·Damper and damper rod bending
 ·Oil seal damage or wear




 Measure the front shock absorber spring
 free length.
 Service Limits: Right : 251mm
                 Left : 251mm




 ASSEMBLY
 Install the damper spring onto the damper
 rod and then install them into the front
 shock absorber tube.
 Install the shock absorber spring onto the
 front shock absorber tube and tighten the
 lock bolt on the top.
 Install the front shock absorber spring
    with the closely wound coils facing down.
                                                                  Shock Absorber Tube
                                                                   Front Shock Absorber
 Set the front shock absorber in a vise.
 Insert the shock absorber tube into the
 shock absorber and tighten the hex bolt.
 (Apply locking agent to the washer and
 install it together with the hex bolt.)
 Torque: 1.53.0kg-m
 Add engine oil into the front shock
 absorber.
 Specified Oil: SS#8
 Oil Capacity: 551cc

                                                Hex Bolt/Washer

12-15
