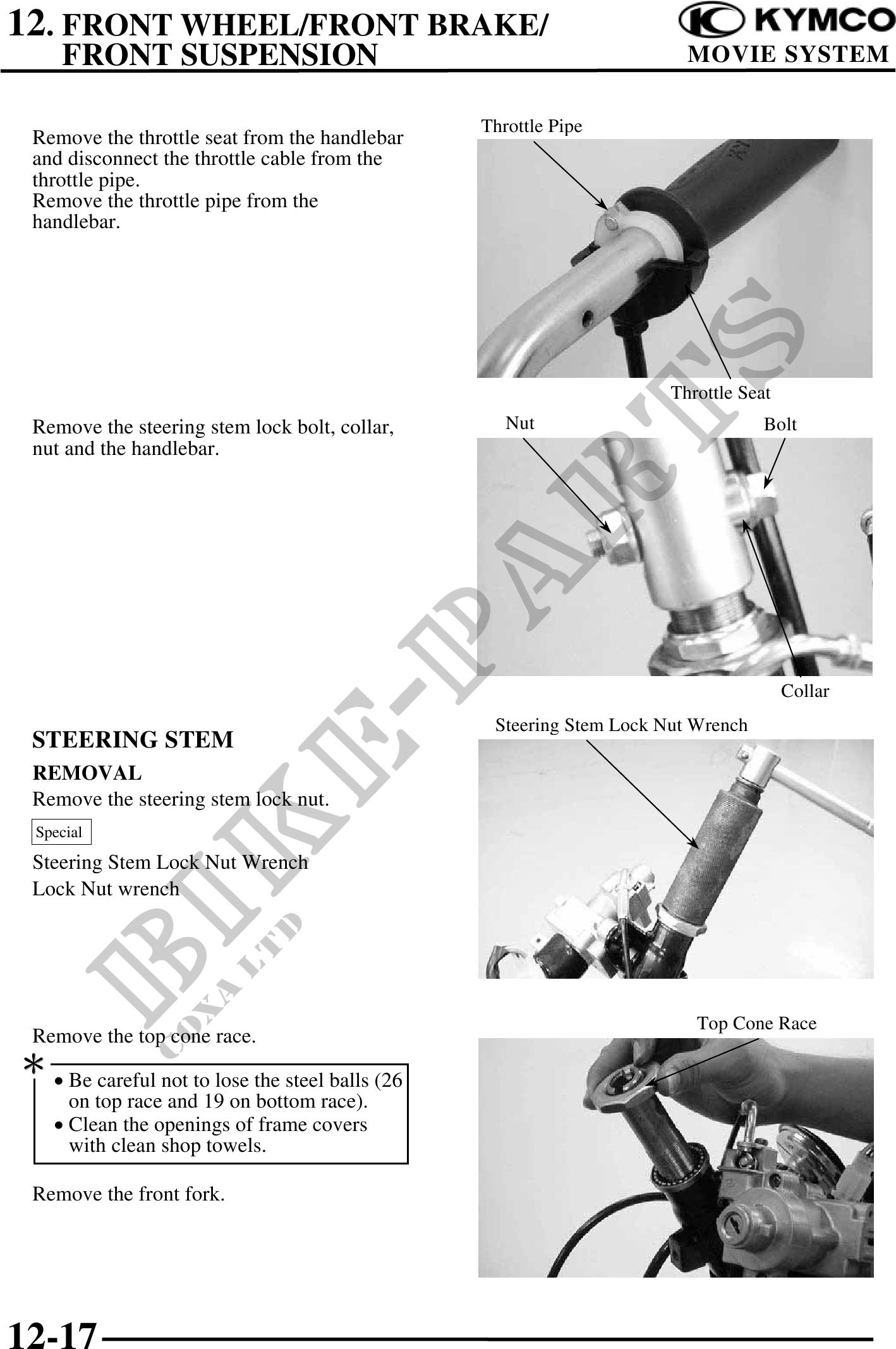

12. FRONT WHEEL/FRONT BRAKE/
FRONT SUSPENSION MOVIE SYSTEM
Throttle Pipe
Remove the throttle seat from the handlebar
and disconnect the throttle cable from the
throttle pipe.
Remove the throttle pipe from the
handlebar.
Throttle Seat
Remove the steering stem lock bolt, collar, Nut Bolt
nut and the handlebar.
Collar
Steering Stem Lock Nut Wrench
STEERING STEM
REMOVAL
Remove the steering stem lock nut.
Special
Steering Stem Lock Nut Wrench
Lock Nut wrench
Top Cone Race
Remove the top cone race.
· Be careful not to lose the steel balls (26
on top race and 19 on bottom race).
· Clean the openings of frame covers
with clean shop towels.
Remove the front fork.
12-17
