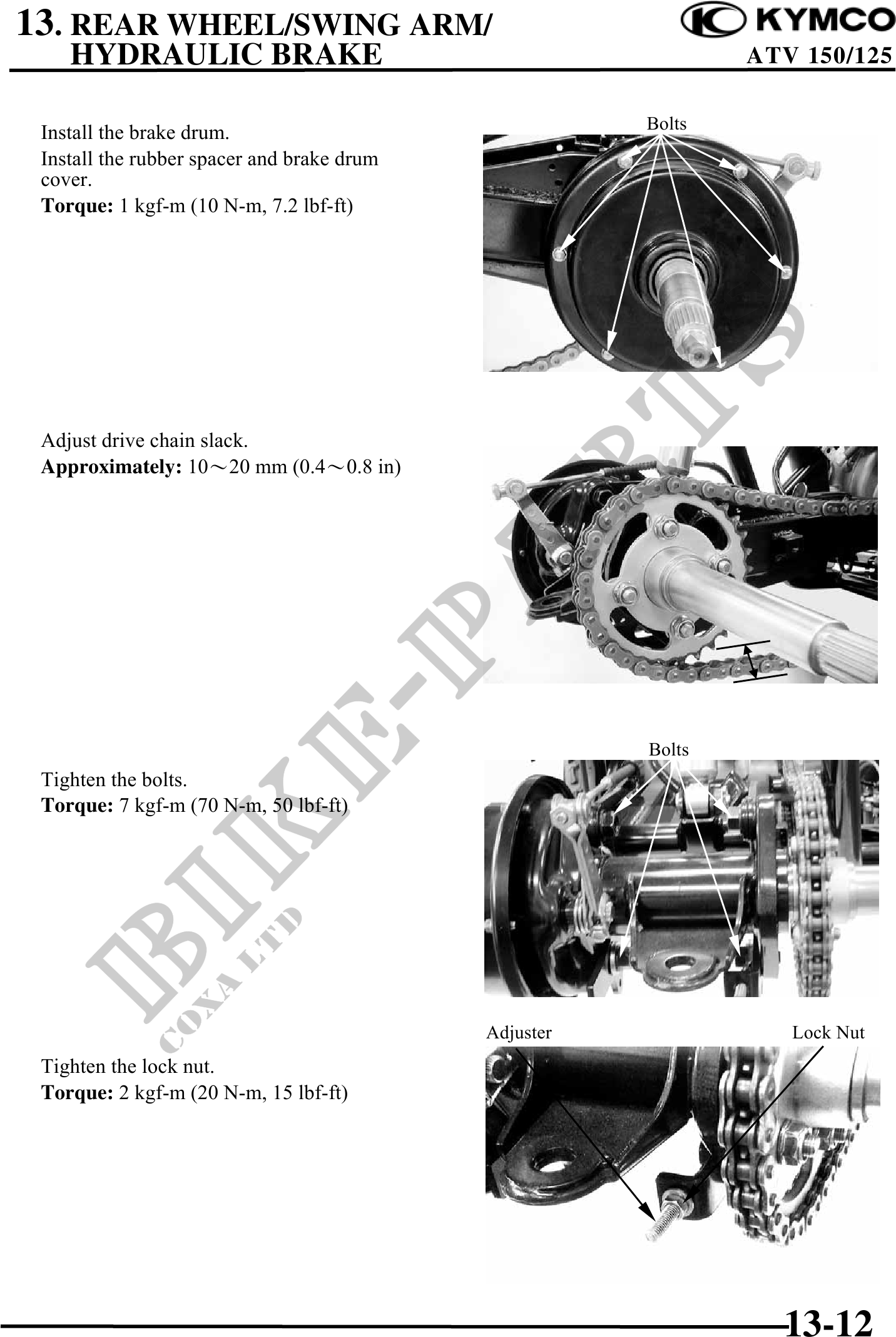

13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE ATV 150/125
Bolts
Install the brake drum.
Install the rubber spacer and brake drum
cover.
Torque: 1 kgf-m (10 N-m, 7.2 lbf-ft)
Adjust drive chain slack.
Approximately: 1020 mm (0.40.8 in)
Bolts
Tighten the bolts.
Torque: 7 kgf-m (70 N-m, 50 lbf-ft)
Adjuster Lock Nut
Tighten the lock nut.
Torque: 2 kgf-m (20 N-m, 15 lbf-ft)
13-12
