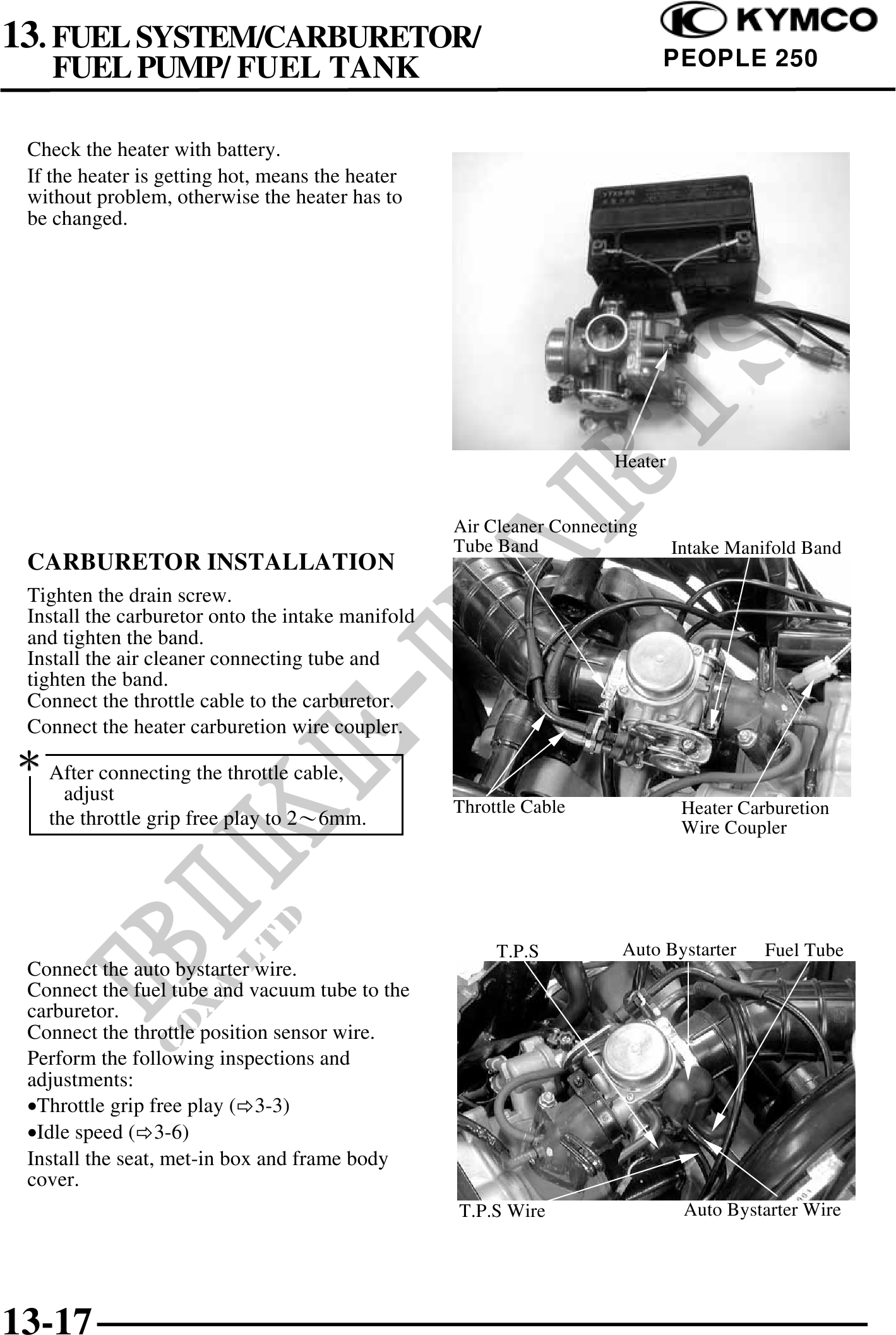

13. FUEL SYSTEM/CARBURETOR/
FUEL PUMP/ FUEL TANK PEOPLE 250
Check the heater with battery.
If the heater is getting hot, means the heater
without problem, otherwise the heater has to
be changed.
Heater
Air Cleaner Connecting
Tube Band Intake Manifold Band
CARBURETOR INSTALLATION
Tighten the drain screw.
Install the carburetor onto the intake manifold
and tighten the band.
Install the air cleaner connecting tube and
tighten the band.
Connect the throttle cable to the carburetor.
Connect the heater carburetion wire coupler.
After connecting the throttle cable,
adjust
Throttle Cable Heater Carburetion
the throttle grip free play to 26mm. Wire Coupler
T.P.S Auto Bystarter Fuel Tube
Connect the auto bystarter wire.
Connect the fuel tube and vacuum tube to the
carburetor.
Connect the throttle position sensor wire.
Perform the following inspections and
adjustments:
·Throttle grip free play ( 3-3)
·Idle speed ( 3-6)
Install the seat, met-in box and frame body
cover.
T.P.S Wire Auto Bystarter Wire
13-17
