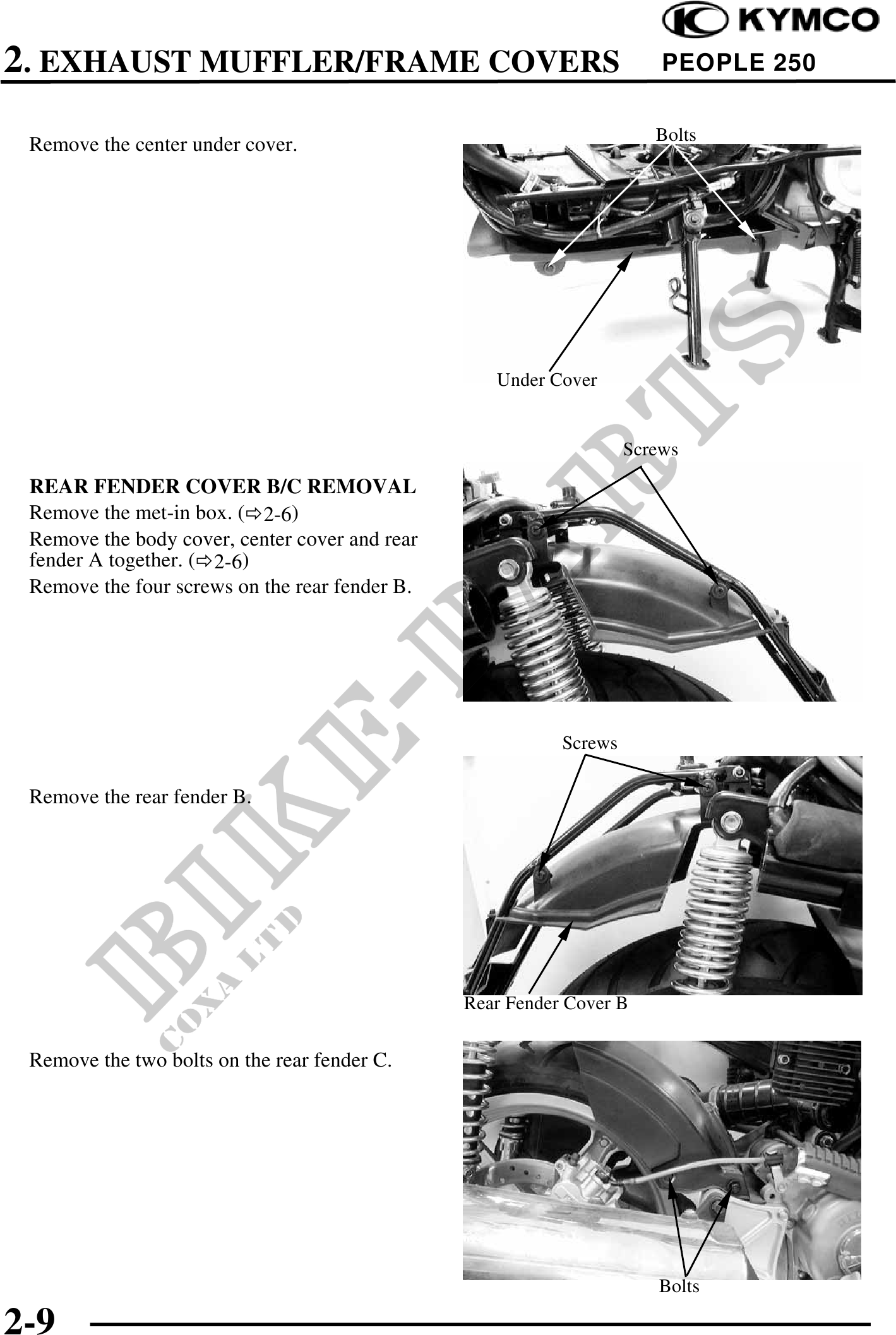

          2. EXHAUST MUFFLER/FRAME COVERS                                         PEOPLE 250

                                                                       Bolts
 Remove the center under cover.




                                                   Under Cover


                                                                    Screws
 REAR FENDER COVER B/C REMOVAL
 Remove the met-in box. ( 2-6)
 Remove the body cover, center cover and rear
 fender A together. ( 2-6)
 Remove the four screws on the rear fender B.




                                                           Screws

 Remove the rear fender B.




                                                Rear Fender Cover B

 Remove the two bolts on the rear fender C.




                                                                       Bolts

2-9
