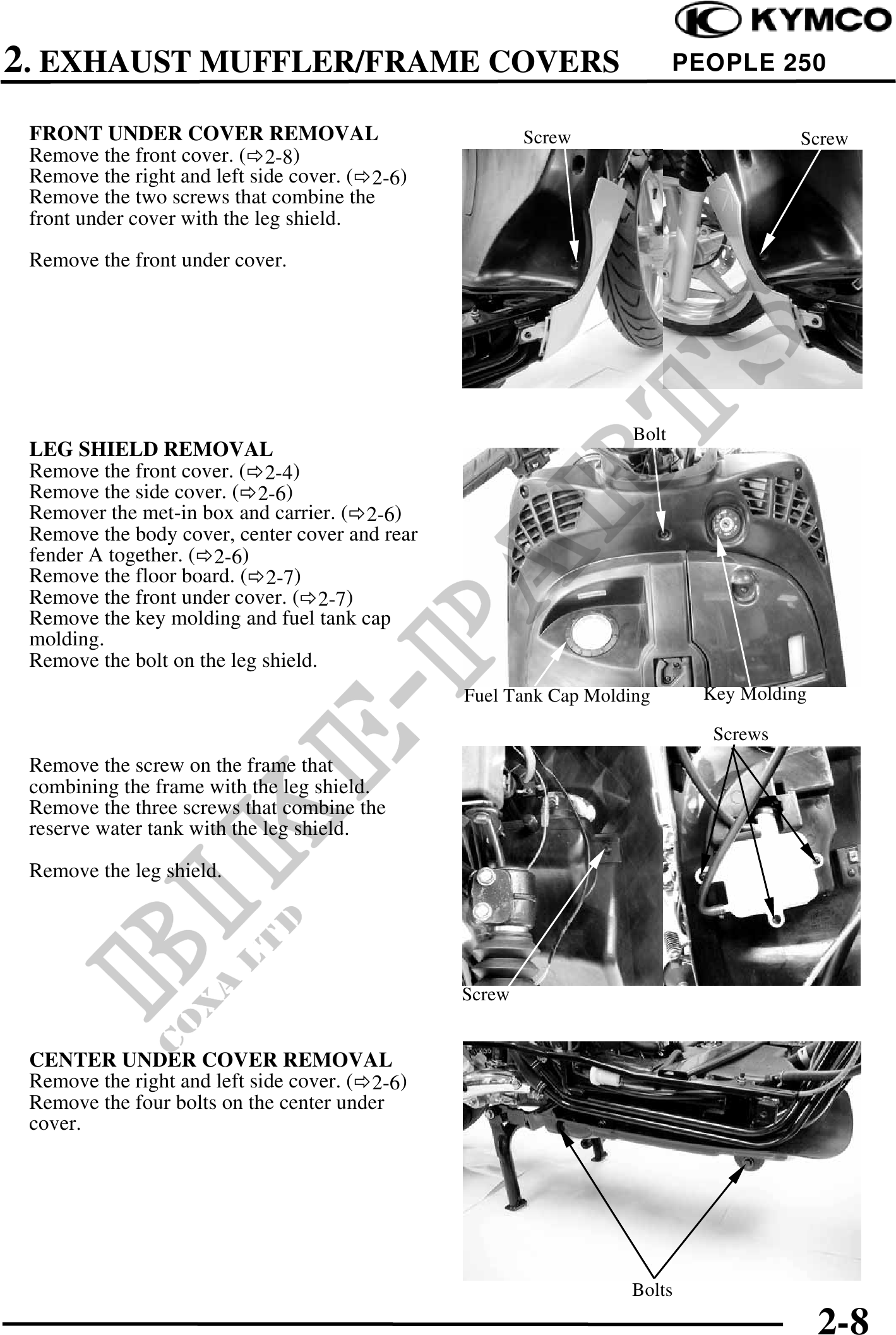

2. EXHAUST MUFFLER/FRAME COVERS PEOPLE 250
FRONT UNDER COVER REMOVAL Screw Screw
Remove the front cover. ( 2-8)
Remove the right and left side cover. ( 2-6)
Remove the two screws that combine the
front under cover with the leg shield.
Remove the front under cover.
Bolt
LEG SHIELD REMOVAL
Remove the front cover. ( 2-4)
Remove the side cover. ( 2-6)
Remover the met-in box and carrier. ( 2-6)
Remove the body cover, center cover and rear
fender A together. ( 2-6)
Remove the floor board. ( 2-7)
Remove the front under cover. ( 2-7)
Remove the key molding and fuel tank cap
molding.
Remove the bolt on the leg shield.
Fuel Tank Cap Molding Key Molding
Screws
Remove the screw on the frame that
combining the frame with the leg shield.
Remove the three screws that combine the
reserve water tank with the leg shield.
Remove the leg shield.
Screw
CENTER UNDER COVER REMOVAL
Remove the right and left side cover. ( 2-6)
Remove the four bolts on the center under
cover.
Bolts
2-8
