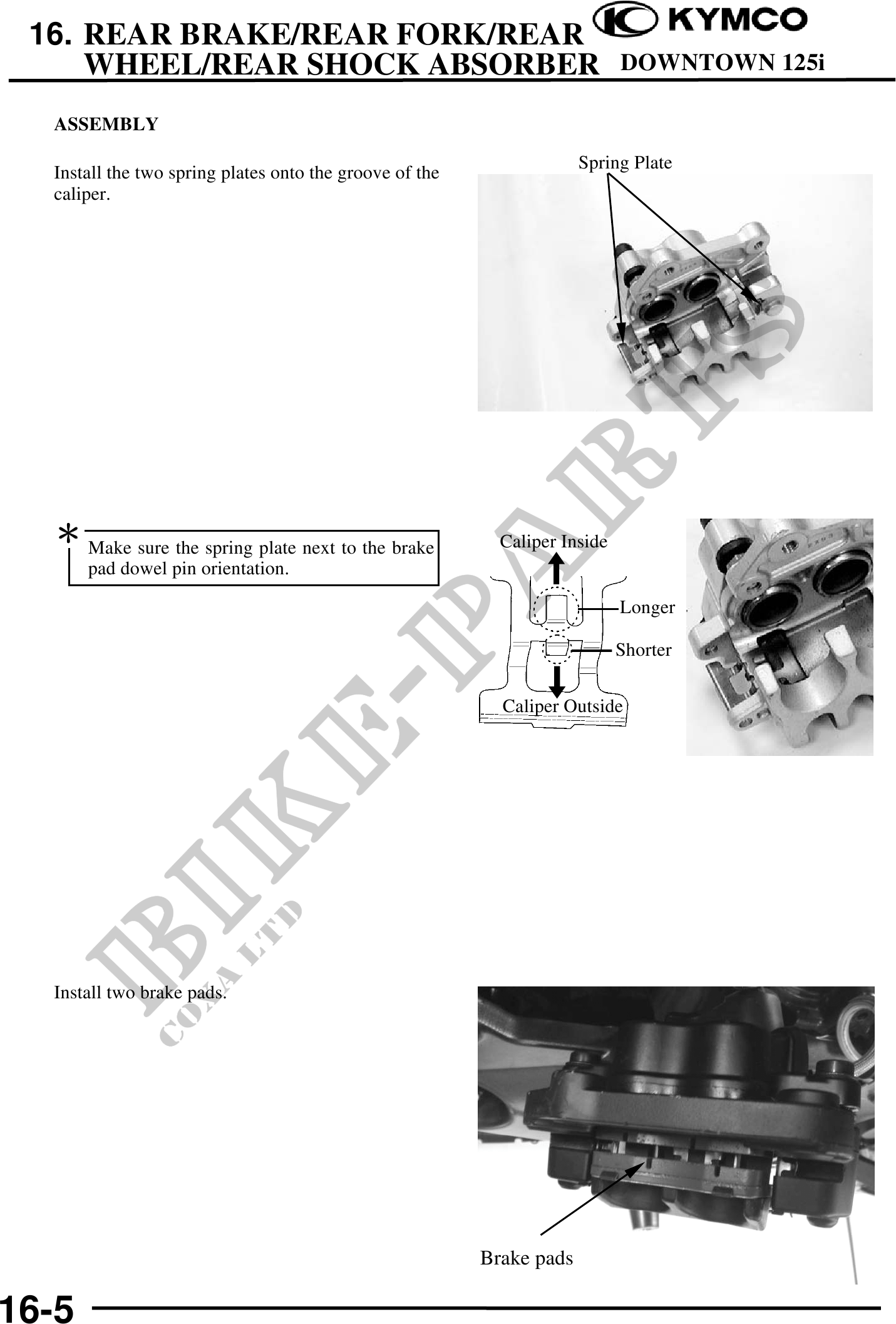

           16. REAR BRAKE/REAR FORK/REAR
     WHEEL/REAR SHOCK ABSORBER                                              DOWNTOWN 125i

  ASSEMBLY

                                                                      Spring Plate
  Install the two spring plates onto the groove of the
  caliper.




   Make sure the spring plate next to the brake            Caliper Inside
       pad dowel pin orientation.

                                                                            Longer

                                                                            Shorter

                                                           Caliper Outside




  Install two brake pads.




                                                         Brake pads

16-5
