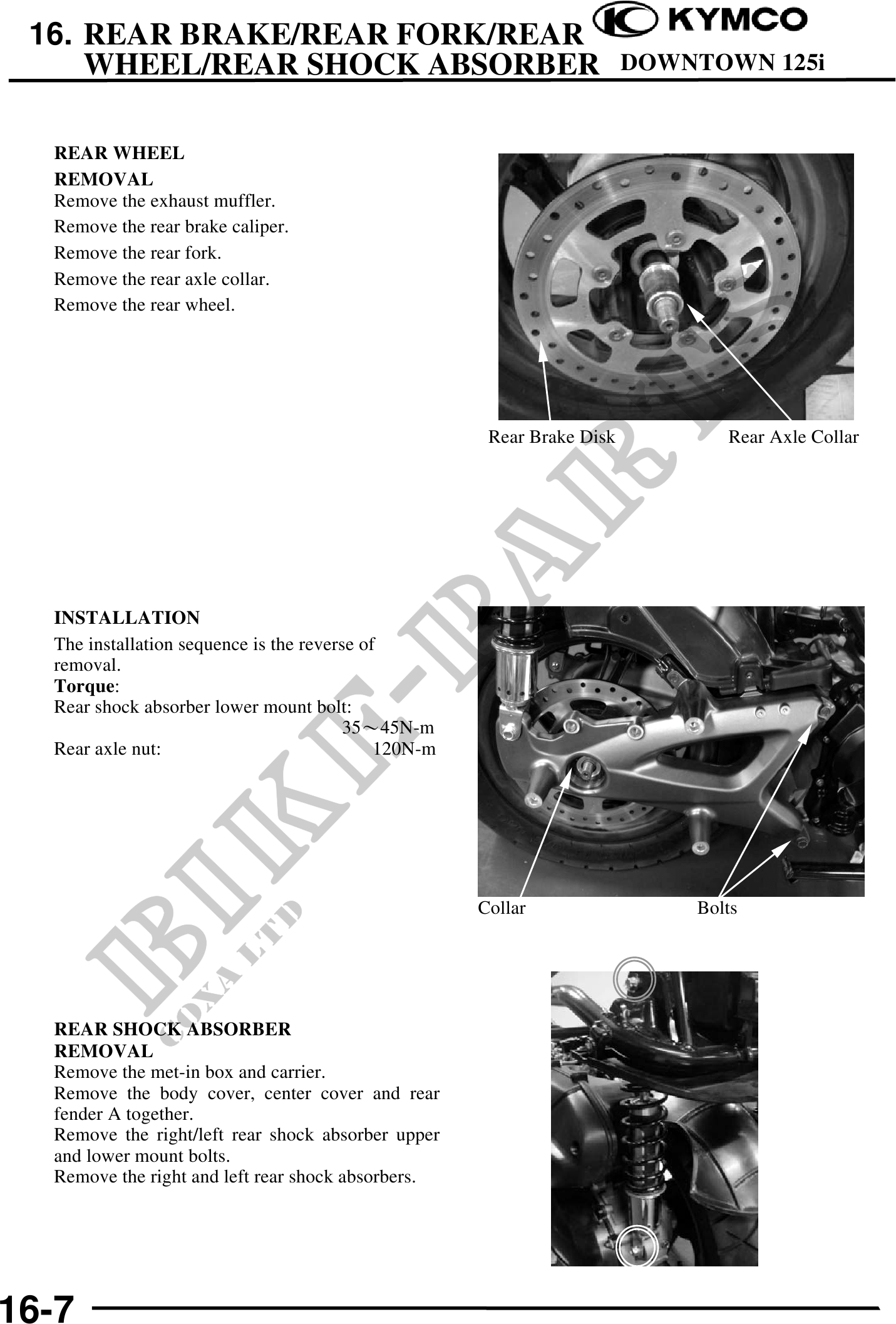

16. REAR BRAKE/REAR FORK/REAR
WHEEL/REAR SHOCK ABSORBER DOWNTOWN 125i
REAR WHEEL
REMOVAL
Remove the exhaust muffler.
Remove the rear brake caliper.
Remove the rear fork.
Remove the rear axle collar.
Remove the rear wheel. INSTALLATION
Install the rear shock absorbers in the reverse
Rear Brake Disk Rear Axle Collar
INSTALLATION
The installation sequence is the reverse of
removal.
Torque:
Rear shock absorber lower mount bolt:
3545N-m
Rear axle nut: 120N-m
Collar Bolts
REAR SHOCK ABSORBER
REMOVAL
Remove the met-in box and carrier.
Remove the body cover, center cover and rear
fender A together.
Remove the right/left rear shock absorber upper
and lower mount bolts.
Remove the right and left rear shock absorbers.
16-7
