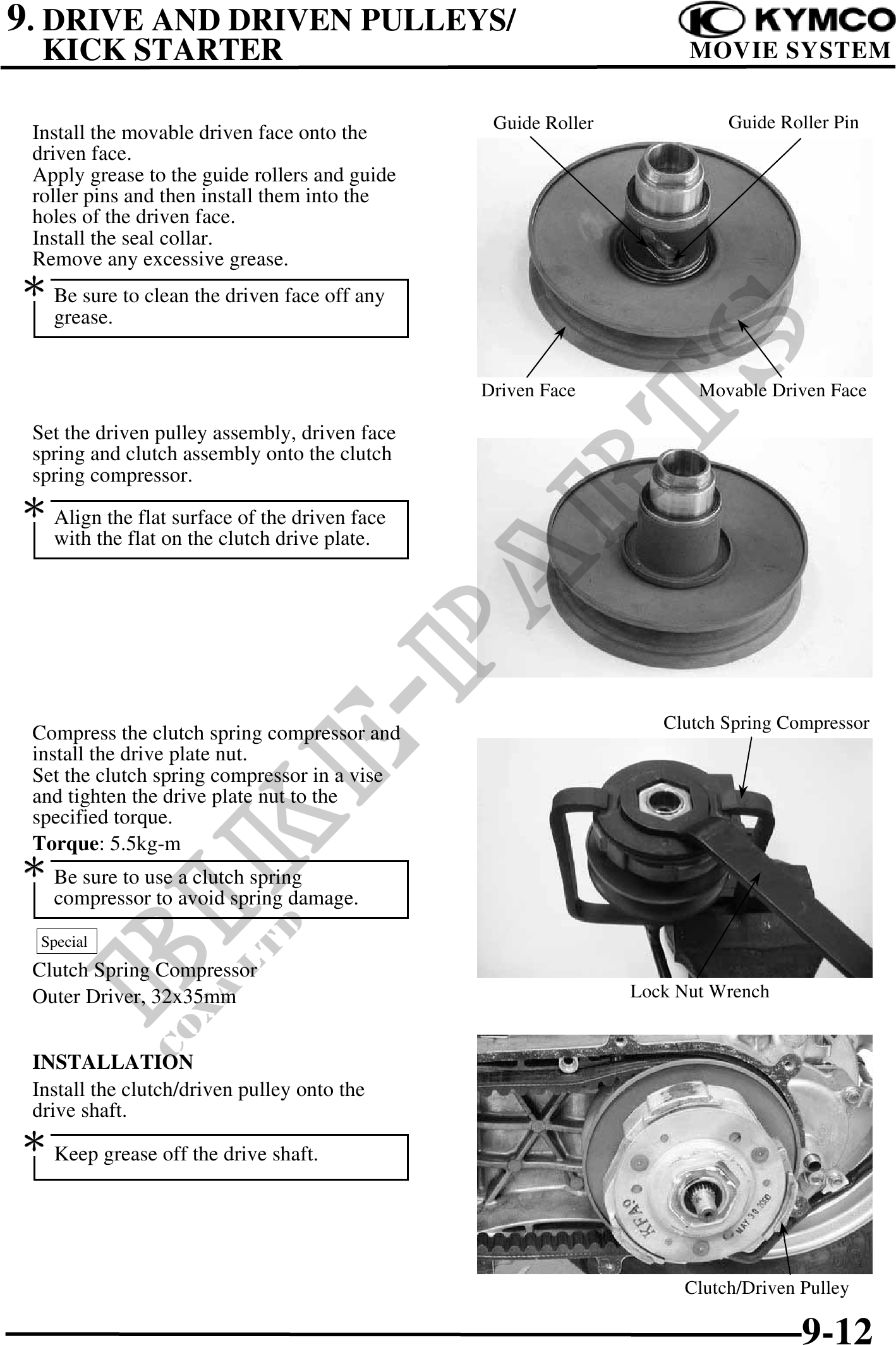

          9. DRIVE AND DRIVEN PULLEYS/
  KICK STARTER                                                       MOVIE SYSTEM

                                                Guide Roller             Guide Roller Pin
 Install the movable driven face onto the
 driven face.
 Apply grease to the guide rollers and guide
 roller pins and then install them into the
 holes of the driven face.
 Install the seal collar.
 Remove any excessive grease.
 Be sure to clean the driven face off any
    grease.


                                               Driven Face            Movable Driven Face

 Set the driven pulley assembly, driven face
 spring and clutch assembly onto the clutch
 spring compressor.
 Align the flat surface of the driven face
    with the flat on the clutch drive plate.




                                                                  Clutch Spring Compressor
 Compress the clutch spring compressor and
 install the drive plate nut.
 Set the clutch spring compressor in a vise
 and tighten the drive plate nut to the
 specified torque.
 Torque: 5.5kg-m
 Be sure to use a clutch spring
    compressor to avoid spring damage.
  Special
 Clutch Spring Compressor
 Outer Driver, 32x35mm                                         Lock Nut Wrench


 INSTALLATION
 Install the clutch/driven pulley onto the
 drive shaft.
 Keep grease off the drive shaft.



                                                                    Clutch/Driven Pulley

                                                                                  9-12
