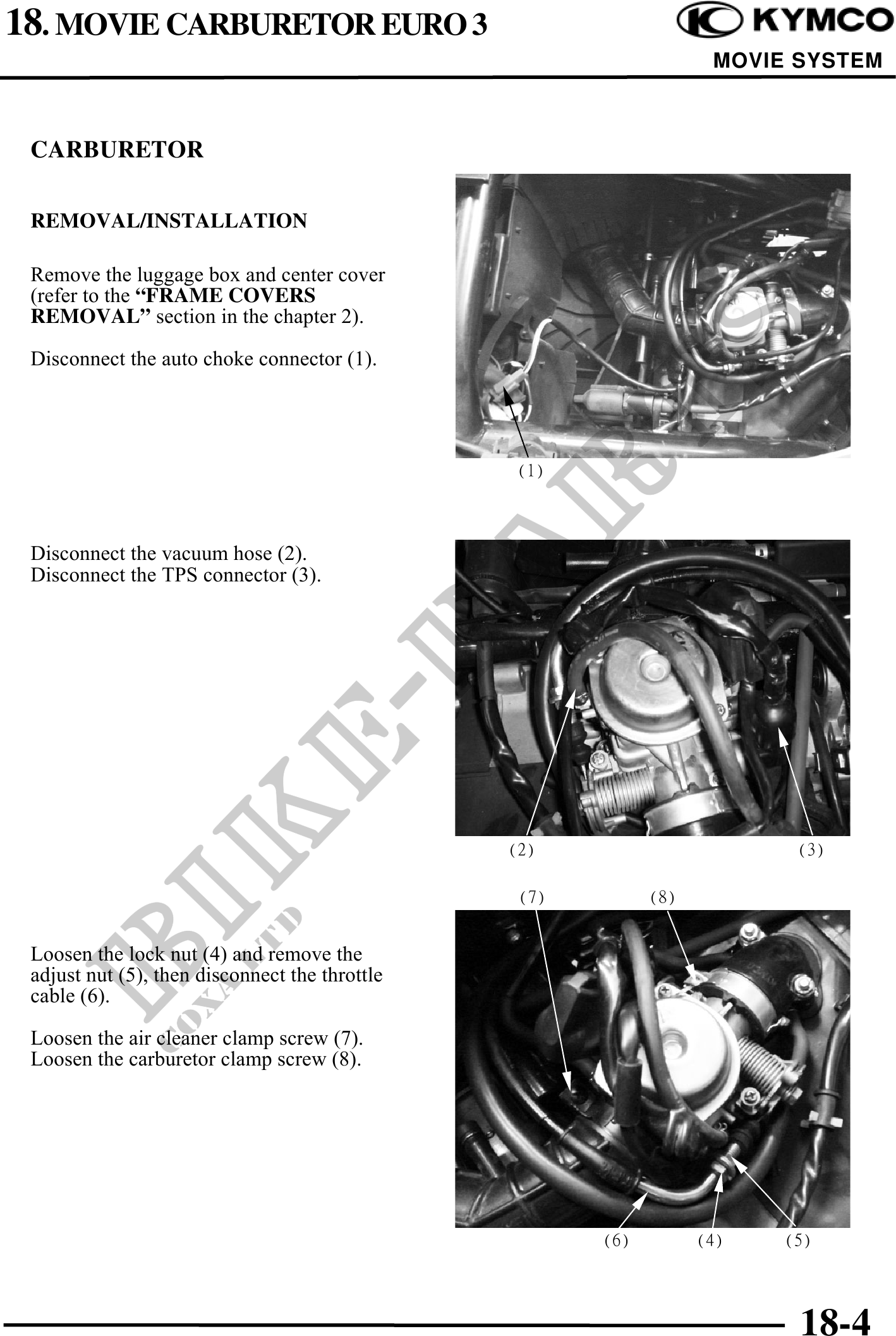

18. MOVIE CARBURETOR EURO 3
MOVIE SYSTEM
CARBURETOR
REMOVAL/INSTALLATION
Remove the luggage box and center cover
(refer to the "FRAME COVERS
REMOVAL" section in the chapter 2).
Disconnect the auto choke connector (1).
(1)
Disconnect the vacuum hose (2).
Disconnect the TPS connector (3).
(2) (3)
(7) (8)
Loosen the lock nut (4) and remove the
adjust nut (5), then disconnect the throttle
cable (6).
Loosen the air cleaner clamp screw (7).
Loosen the carburetor clamp screw (8).
(6) (4) (5)
18-4
