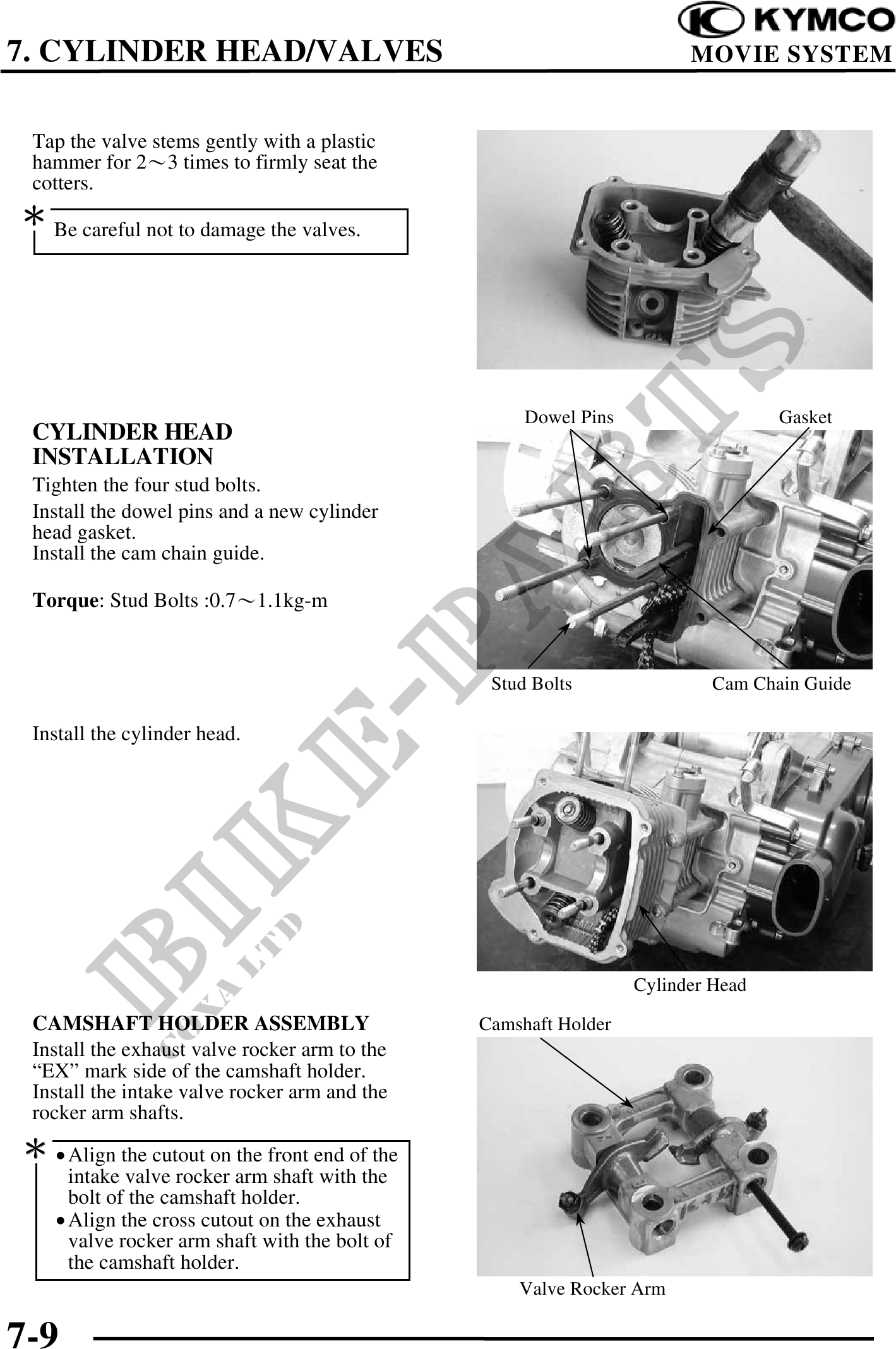

          7. CYLINDER HEAD/VALVES                                                 MOVIE SYSTEM


 Tap the valve stems gently with a plastic
 hammer for 23 times to firmly seat the
 cotters.
 Be careful not to damage the valves.




                                                     Dowel Pins                   Gasket
 CYLINDER HEAD
 INSTALLATION
 Tighten the four stud bolts.
 Install the dowel pins and a new cylinder
 head gasket.
 Install the cam chain guide.

 Torque: Stud Bolts :0.71.1kg-m


                                                 Stud Bolts                Cam Chain Guide

 Install the cylinder head.




                                                                  Cylinder Head

 CAMSHAFT HOLDER ASSEMBLY                       Camshaft Holder
 Install the exhaust valve rocker arm to the
 "EX" mark side of the camshaft holder.
 Install the intake valve rocker arm and the
 rocker arm shafts.
 · Align the cutout on the front end of the
      intake valve rocker arm shaft with the
      bolt of the camshaft holder.
    · Align the cross cutout on the exhaust
      valve rocker arm shaft with the bolt of
      the camshaft holder.
                                                    Valve Rocker Arm
