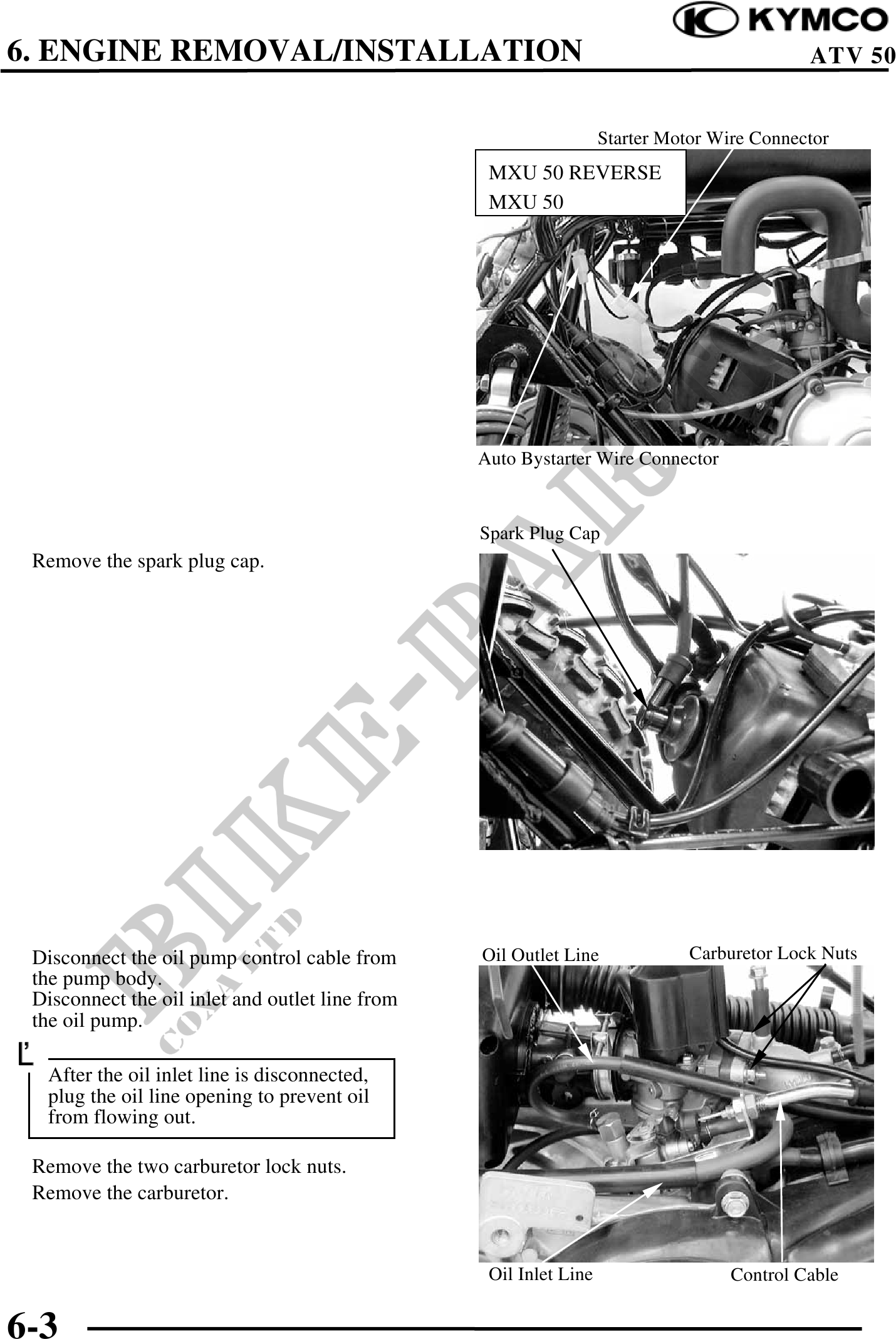

6. ENGINE REMOVAL/INSTALLATION ATV 50
Starter Motor Wire Connector
MXU 50 REVERSE
MXU 50
Auto Bystarter Wire Connector
Spark Plug Cap
Remove the spark plug cap.
Disconnect the oil pump control cable from Oil Outlet Line Carburetor Lock Nuts
the pump body.
Disconnect the oil inlet and outlet line from
the oil pump.
After the oil inlet line is disconnected,
plug the oil line opening to prevent oil
from flowing out.
Remove the two carburetor lock nuts.
Remove the carburetor.
Oil Inlet Line Control Cable
6-3
