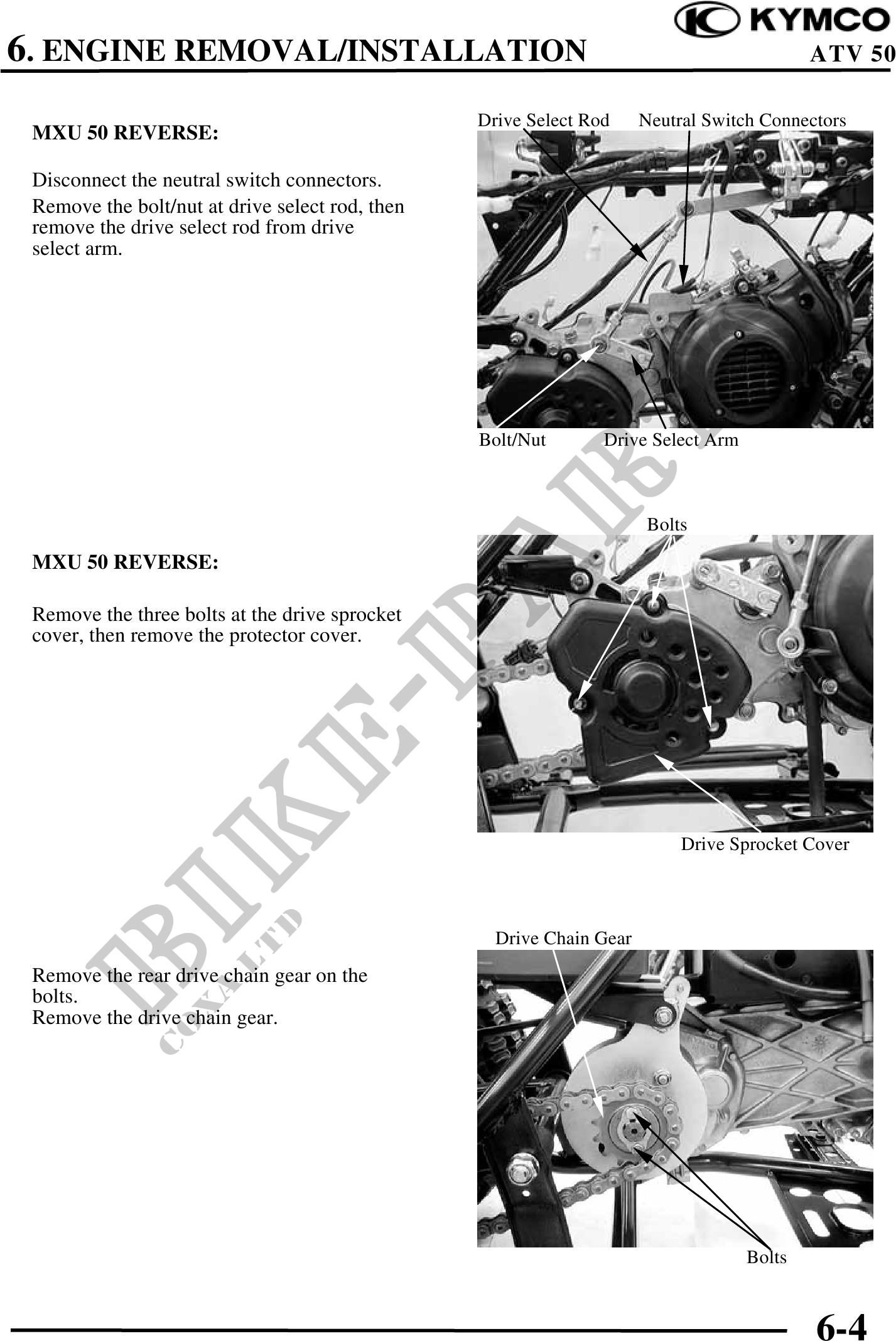

6. ENGINE REMOVAL/INSTALLATION ATV 50
Drive Select Rod Neutral Switch Connectors
MXU 50 REVERSE:
Disconnect the neutral switch connectors.
Remove the bolt/nut at drive select rod, then
remove the drive select rod from drive
select arm.
Bolt/Nut Drive Select Arm
Bolts
MXU 50 REVERSE:
Remove the three bolts at the drive sprocket
cover, then remove the protector cover.
Drive Sprocket Cover
Drive Chain Gear
Remove the rear drive chain gear on the
bolts.
Remove the drive chain gear.
Bolts
6-4
