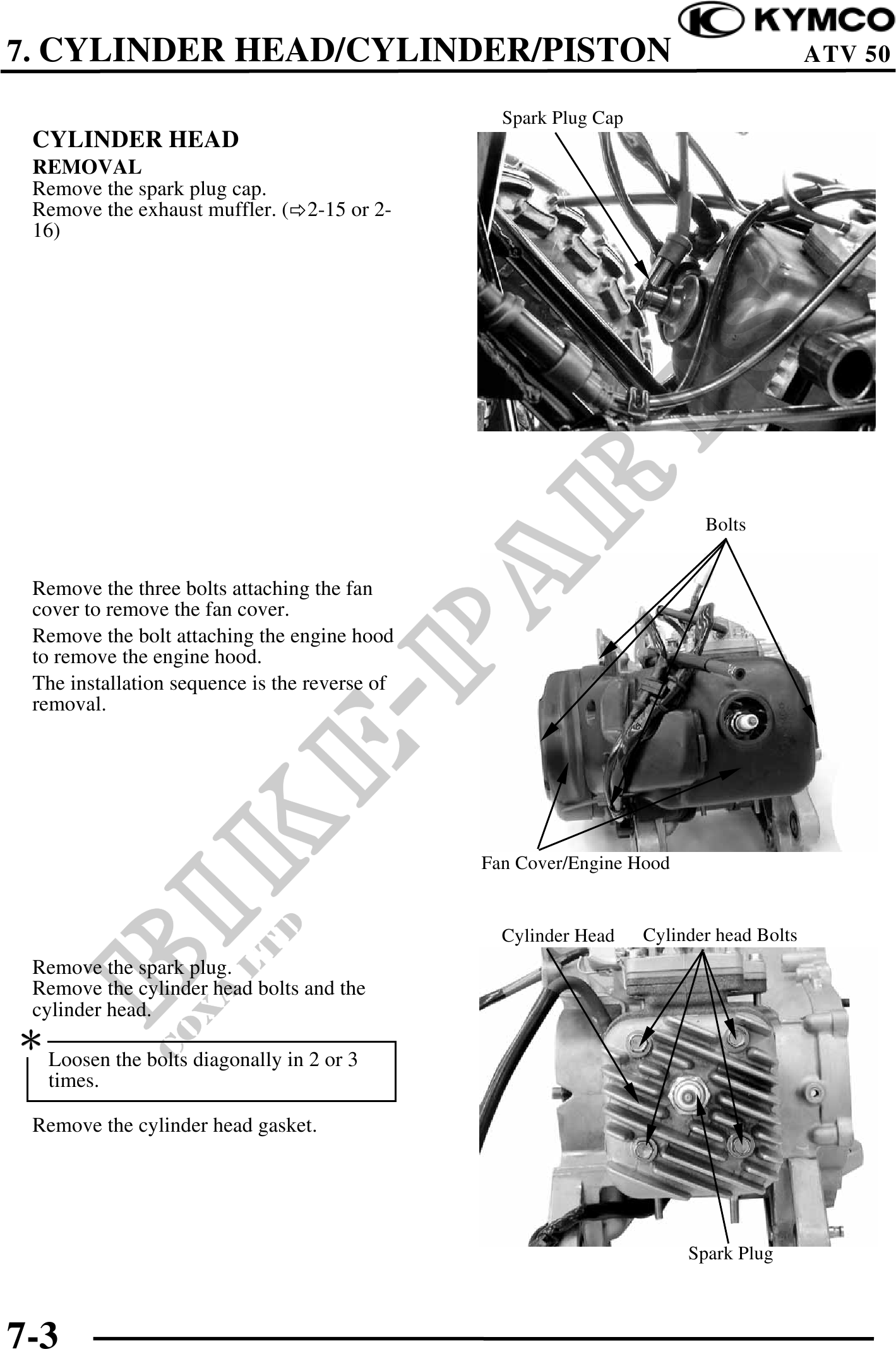

7. CYLINDER HEAD/CYLINDER/PISTON ATV 50
Spark Plug Cap
CYLINDER HEAD
REMOVAL
Remove the spark plug cap.
Remove the exhaust muffler. ( 2-15 or 2-
16)
Bolts
Remove the three bolts attaching the fan
cover to remove the fan cover.
Remove the bolt attaching the engine hood
to remove the engine hood.
The installation sequence is the reverse of
removal.
Fan Cover/Engine Hood
Cylinder Head Cylinder head Bolts
Remove the spark plug.
Remove the cylinder head bolts and the
cylinder head.
Loosen the bolts diagonally in 2 or 3
times.
Remove the cylinder head gasket.
Spark Plug
7-3
