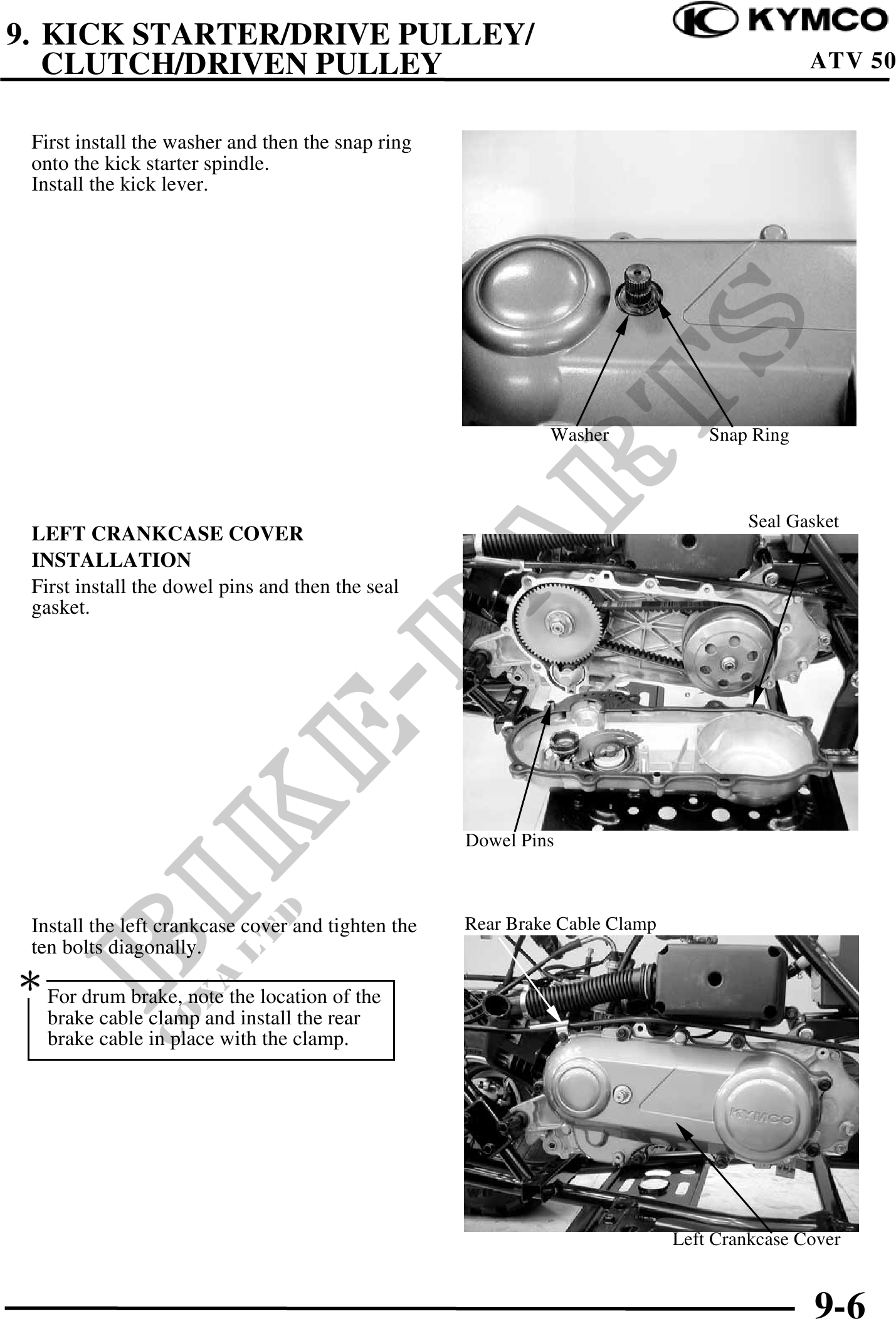

9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY ATV 50
First install the washer and then the snap ring
onto the kick starter spindle.
Install the kick lever.
Washer Snap Ring
Seal Gasket
LEFT CRANKCASE COVER
INSTALLATION
First install the dowel pins and then the seal
gasket.
Dowel Pins
Install the left crankcase cover and tighten the Rear Brake Cable Clamp
ten bolts diagonally.
For drum brake, note the location of the
brake cable clamp and install the rear
brake cable in place with the clamp.
Left Crankcase Cover
9-6
