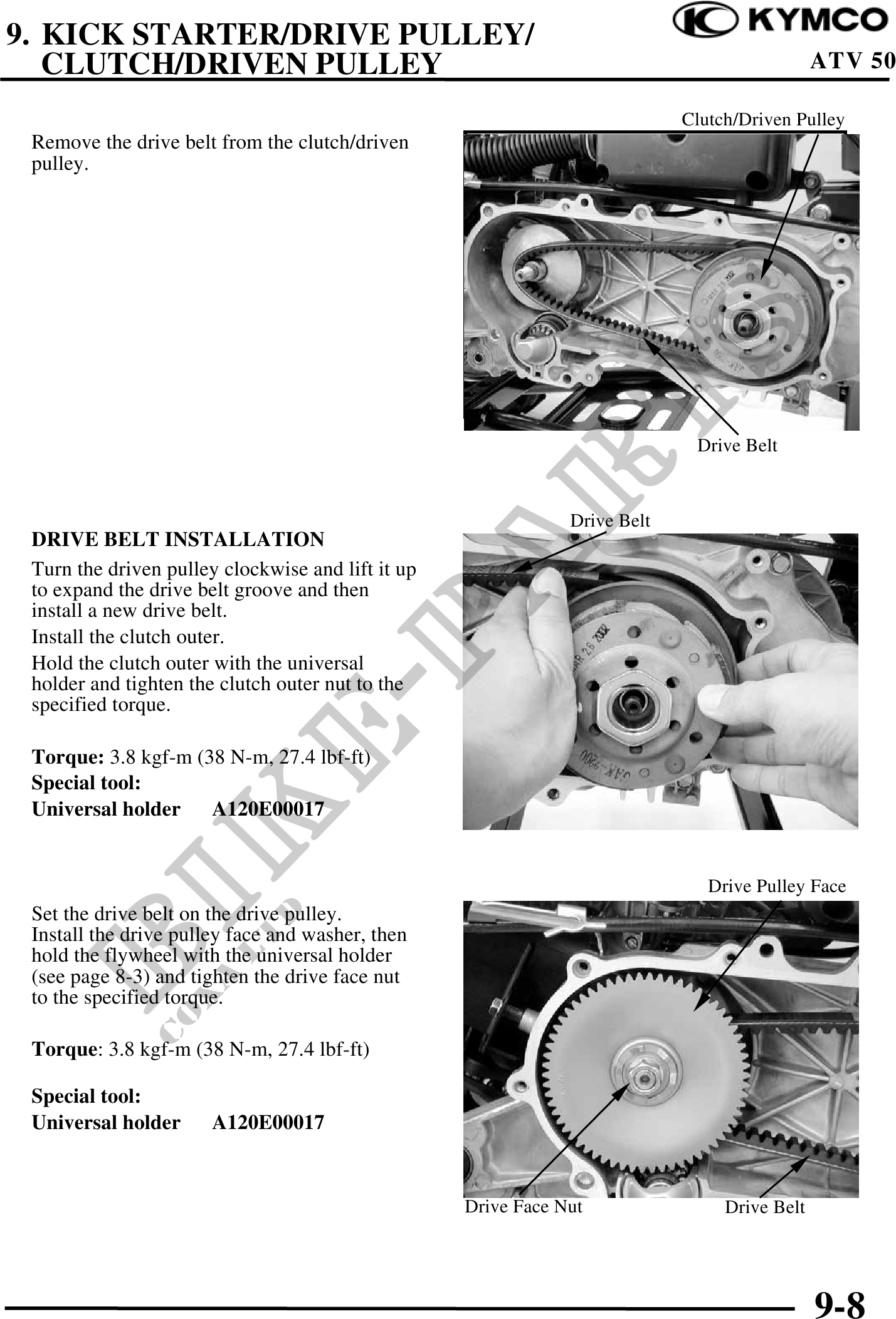

9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY ATV 50
Clutch/Driven Pulley
Remove the drive belt from the clutch/driven
pulley.
Drive Belt
Drive Belt
DRIVE BELT INSTALLATION
Turn the driven pulley clockwise and lift it up
to expand the drive belt groove and then
install a new drive belt.
Install the clutch outer.
Hold the clutch outer with the universal
holder and tighten the clutch outer nut to the
specified torque.
Torque: 3.8 kgf-m (38 N-m, 27.4 lbf-ft)
Special tool:
Universal holder A120E00017
Drive Pulley Face
Set the drive belt on the drive pulley.
Install the drive pulley face and washer, then
hold the flywheel with the universal holder
(see page 8-3) and tighten the drive face nut
to the specified torque.
Torque: 3.8 kgf-m (38 N-m, 27.4 lbf-ft)
Special tool:
Universal holder A120E00017
Drive Face Nut Drive Belt
9-8
