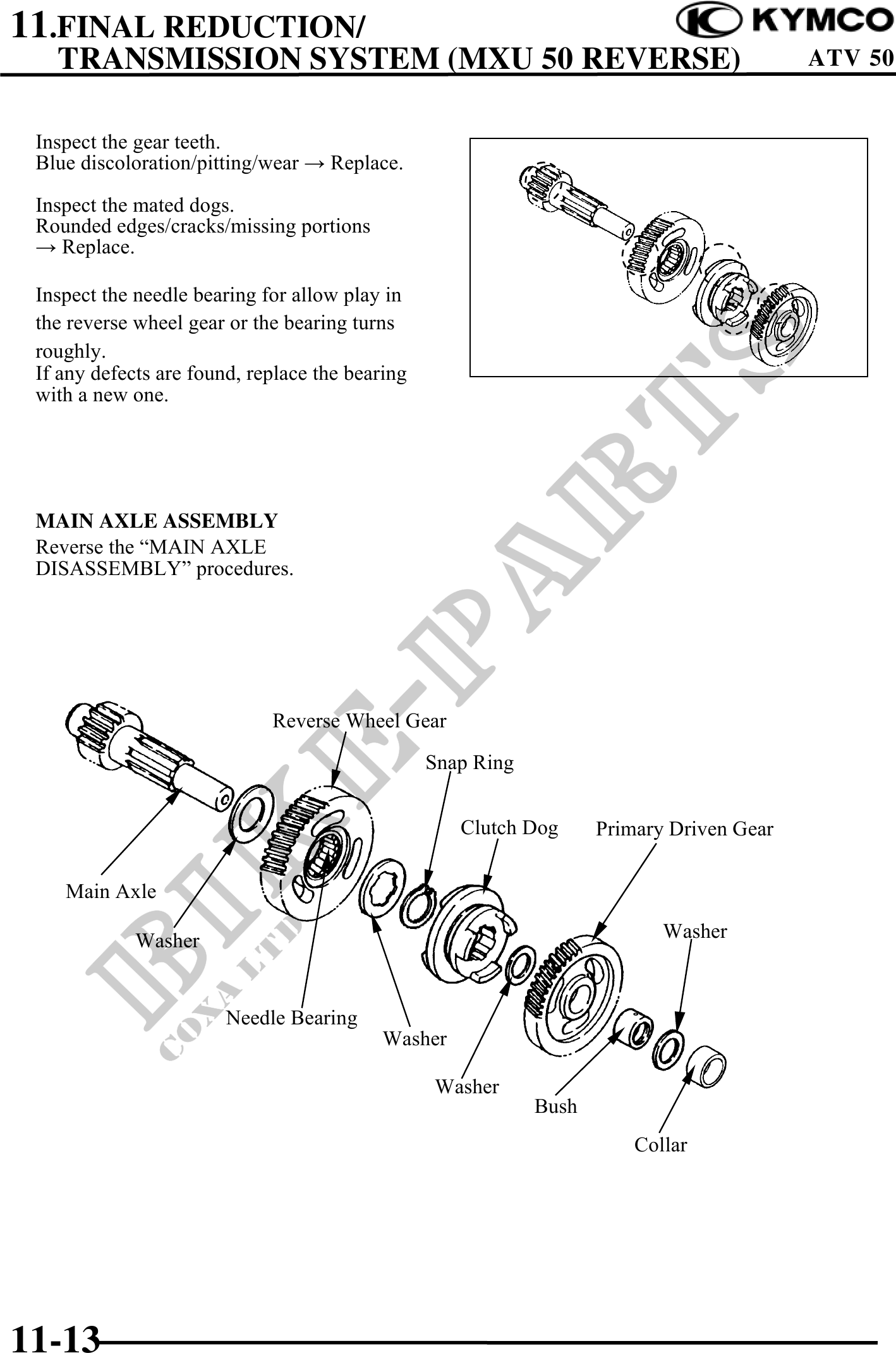

11.FINAL REDUCTION/
TRANSMISSION SYSTEM (MXU 50 REVERSE) ATV 50
Inspect the gear teeth.
Blue discoloration/pitting/wear Replace.
Inspect the mated dogs.
Rounded edges/cracks/missing portions
Replace.
Inspect the needle bearing for allow play in
the reverse wheel gear or the bearing turns
roughly.
If any defects are found, replace the bearing
with a new one.
MAIN AXLE ASSEMBLY
Reverse the "MAIN AXLE
DISASSEMBLY" procedures.
irclip
Reverse Wheel Gear
Snap Ring
Clutch Dog Primary Driven Gear
Main Axle
Washer Washer
Needle Bearing
Washer
Washer
Bush
Collar
11-13
