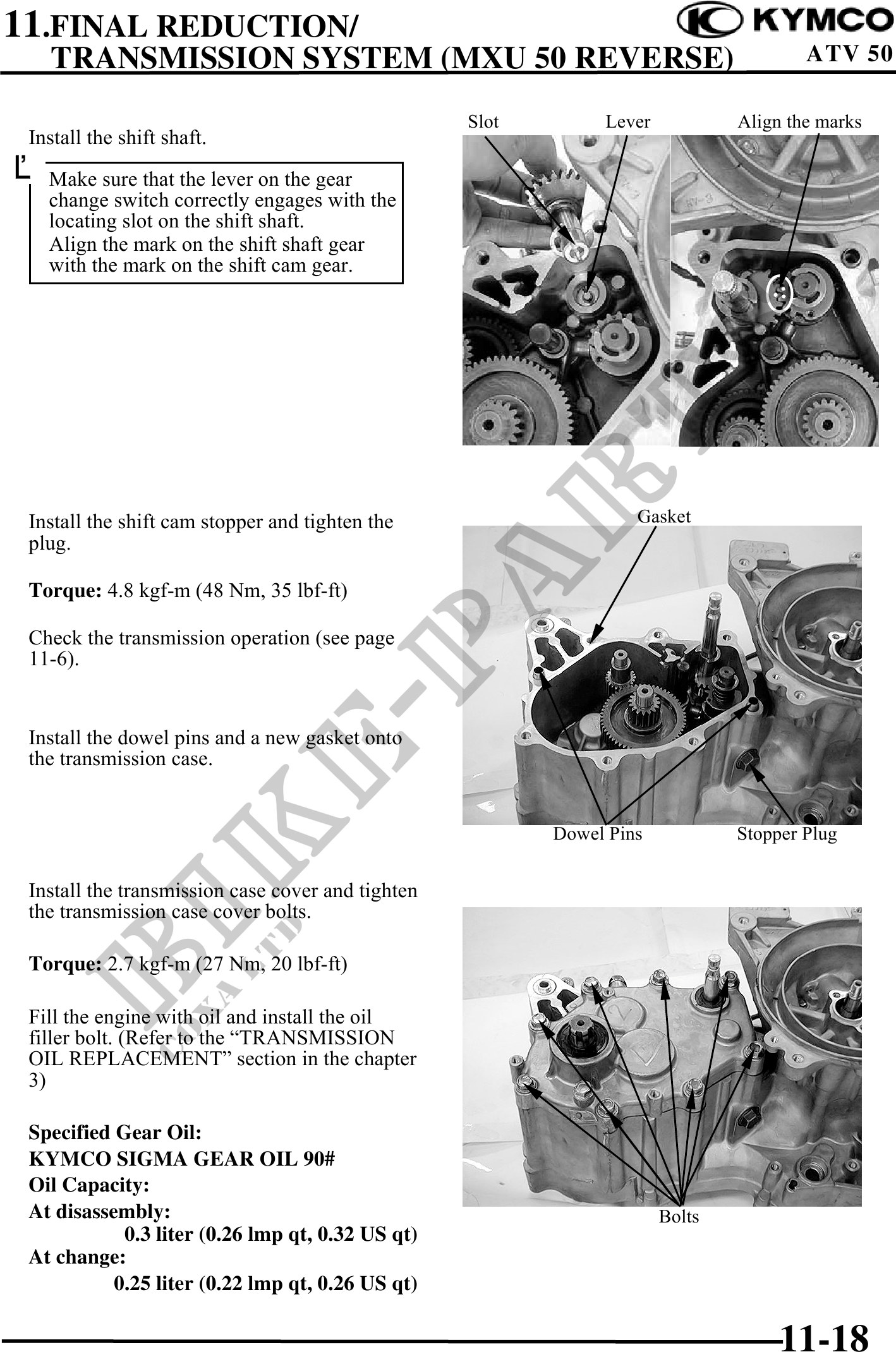

11.FINAL REDUCTION/
TRANSMISSION SYSTEM (MXU 50 REVERSE) ATV 50
Slot Lever Align the marks
Install the shift shaft.
Make sure that the lever on the gear
change switch correctly engages with the
locating slot on the shift shaft.
Align the mark on the shift shaft gear
with the mark on the shift cam gear.
Install the shift cam stopper and tighten the Gasket
plug.
Torque: 4.8 kgf-m (48 Nm, 35 lbf-ft)
Check the transmission operation (see page
11-6).
Install the dowel pins and a new gasket onto
the transmission case.
Dowel Pins Stopper Plug
Install the transmission case cover and tighten
the transmission case cover bolts.
Torque: 2.7 kgf-m (27 Nm, 20 lbf-ft)
Fill the engine with oil and install the oil
filler bolt. (Refer to the "TRANSMISSION
OIL REPLACEMENT" section in the chapter
3)
Specified Gear Oil:
KYMCO SIGMA GEAR OIL 90#
Oil Capacity:
At disassembly: Bolts
0.3 liter (0.26 lmp qt, 0.32 US qt)
At change:
0.25 liter (0.22 lmp qt, 0.26 US qt)
11-18
