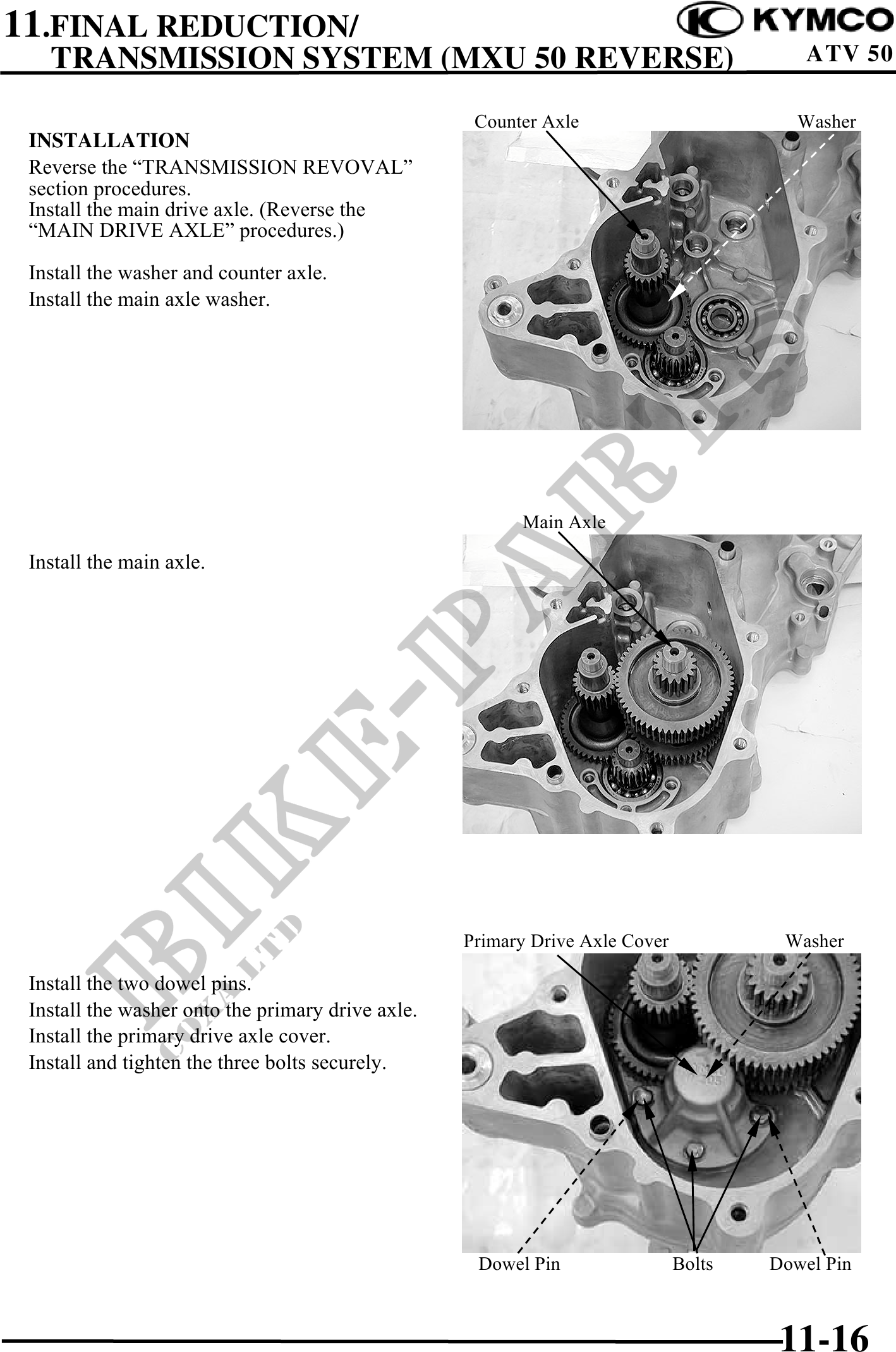

11.FINAL REDUCTION/
TRANSMISSION SYSTEM (MXU 50 REVERSE) ATV 50
Counter Axle Washer
INSTALLATION
Reverse the "TRANSMISSION REVOVAL"
section procedures.
Install the main drive axle. (Reverse the
"MAIN DRIVE AXLE" procedures.)
Install the washer and counter axle.
Install the main axle washer.
Main Axle
Install the main axle.
Primary Drive Axle Cover Washer
Install the two dowel pins.
Install the washer onto the primary drive axle.
Install the primary drive axle cover.
Install and tighten the three bolts securely.
Dowel Pin Bolts Dowel Pin
11-16
