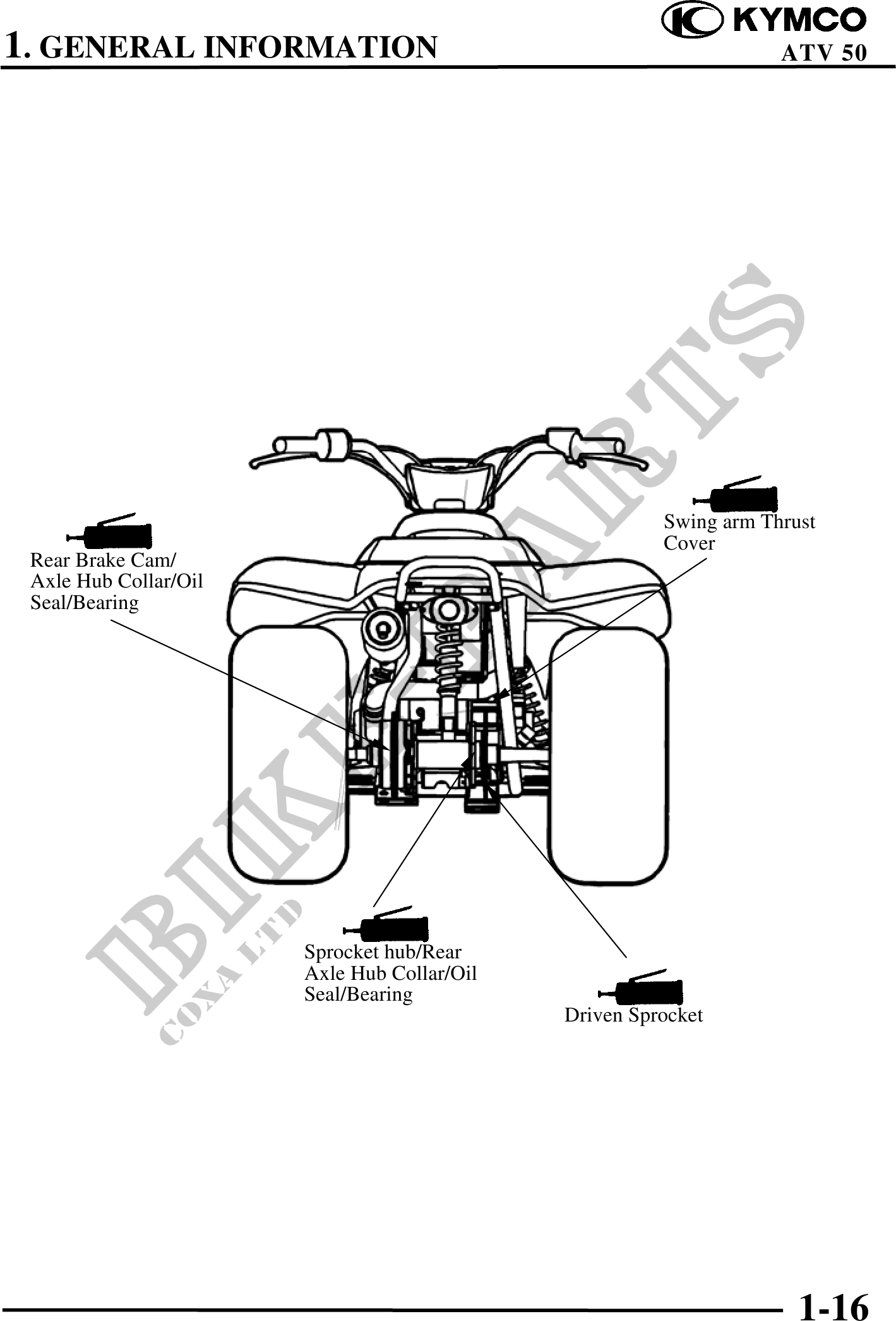

          1. GENERAL INFORMATION                                             ATV 50




                                                       Swing arm Thrust
                                                       Cover
 Rear Brake Cam/
 Axle Hub Collar/Oil
 Seal/Bearing




                       Sprocket hub/Rear
                       Axle Hub Collar/Oil
                       Seal/Bearing
                                             Driven Sprocket




                                                                     1-16
