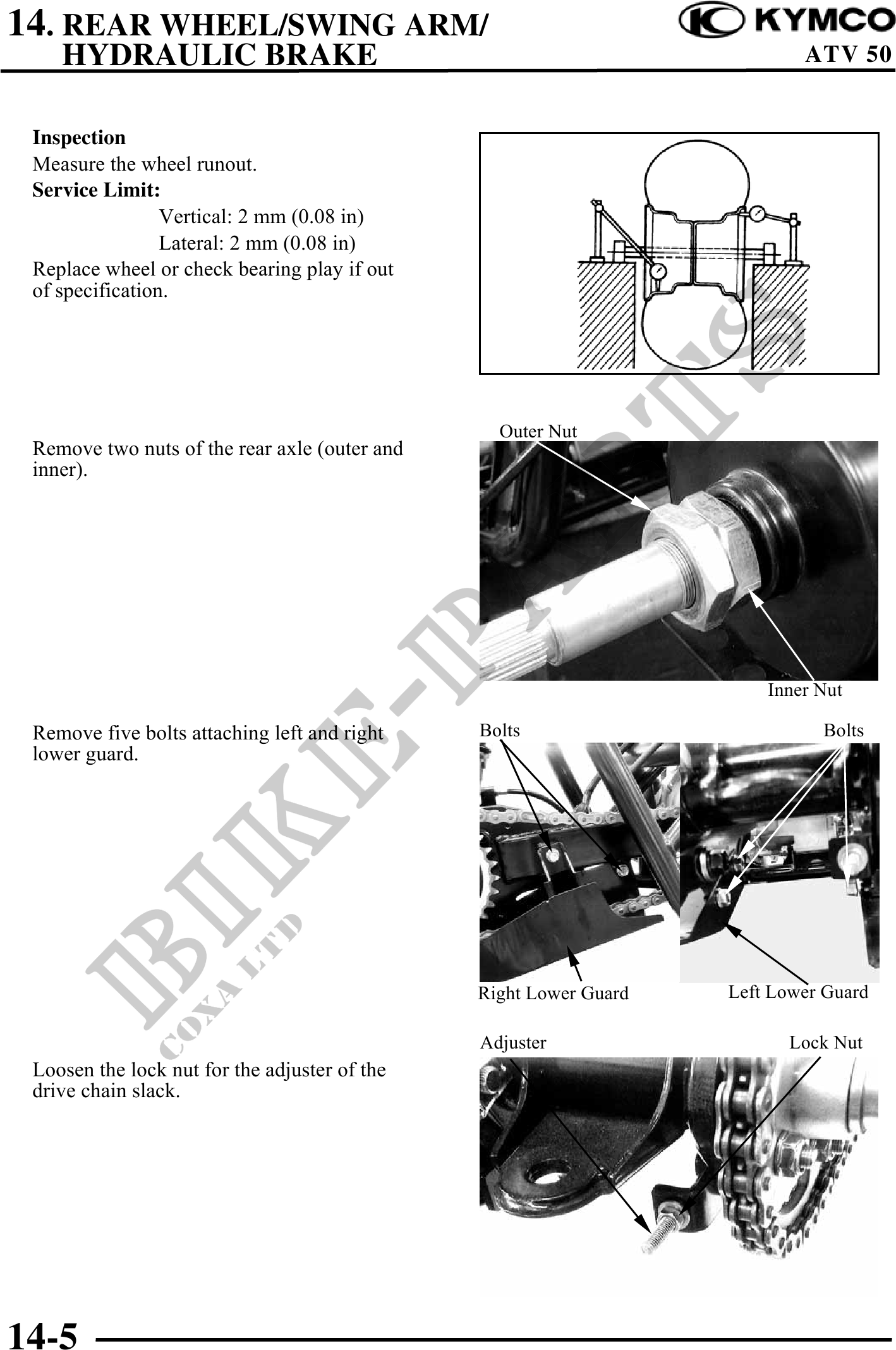

14. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE ATV 50
Inspection
Measure the wheel runout.
Service Limit:
Vertical: 2 mm (0.08 in)
Lateral: 2 mm (0.08 in)
Replace wheel or check bearing play if out
of specification.
Outer Nut
Remove two nuts of the rear axle (outer and
inner).
Inner Nut
Remove five bolts attaching left and right Bolts Bolts
lower guard.
Right Lower Guard Left Lower Guard
Adjuster Lock Nut
Loosen the lock nut for the adjuster of the
drive chain slack.
14-5
