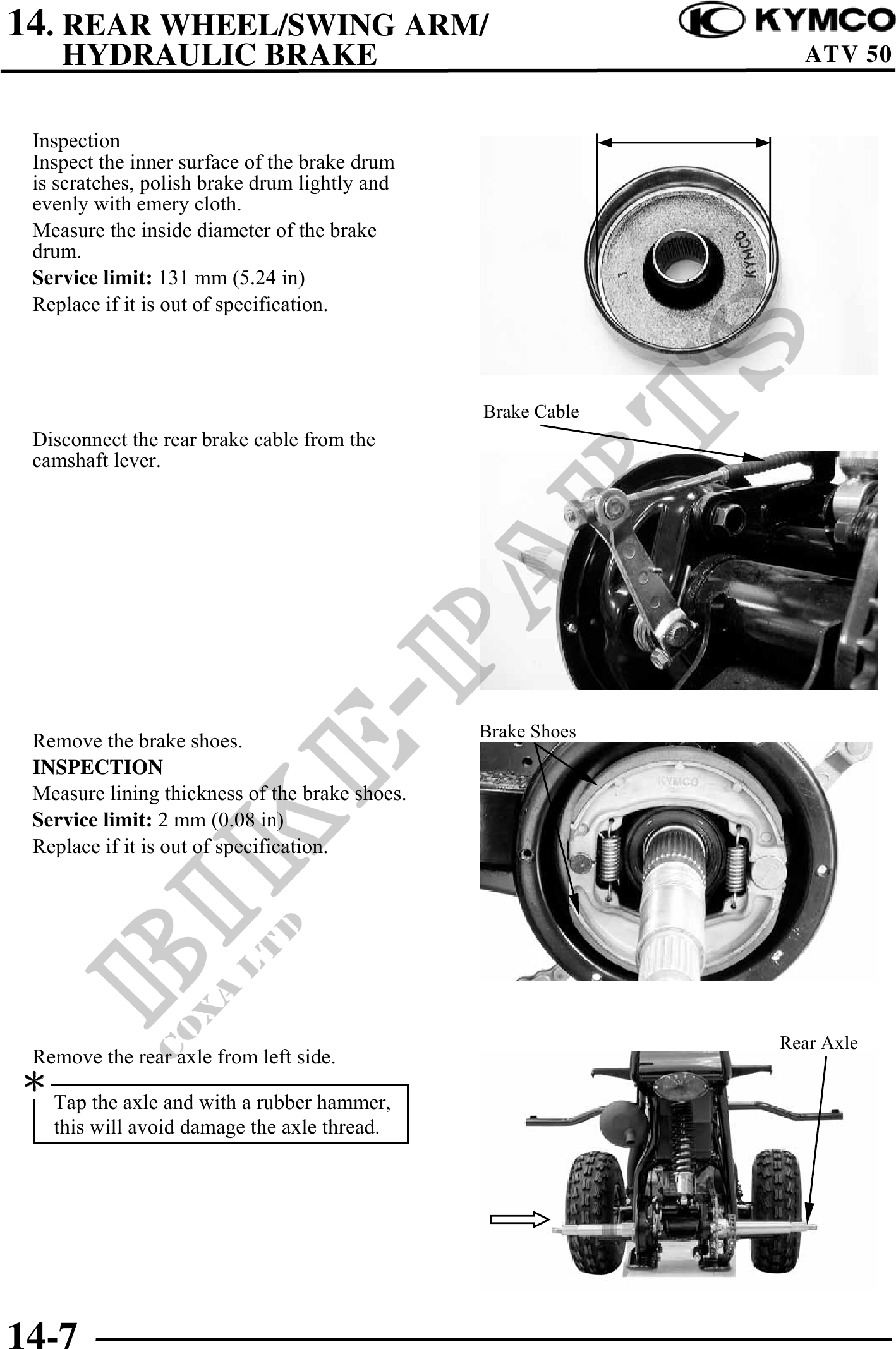

14. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE ATV 50
Inspection
Inspect the inner surface of the brake drum
is scratches, polish brake drum lightly and
evenly with emery cloth.
Measure the inside diameter of the brake
drum.
Service limit: 131 mm (5.24 in)
Replace if it is out of specification.
Brake Cable
Disconnect the rear brake cable from the
camshaft lever.
Brake Shoes
Remove the brake shoes.
INSPECTION
Measure lining thickness of the brake shoes.
Service limit: 2 mm (0.08 in)
Replace if it is out of specification.
Rear Axle
Remove the rear axle from left side.
Tap the axle and with a rubber hammer,
this will avoid damage the axle thread.
14-7
