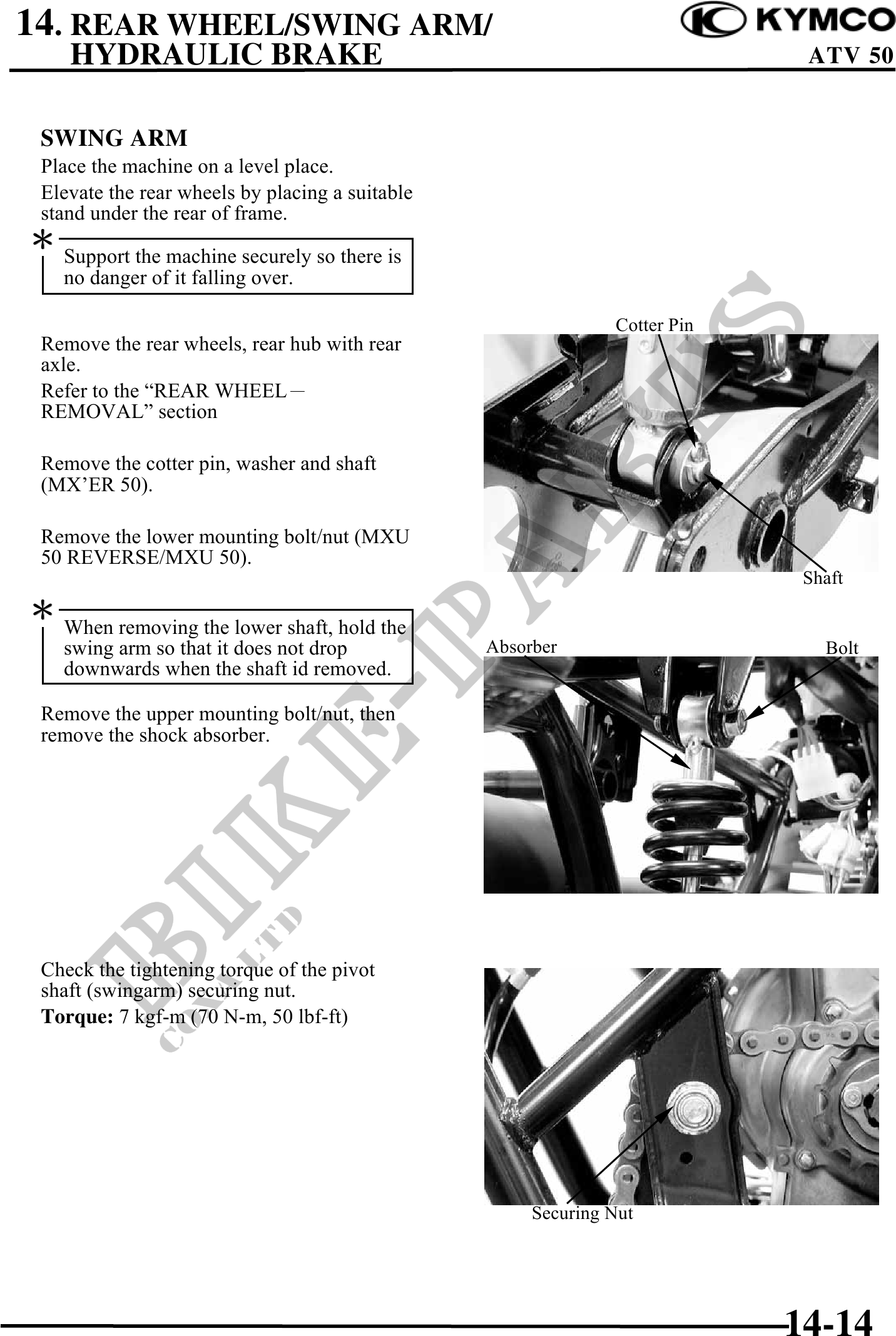

14. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE ATV 50
SWING ARM
Place the machine on a level place.
Elevate the rear wheels by placing a suitable
stand under the rear of frame.
Support the machine securely so there is
no danger of it falling over.
Cotter Pin
Remove the rear wheels, rear hub with rear
axle.
Refer to the "REAR WHEEL
REMOVAL" section
Remove the cotter pin, washer and shaft
(MX'ER 50).
Remove the lower mounting bolt/nut (MXU
50 REVERSE/MXU 50).
Shaft
When removing the lower shaft, hold the
swing arm so that it does not drop Absorber Bolt
downwards when the shaft id removed.
Remove the upper mounting bolt/nut, then
remove the shock absorber.
Check the tightening torque of the pivot
shaft (swingarm) securing nut.
Torque: 7 kgf-m (70 N-m, 50 lbf-ft)
Securing Nut
14-14
