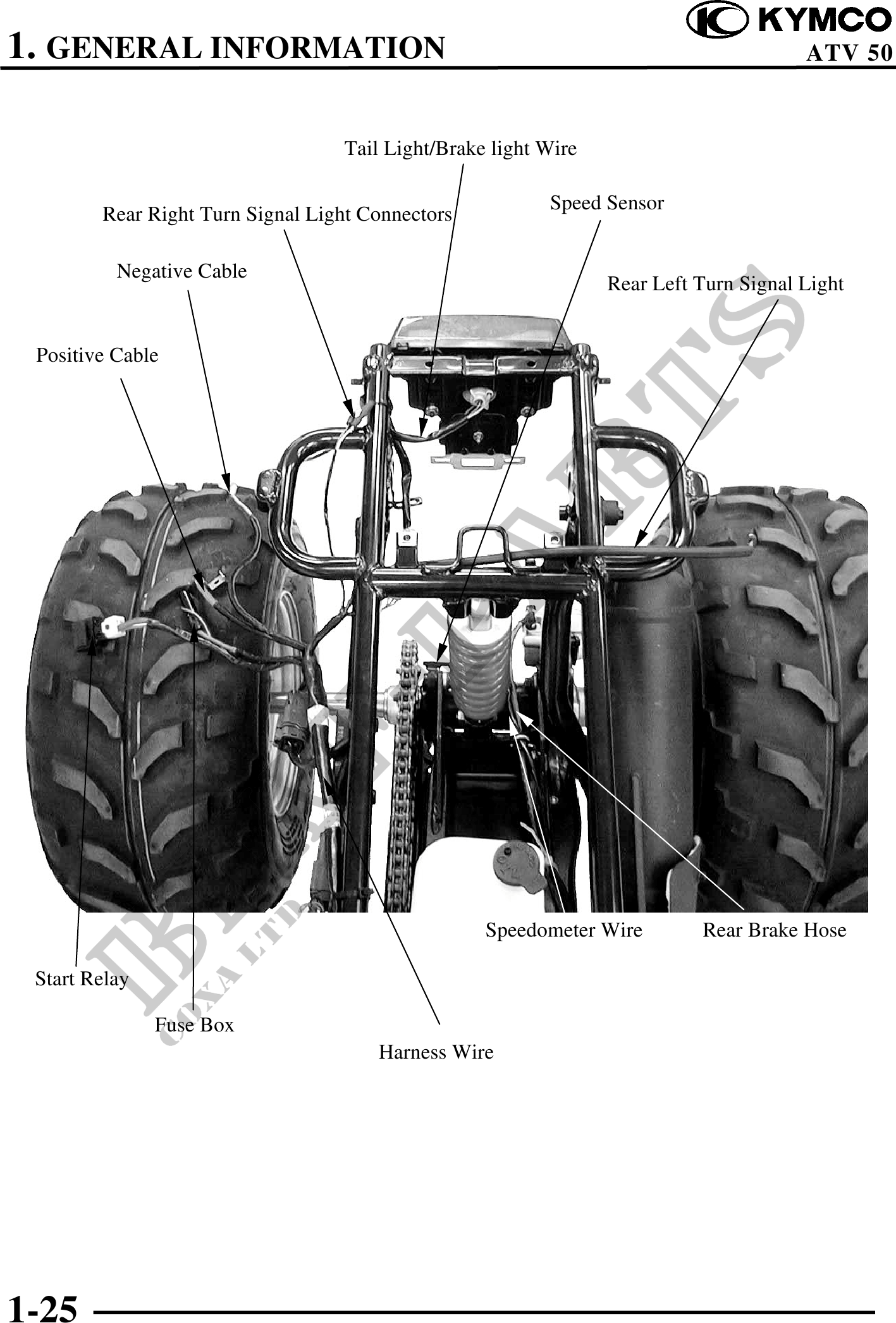

          1. GENERAL INFORMATION                                                                ATV 50


                                  Tail Light/Brake light Wire

                                                         Speed Sensor
        Rear Right Turn Signal Light Connectors

          Negative Cable
                                                                Rear Left Turn Signal Light


 Positive Cable




                                                  Speedometer Wire        Rear Brake Hose

 Start Relay

               Fuse Box
                                      Harness Wire




1-25
