  1. Kymco
  2. Workshop-manual
  3. mxu 50 Workshop-manual
  4. Page 29

mxu 50 Workshop-manual : Page 29

Microfiches
Enter the part number above
Image preview

Page 27

Image preview

Page 28

Image preview
Image preview

Page 30

Image preview

Page 31

1 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265
          1. GENERAL INFORMATION                 ATV 50


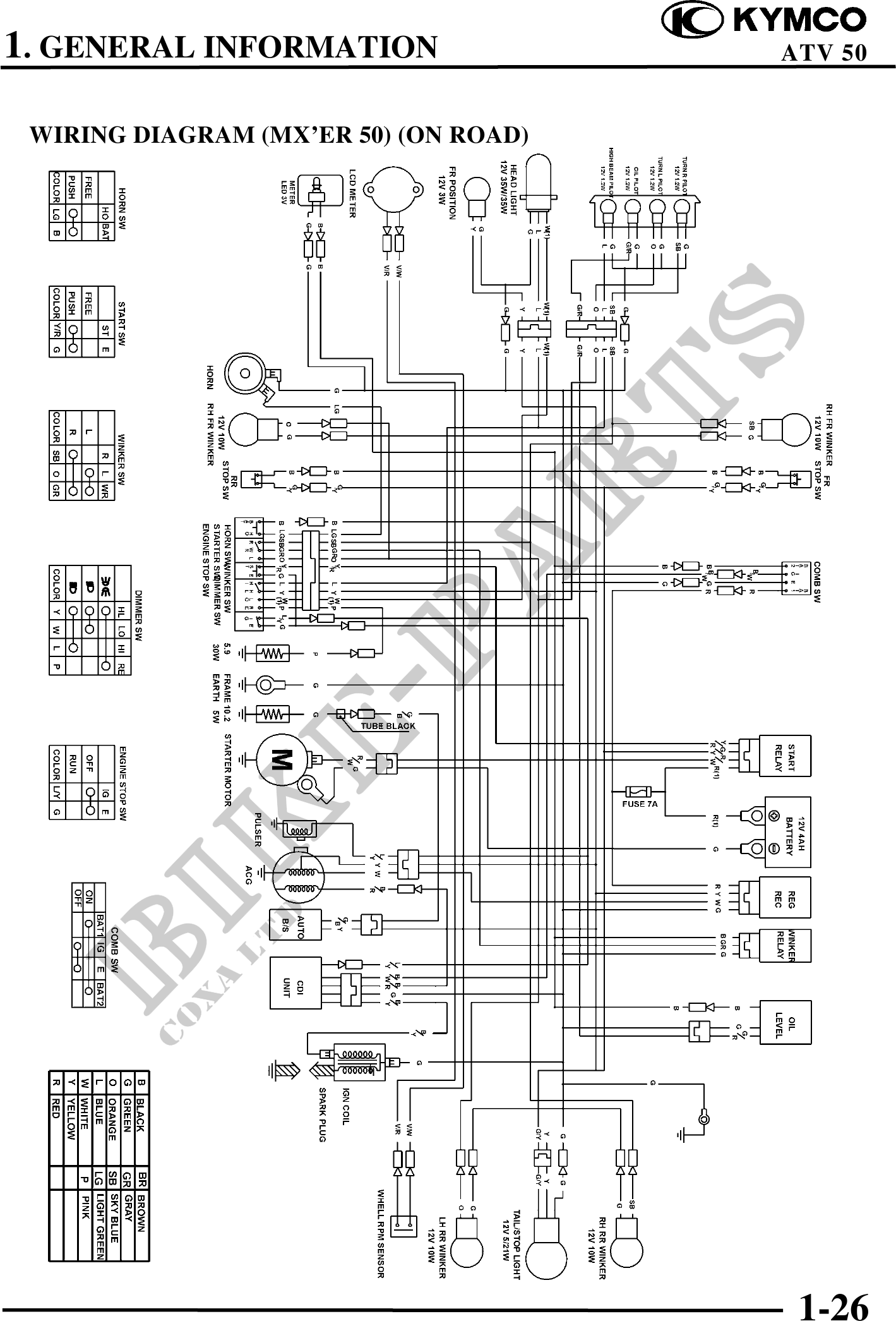

 WIRING DIAGRAM (MX'ER 50) (ON ROAD)
