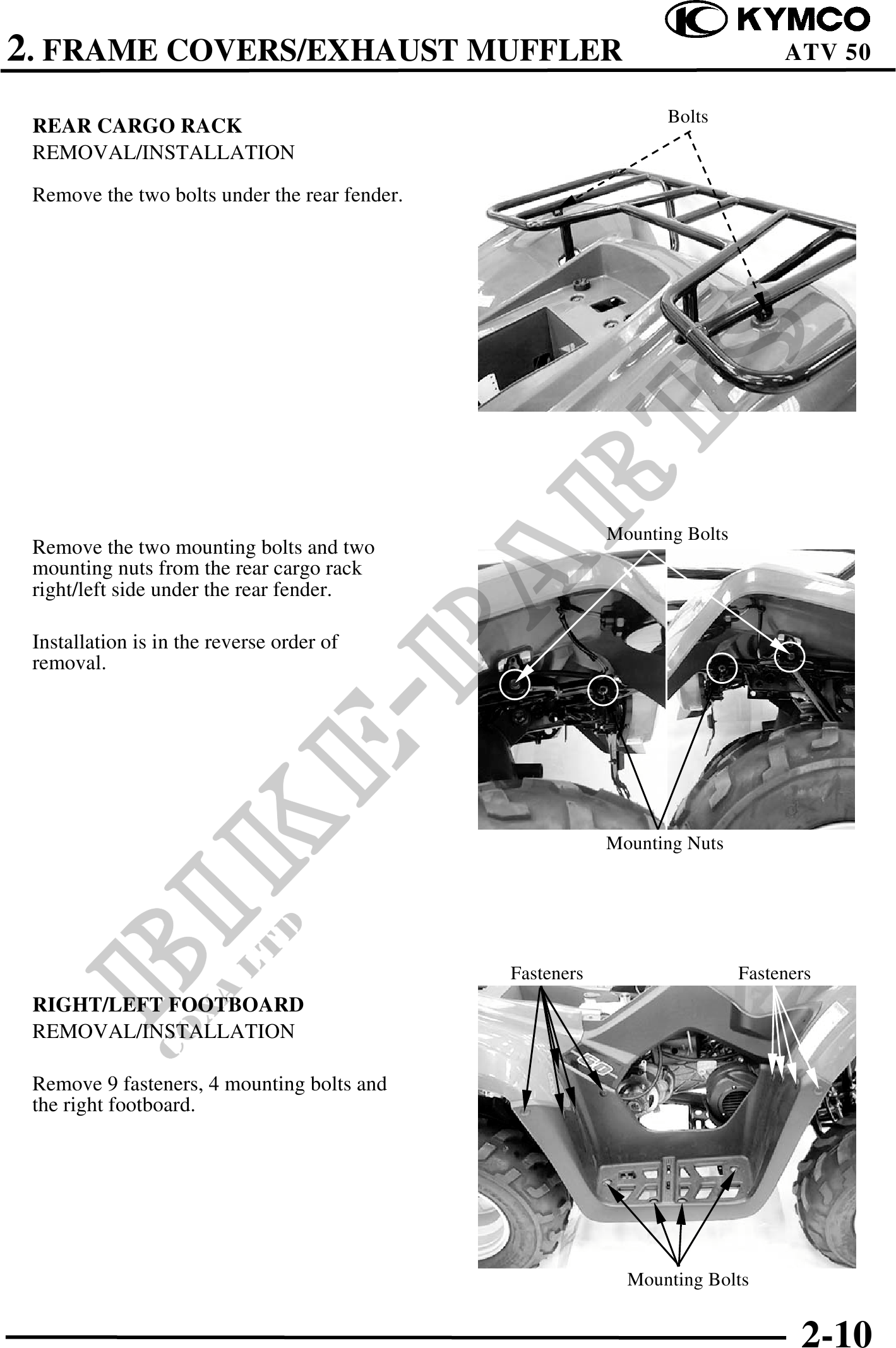

2. FRAME COVERS/EXHAUST MUFFLER ATV 50
Bolts
REAR CARGO RACK
REMOVAL/INSTALLATION
Remove the two bolts under the rear fender.
Mounting Bolts
Remove the two mounting bolts and two
mounting nuts from the rear cargo rack
right/left side under the rear fender.
Installation is in the reverse order of
removal.
Mounting Nuts
Fasteners Fasteners
RIGHT/LEFT FOOTBOARD
REMOVAL/INSTALLATION
Remove 9 fasteners, 4 mounting bolts and
the right footboard.
Mounting Bolts
2-10
