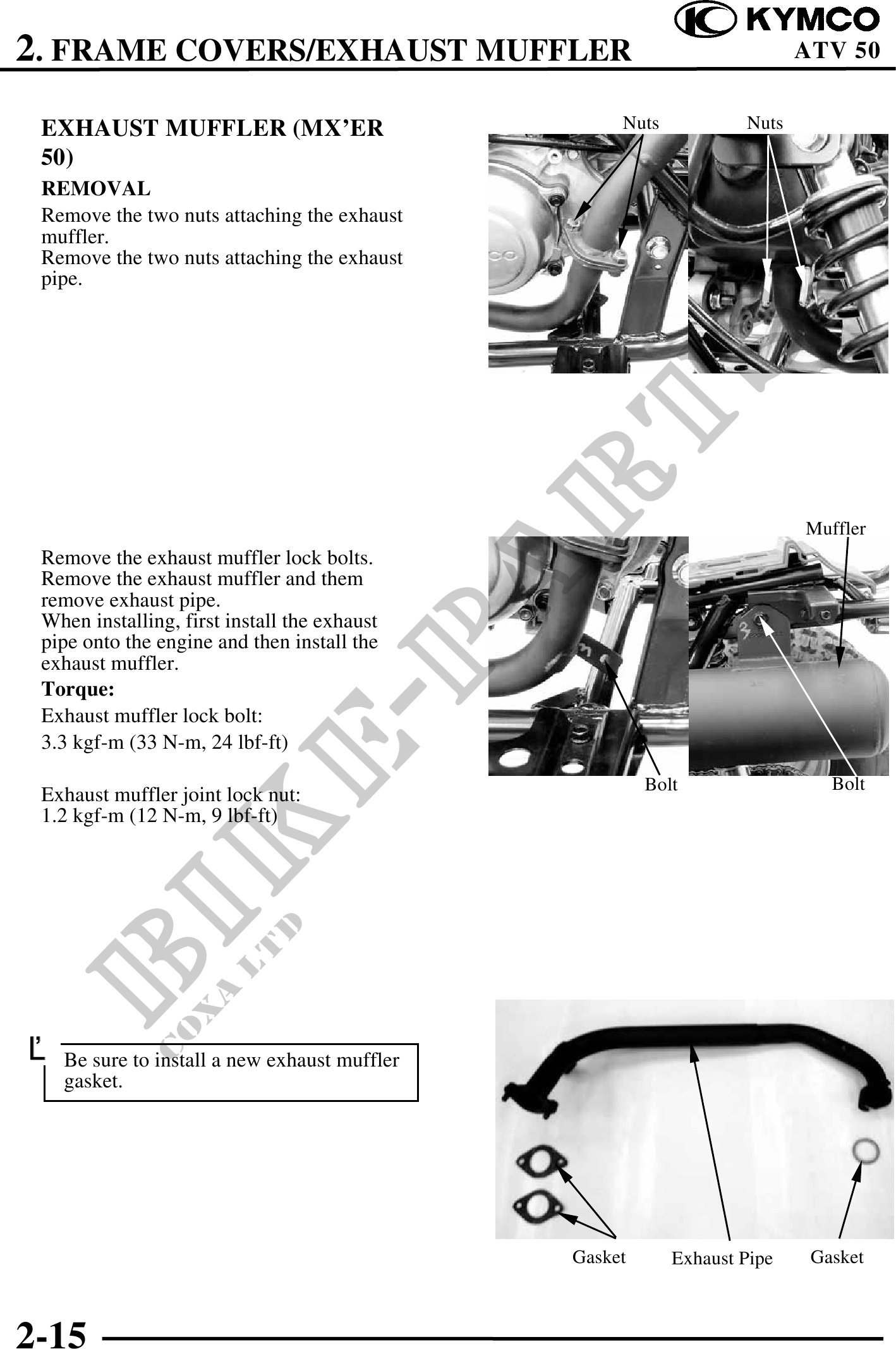

2. FRAME COVERS/EXHAUST MUFFLER ATV 50
EXHAUST MUFFLER (MX'ER Nuts Nuts
50)
REMOVAL
Remove the two nuts attaching the exhaust
muffler.
Remove the two nuts attaching the exhaust
pipe.
Muffler
Remove the exhaust muffler lock bolts.
Remove the exhaust muffler and them
remove exhaust pipe.
When installing, first install the exhaust
pipe onto the engine and then install the
exhaust muffler.
Torque:
Exhaust muffler lock bolt:
3.3 kgf-m (33 N-m, 24 lbf-ft)
Bolt Bolt
Exhaust muffler joint lock nut:
1.2 kgf-m (12 N-m, 9 lbf-ft)
Be sure to install a new exhaust muffler
gasket.
Gasket Exhaust Pipe Gasket
2-15
