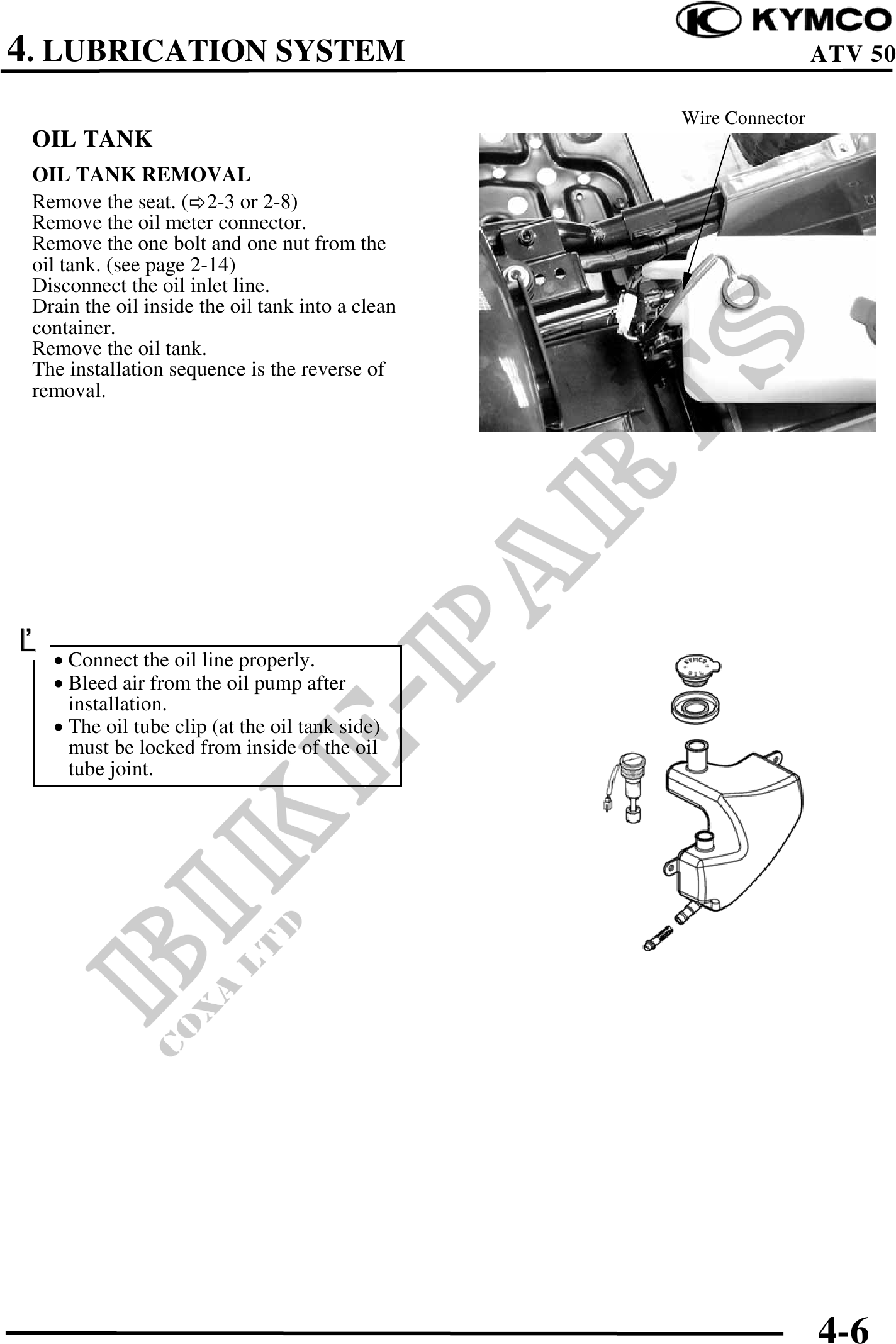

4. LUBRICATION SYSTEM ATV 50
Wire Connector
OIL TANK
OIL TANK REMOVAL
Remove the seat. ( 2-3 or 2-8)
Remove the oil meter connector.
Remove the one bolt and one nut from the
oil tank. (see page 2-14)
Disconnect the oil inlet line.
Drain the oil inside the oil tank into a clean
container.
Remove the oil tank.
The installation sequence is the reverse of
removal. Dowel Pin Pump Cover
· Connect the oil line properly.
· Bleed air from the oil pump after
installation.
· The oil tube clip (at the oil tank side)
must be locked from inside of the oil
tube joint.
4-6
